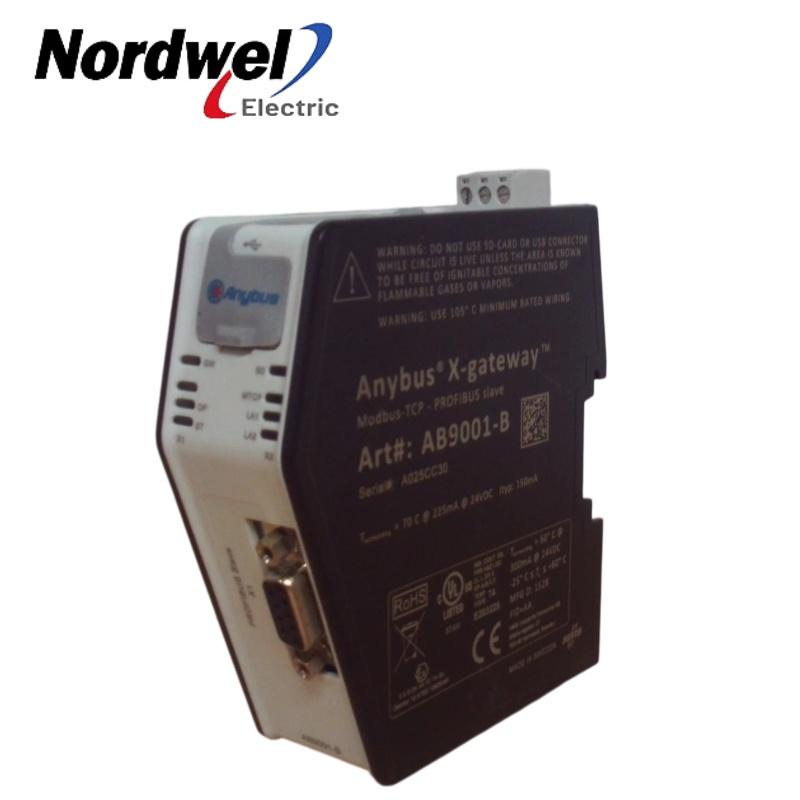

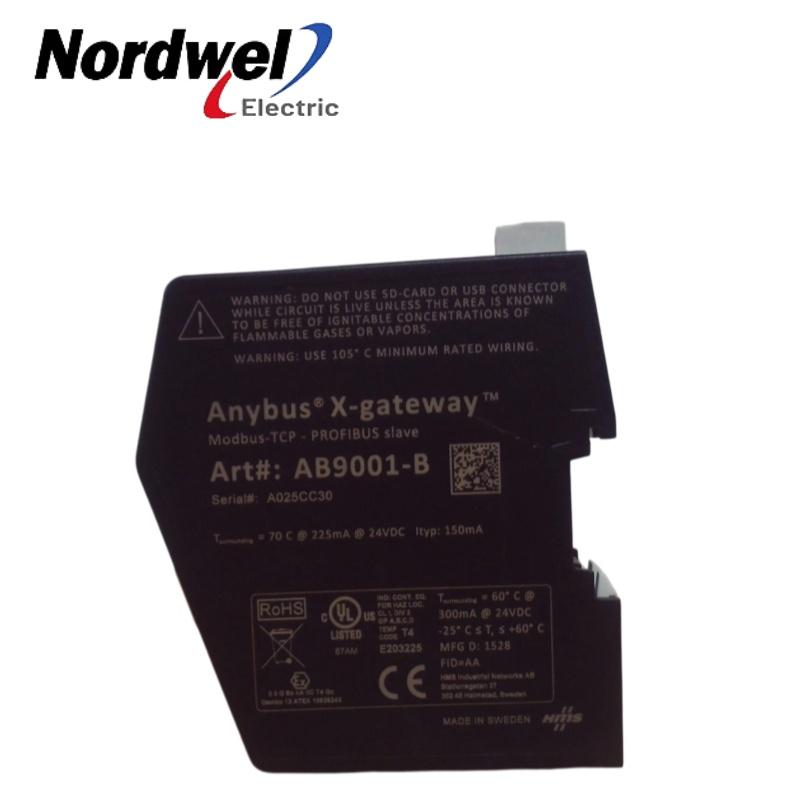

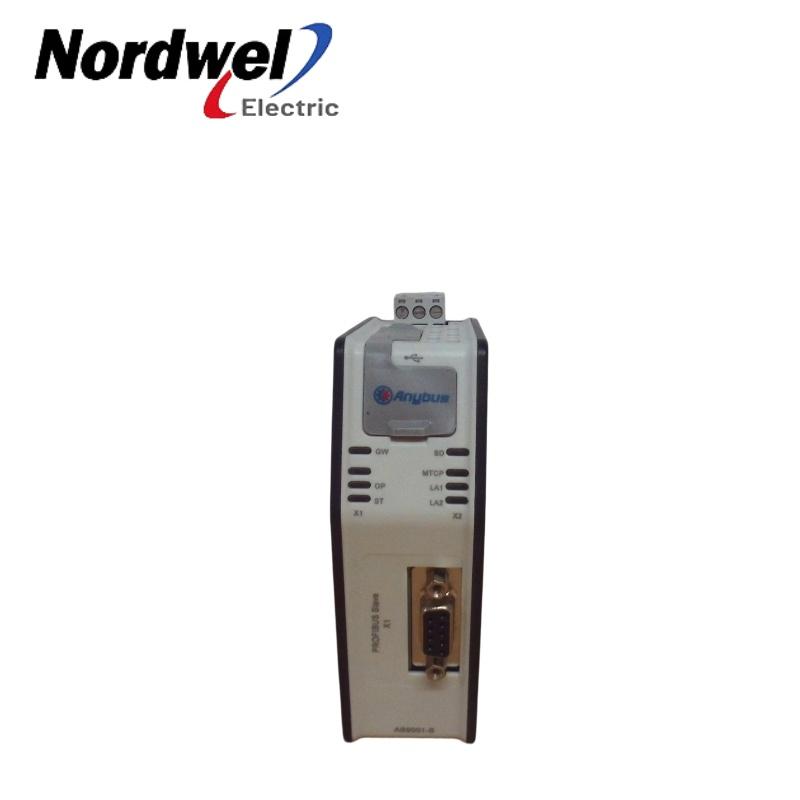

HMS Networks identifies AB9001-B as a legacy Anybus X-gateway that connects Modbus TCP devices to a PROFIBUS control system, with the gateway operating as a Modbus TCP client and PROFIBUS slave.
Brand:
OthersItem NO.:
AB9001-BGoods Stock:
1Part Number:
AB9001-BWeight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:
HMS Networks lists AB9001-B as an Anybus X-gateway for Modbus TCP Client to PROFIBUS Slave communication. The official product page marks it as a legacy product with replacement options available.
| Gateway role | Modbus TCP Client to PROFIBUS Slave |
|---|---|
| Ethernet interface | 2 x RJ45; 10/100 Mbit/s |
| PROFIBUS interface | 9-pin D-sub female connector |
| Data capacity | 256-byte Modbus TCP I/O; 244-byte PROFIBUS I/O |
| Country of origin | Sweden |
| Warranty | With 1 year warranty |
Source: HMS Networks AB9001-B product page and official generated datasheet. Warranty is the Nordwel commercial warranty.
Record the installed gateway and network arrangement before removing or powering down the unit.
Match the saved network project and installed connections before approving any replacement or successor.
PROFIBUS Communicator
AB7001DeviceNet Communicator
AB7002Modbus Plus Communicator
CANopen Communicator
AB7006ControlNet Communicator
AB7007-C AB7007EtherNet/IP Communicator
AC 800M controller reference
ABB PSM0004 2RCA025059A0001Rpower-supply module reference
ABB 1SAP176000R0080 CM5640-2ETHEthernet communication module reference
tachometer-module reference
3500/53 133396-01overspeed-detection system reference
3500/32M 149986-02NCrelay-module reference
DeltaV I/O card reference
KJ4110X1-BA1 12P1867X012DeltaV system card reference
12P2533X042 KJ3222X1-EA1DeltaV I/O card reference
redundancy-module reference
6SL3040-1MA01-0AA0drive control-unit reference
6GK5208-0BA00-2AB2 XB208industrial Ethernet switch reference
industrial control component reference
1768-PA3 B01 PN:97323572CompactLogix power-supply reference
1746-NI4SLC analog input module reference
GE control-board reference
GE CRS-10-MBGE communication component reference
IC693ALG442-EBSeries 90-30 analog I/O module reference
remote I/O reference
PAIH03 51304754-150analog input module reference
51308307-175 / CC-TCNT01controller module reference
Trusted expander-interface reference
T8311 PN:5020-101Trusted expander-interface reference
S4000CH 32425-14safety-system component reference
HMS Networks gateway and Communicator references for configuration review.
PROFIBUS Communicator for serial-device integration.
Published Nordwel pageEtherNet/IP Communicator for serial-device integration.
Published Nordwel pagePROFINET IO Communicator in the Anybus Communicator family.
Published Nordwel pageDeviceNet Communicator reference; not a direct substitute for AB9001-B.
Reference onlyModbus Plus Communicator reference; confirm network role.
Reference onlyModbus TCP Communicator reference; confirm serial-side requirements.
Reference onlyMatch AB9001-B on the nameplate and retain the full saved network configuration.
HMS Networks identifies it as an Anybus X-gateway.
The gateway operates as a Modbus TCP Client and PROFIBUS Slave.
Retain the Modbus transaction list, PROFIBUS address, GSD revision, I/O lengths and byte-order settings.
Confirm the two RJ45 Ethernet ports, 9-pin PROFIBUS connector and installed power connection.
No. Network roles, connector arrangement and saved data mapping must match the approved project.
The official AB9001-B datasheet lists ABC3200-A and ABC3200EX-A as successors.
Confirm cabinet temperature, mounting, power and applicable approvals against the official datasheet.
Provide AB9001-B, quantity, destination, nameplate images and the saved network project.
Use only HMS Networks product information and the approved installed-system documentation for final compatibility decisions.
Published and official family references for gateway and Communicator configuration review.
Connection, configuration and migration items to record before replacing AB9001-B.
Confirm HMS migration mapping and connector requirements.
Confirm environmental and approval requirements.
USB-RS232 configuration adapter reference.
Confirm cable assignment and switch topology.
Confirm address, termination and cable shielding.
Confirm approved supply and polarity.
Retain the configuration project before removal.
Confirm card use and saved configuration procedure.
Use the exact project-approved file revision.
