Part Number:
FS-TSGAS-1624Weight:
0.35kgDimensions:
22.5x7x5.8cmManufacture Year:
Place of Origin:
USACertification:
CO,CQDescription:
HONEYWELL FS-TSGAS-1624 it is a conformally coated, 16-channel, 24V DC Field Termination Assembly
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
HONEYWELL |
|
Part number |
FS-TSGAS-1624 |
|
Description |
HONEYWELL FS-TSGAS-1624 Digital Output Field Termination Assembly |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed FS-TSGAS-1624 in stock!!!
Product Description

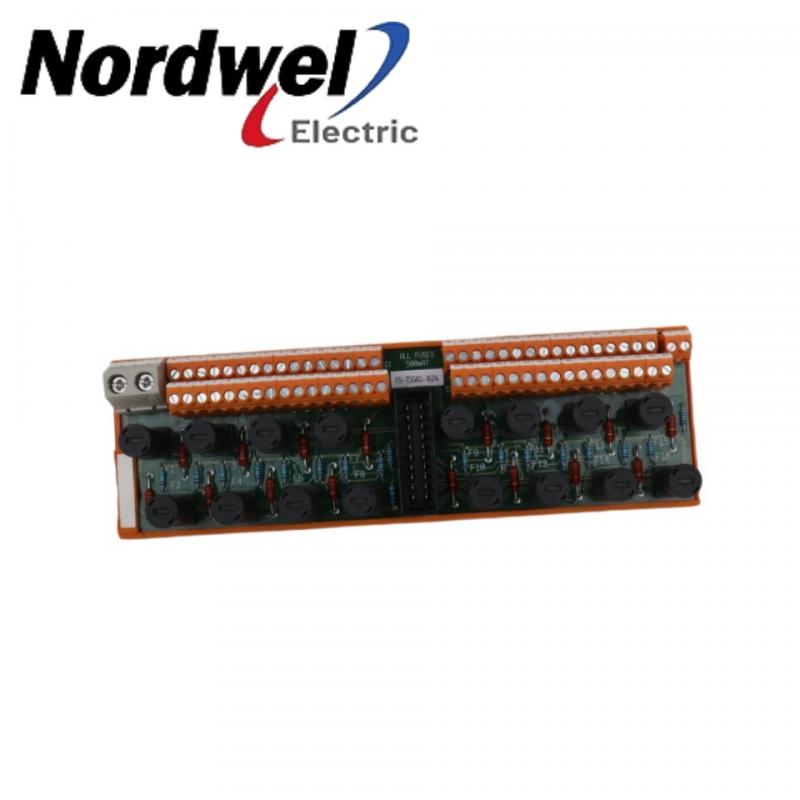

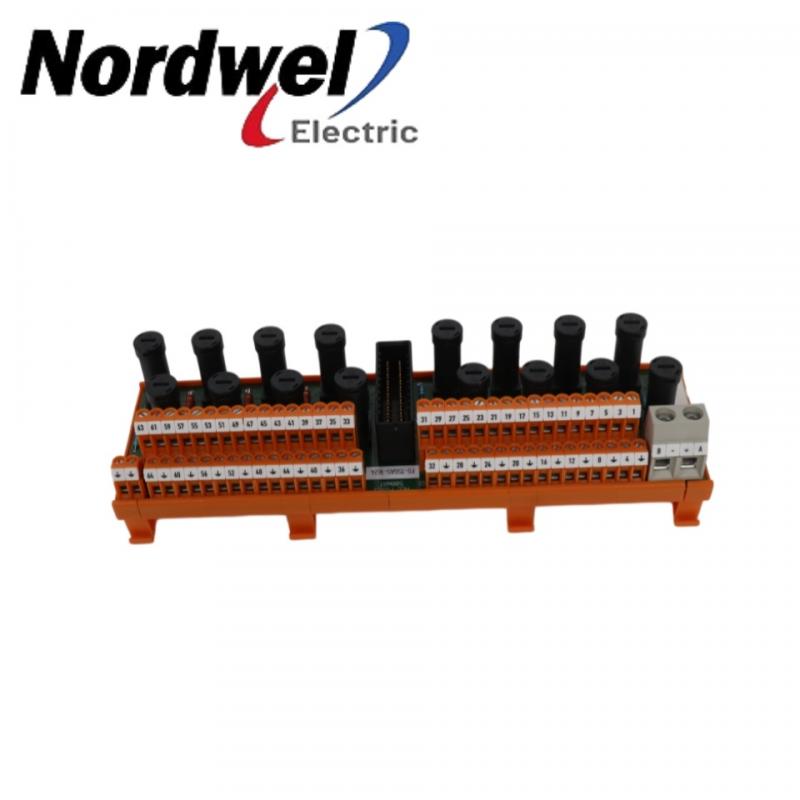

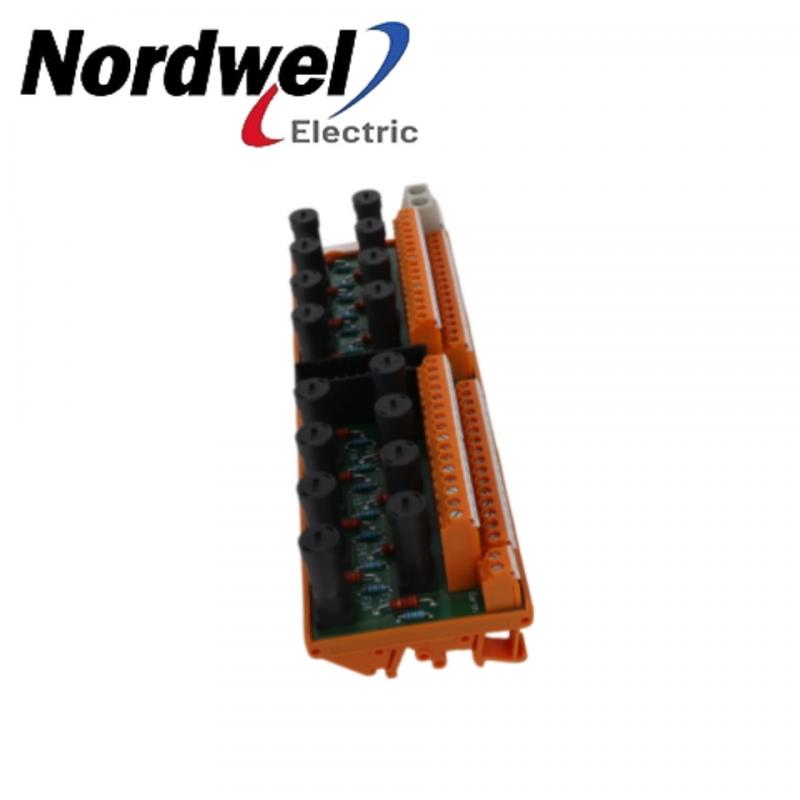

The Honeywell FS-TSGAS-1624 is a conformally coated, high-density safe gas and flame detector input Field Termination Assembly (FTA) module utilized in Safety Manager systems. Operating with 16 input channels that share a common 0V analog reference line, this module directly interfaces with field-mounted gas or flame detectors and links to a safe high-density analog input module SAI-1620m via a dedicated system interconnection cable. Each of its 16 channels routes standard 0–20 mA or 4–20 mA field current signals through an onboard, high-precision 500 Ω linear conversion resistor, transforming the current loop into a 0–4 V DC analog voltage signal recognizable by the safe controller card. For hardware-level loop isolation and fault containment, every individual current-sinking or current-sourcing supply output channel is fitted with its own 500 mA fast-acting fuse. External 24V DC logic power is fed onto the board via high-current screw terminal pairs labeled A and B, which allows the system software to continuously sense the voltage status of the external supply while drawing a base idle current of only 3 mA under no-load conditions.
Parameter Information
Channels: 16 input channels
Input signal: 0 to 20 mA or 4 to 20 mA
Maximum input: 0 to 25 mA range
Resistor: Onboard 500 Ω linear conversion resistor
Resistor tolerance: High-precision ±0.1% or ±5% variations
Voltage output: 0 to 4 V DC converted signal
Fuses: 16 individual 500 mA fast-acting fuses
Fuse model: Schurter 0001.2501 (250V AC / 300V DC)
Power supply: 24V DC external power input (Vext)
Power terminals: Terminal pairs labeled A and B
Voltage sensing: Continuous online software monitoring of external power
Current consumption: 3 mA base current under no-load conditions
Total terminals: 64 field wiring screw connections
Channel wiring: 4 terminals per channel including screening
Reference potential: 16 input channels share a common 0V
Protection: Conformal coating for harsh hazardous environments
Mounting: Snap-on standard TS32 or TS35 industrial DIN rail
FAQ
What is the channel capacity of the FS-TSGAS-1624?
It serves as a centralized DeviceNet fieldbus node and electrical interface that controls and connects CPV10 series valve terminals to a master PLC.It supports 16 input channels sharing a common 0V reference.
How many digital I/O channels does the What types of input signals does the FS-TSGAS-1624 accept? provide?
It features 16 digital inputs for sensor feedback and 8 digital outputs for valve control.It accepts standard 0–20 mA or 4–20 mA current loops, with a maximum range of 0–25 mA.
How can the How does the FS-TSGAS-1624 convert input currents to voltages? drive up to 16 valves with only 8 outputs?
It routes signals through an onboard 500 Ω resistor to output a 0–4 V DC voltage signal.
Application
Oil & Gas Refineries: Monitoring toxic hydrogen sulfide (H₂S) and explosive hydrocarbon leaks during cracking and distillation.
Chemical & Petrochemical Plants: Fire and vapor detection around hazardous chemical reactors, storage tanks, and transfer pipelines.
LNG & LPG Terminals: Monitoring potential leaks during cryogenic gas liquefaction, transport terminal storage, and regasification processing.
Offshore Platforms & FPSO Vessels: High-reliability flame and gas tracking in tight, harsh marine environments exposed to corrosive salt spray.
|
