Brand:
OthersItem NO.:
EDS-405A-SS-SCPart Number:
EDS-405A-SS-SCWeight:
0.65kgDimensions:
13.5 × 5.36 × 10.5 cmManufacture Year:
The lastest yearPlace of Origin:
CHINACertification:
COODescription:
Ethernet switches
Product Information
|
Model number |
EDS-405A-SS-SC |
|
Country of origin |
CHINA |
|
Condition |
Brand New |
|
Lead time Warranty |
in stock |
Contact us to obtain the latest prices and discounts
Sales Manager:
Stella
Send an email:
Contact in Whatsapp:

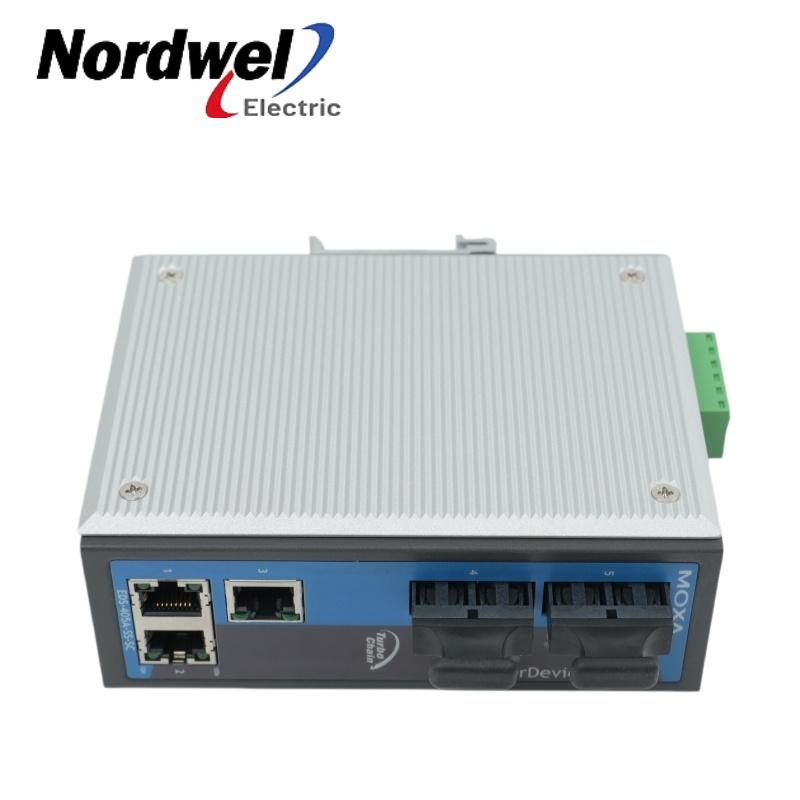

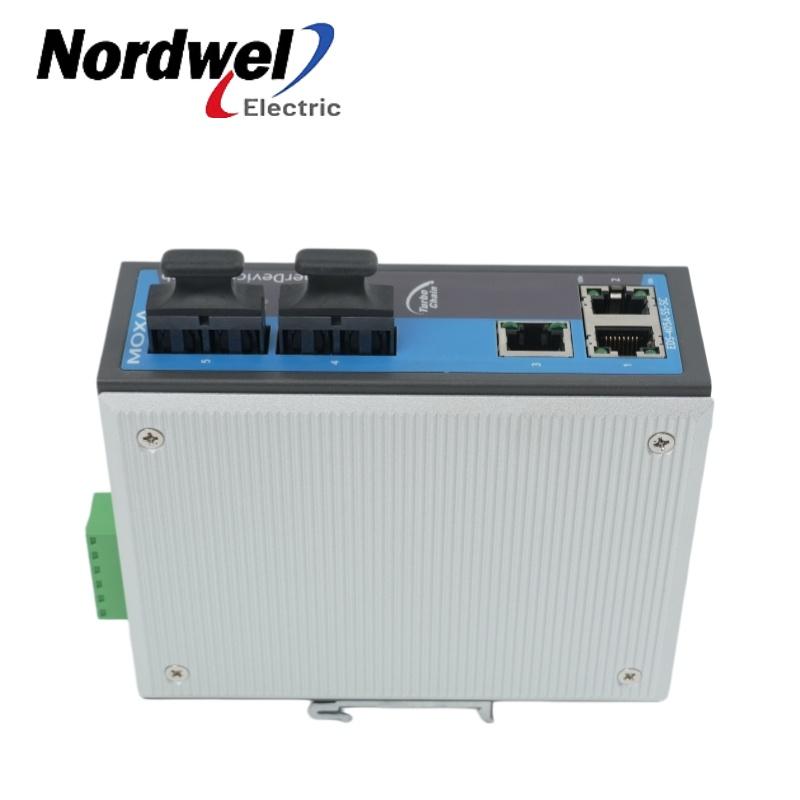

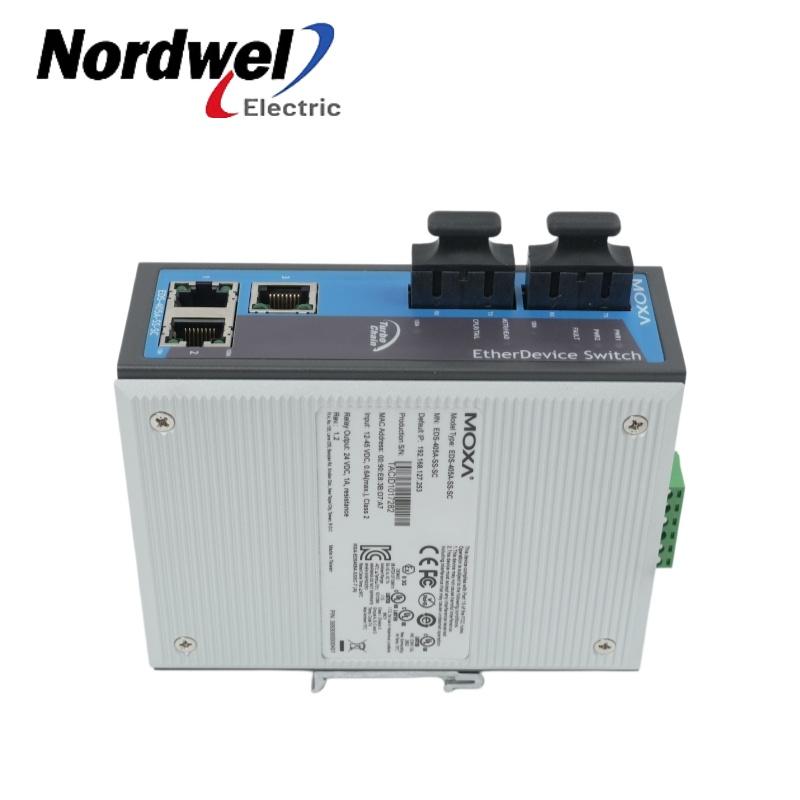

Manufacturer: Moxa Inc.
Model: EDS-405A-SS-SC
Product Type: Entry-level 5-port managed industrial Ethernet switch
System Platform: Industrial automation networks, SCADA systems, process control applications
Primary Function: Provides reliable network communication with management and redundancy capabilities for industrial control systems
Port Configuration: Equipped with 3 x 10/100BaseT(X) RJ45 copper ports and 2 x 100BaseFX single-mode SC fiber ports
Fiber Transmission: Supports up to 40 km transmission distance over G.652 single-mode fiber at 1310 nm wavelength
Network Redundancy: Supports Turbo Ring and Turbo Chain (<20 ms recovery time @ 250 switches), RSTP, and STP for enhanced network reliability
Management Features: Supports web browser, CLI, Telnet/serial console, Windows utility, and ABC-01 for flexible configuration
Industrial Protocols: Supports EtherNet/IP and Modbus TCP for seamless integration with industrial automation systems
Network Optimization: Features IGMP Snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, bandwidth management, and port mirroring
Power Supply: Accepts 12/24/48 VDC (9.6~60 VDC) redundant dual inputs with overload and reverse polarity protection
Protection Features: Industrial-grade EMS protection (ESD 6kV/8kV, RS 20V/m, EFT/Surge 2kV) for reliable operation in harsh environments
Certifications: Compliant with UL 508, UL 60950-1, ATEX Class I Division 2, DNV-GL, and NEMA TS2 standards
Construction: Metal housing with IP30 rating, DIN-rail or wall-mountable, dimensions 53.6×135×105 mm, weight 650 g
Operating Environment: Standard model operates from -10 to 60°C; wide-temperature model available from -40 to 75°C
Reliability: MTBF of 1,429,327 hours with 5-year warranty for long-term dependable service
Application: Suitable for power generation, oil & gas, chemical processing, water treatment, transportation, factory automation, and other industrial process automation systems
Our Business Focus
Amikon Limited delivers comprehensive industrial automation products and technical services to customers across manufacturing, energy, processing, and other industrial sectors. By combining a global supply network with extensive industry expertise, we help businesses maintain reliable operations and improve production efficiency.
Our product portfolio includes:
Programmable Logic Controllers (PLC) and distributed I/O modules
Distributed Control Systems (DCS) and CNC automation platforms
Human Machine Interface (HMI) terminals and industrial touch panels
Servo motors, servo drives, AC/DC drives, and variable frequency drives (VFD)
Industrial motion control systems and automation controllers
Sensors, rotary encoders, and signal interface modules
Industrial power supplies and control cabinet components
Operator panels and other industrial automation accessories
Quality is our priority. Every automation product is carefully sourced from trusted channels and inspected before shipment to ensure dependable performance, stable operation, and long service life in demanding industrial environments.
Our extensive warehouse stocks a wide selection of current, obsolete, and difficult-to-source automation components. Fast order processing and efficient global logistics help customers reduce downtime and keep production running smoothly.
Our experienced sales and technical teams work closely with customers to understand project requirements and recommend suitable automation solutions. From quotation to delivery, responsive support is available throughout every stage of the purchasing process.
We believe successful cooperation is built on trust, consistency, and continuous improvement. By strengthening relationships with customers and global suppliers, we continuously optimize our products and services to deliver lasting value.
With more than ten years of experience in industrial automation, Amikon Limited has established a worldwide sourcing network covering Europe, North America, South America, and Asia. We provide access to products from over 60,000 internationally recognized manufacturers across more than 160 countries.
Specializing in obsolete, discontinued, and hard-to-find industrial automation components, we offer customers an efficient one-stop procurement solution supported by professional service and reliable global supply capabilities.
Extensive inventory of obsolete and discontinued automation parts
Strong cooperation with more than 100 OEMs and industrial suppliers
Over 2 million industrial automation components supplied worldwide
Fast international delivery with dependable logistics support
Comprehensive sourcing solutions for difficult-to-find products
Our goal is to become a reliable global partner for industrial automation solutions. Through efficient supply chain management, responsive customer service, and ongoing technical expertise, Amikon Limited supports manufacturers in building more intelligent, efficient, and dependable industrial operations.
|
