Item NO.:
1752 L24BBBEPart Number:
1752 L24BBBEWeight:
0.57kgDimensions:
99x11.3x13.14cmManufacture Year:
The lastest yearPlace of Origin:
USACertification:
COODescription:

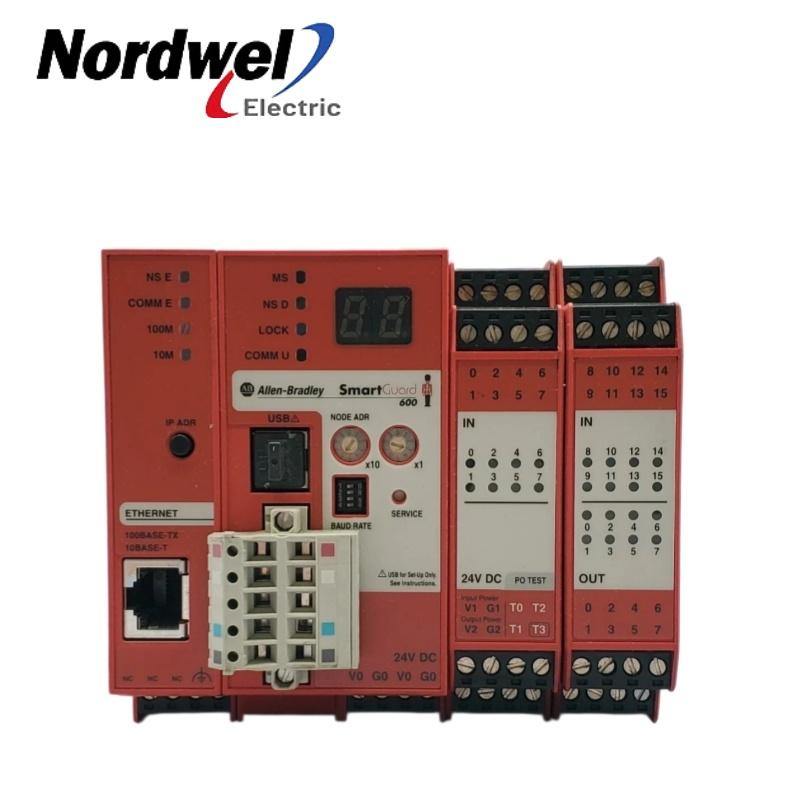

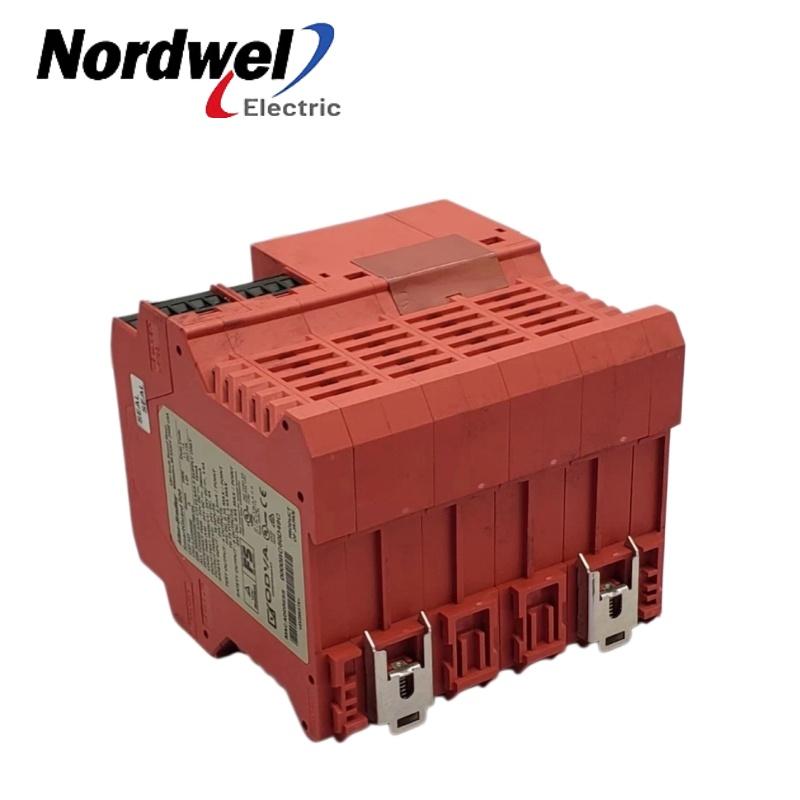

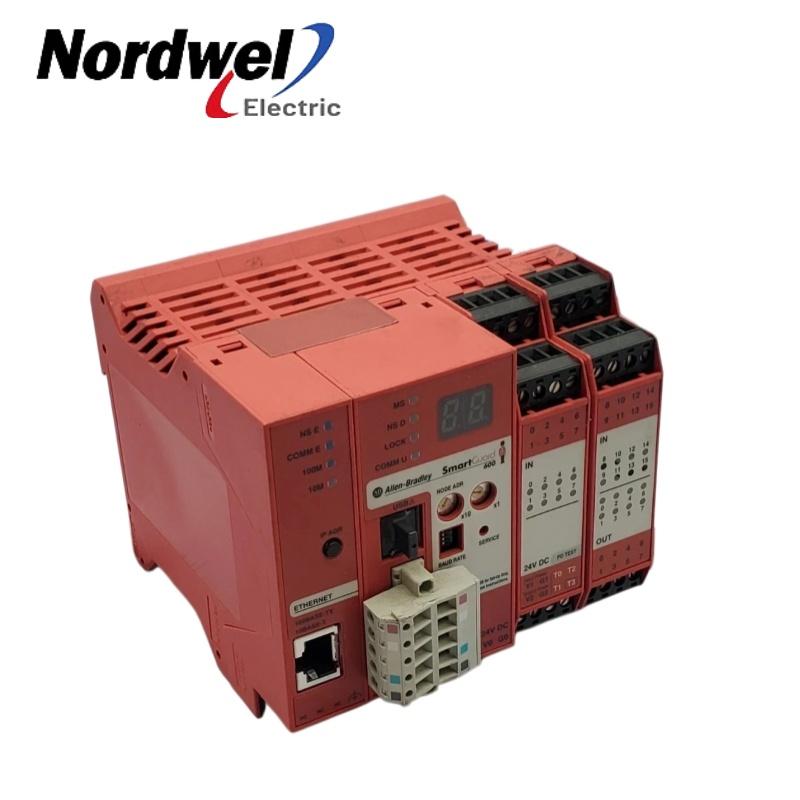

Safety Controller
Product Information
|
Model number |
1752 L24BBBE |
|
Country of origin |
USA |
|
Condition |
Brand New |
|
Dimension |
99x11.3x13.14cm |
|
Weight |
0.57kg |
|
Lead time Warranty |
in stock |
Contact us to obtain the latest prices and discounts
Sales Manager:
Stella
Send an email:
Contact in Whatsapp:
Position in Market: Designed for mid-level safety applications that are too complex for safety relays but not large enough for a full-scale safety PLC
System Platform: Programmable electronic system; supports both standard and CIP Safety communication over DeviceNet networks, and standard CIP communication over EtherNet/IP networks
Primary Function: Provides safety control and monitoring for industrial automation systems
Safety Certifications: Certified for Safety Integrity Level (SIL) 3 per IEC 61508, Performance Level PL(e) per ISO 13849-1, and Category 4 per EN 954-1; TÜV and UL certified for functional safety
Test Pulse Sources: 4 built-in test pulse sources for sensor diagnostics
Power Supply: 24V DC nominal; operating range 20.4…26.4V DC (24V DC, -15…+10%)
Isolation Voltage: 50V (functional insulation); tested at 600V AC for 60 seconds between all groups
Wire Size: For power and I/O: 0.2…2.5 mm² (12…24 AWG) solid wire, or 0.34…1.5 mm² (16…22 AWG) flexible wire; recommended ferrules with plastic insulation collars per DIN 46228-4 standard. For Ethernet: RJ45 connector per IEC 60603-7, Category 5e minimum cable
Dimensions (H × W × D): 99.0 mm × 113.0 mm × 131.4 mm (3.90 in × 4.48 in × 5.18 in)
ESD Immunity: IEC 61000-4-2; 6 kV contact discharges, 8 kV air discharges
Radiated RF Immunity: IEC 61000-4-3; 10 V/m (80…1000 MHz, 1.4…2.0 GHz), 20 V/m at 800/900/1200 MHz, 3 V/m (2.0…2.7 GHz)
EFT/B Immunity: IEC 61000-4-4; ±2 kV @ 5 kHz on power ports, ±1 kV @ 5 kHz on signal and communication ports
Surge Transient Immunity: IEC 61000-4-5; ±500V line-line and ±1kV line-earth on power ports, ±1kV line-earth on signal and communication ports
Conducted RF Immunity: IEC 61000-4-6; 10V rms with 1 kHz sine-wave 80% AM from 150 kHz…80 MHz
Certifications: c-UL-us (Class I, Division 2, Groups A, B, C, D), CE, C-Tick, TÜV, UL
