Part Number:
ATV61HD75N4Weight:
5.54kgDimensions:
17.5x16x32cmManufacture Year:
Place of Origin:
USACertification:
CO,CQDescription:

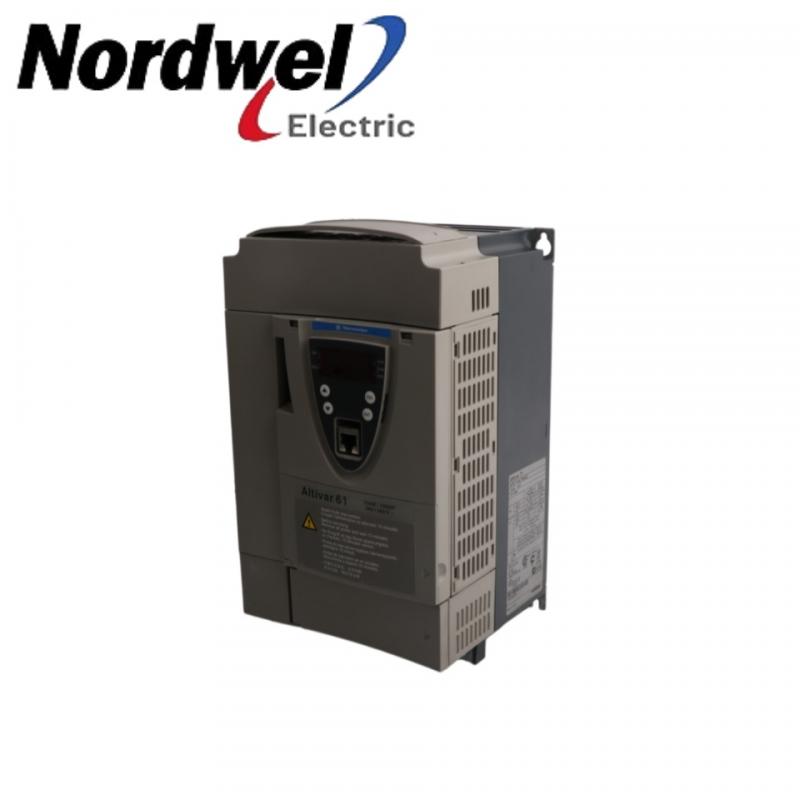

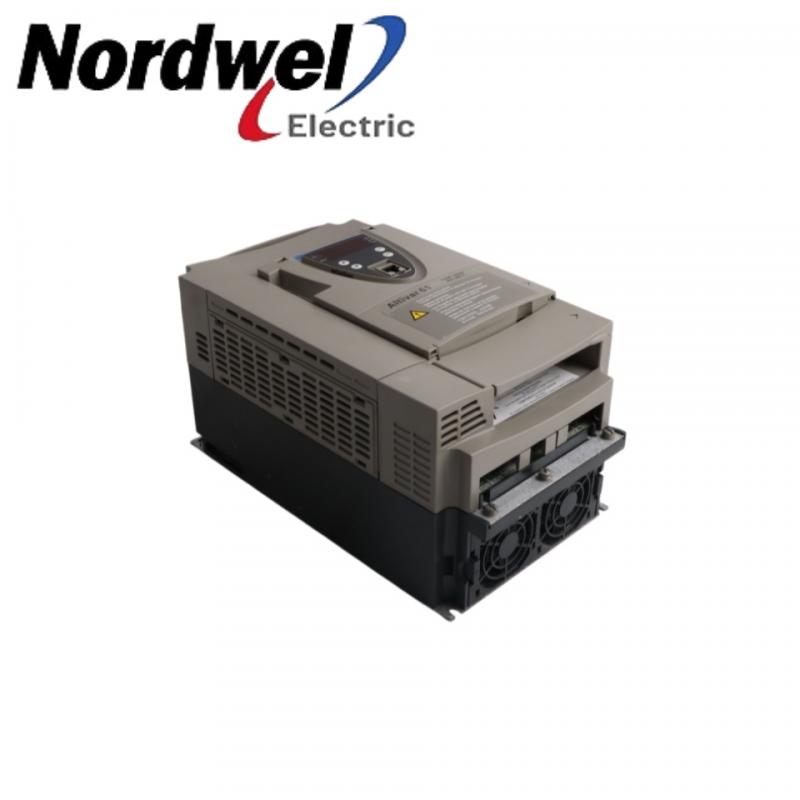

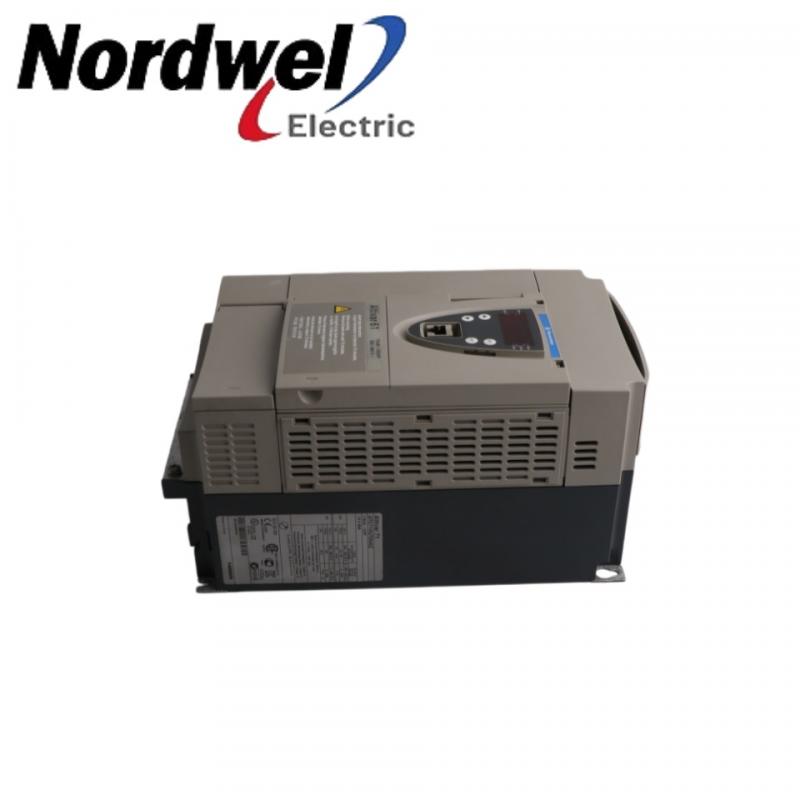

SCHNEIDER ATV61HD75N4 75kW, 460V 3-phase variable speed drive for pumping.
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
SCHNEIDER |
|
Part number |
ATV61HD75N4 |
|
Description |
SCHNEIDER ATV61HD75N4 Variable Speed Drive |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed ATV61HD75N4 in stock!!!
Product Description
The ATV61HD75N4 is a 3-phase variable speed drive within the Altivar 61 range manufactured by Schneider Electric, specifically optimized for pumping and ventilation machines. It operates on a rated supply voltage of 380...480 V, delivering a motor power rating of 75 kW or 100 hp. The hardware draws a line current of 167 A at 380 V or 137 A at 480 V, generating an apparent power of 109.9 kVA at 380 V with a maximum transient current threshold of 192 A for up to 60 seconds.Utilizing asynchronous and synchronous motor control, this drive operates with a 12 kHz nominal switching frequency across a 0.1 to 500 Hz range. Native connectivity features CANopen and Modbus, with optional cards available for Ethernet/IP, Profibus DP, and DeviceNet. The unit provides extensive I/O, including 2 analog inputs, 7 discrete inputs, and 2 discrete outputs (3 mA/24 V DC minimum switching). Housed in an IP20-rated enclosure, it functions in temperatures from -10°C to 50°C (without derating) and carries UL, CSA, C-Tick, and CE certifications.
Parameter Information
Motor Power kW: 75 kW 3 phases at 380...480 V
Motor Power HP: 100 hp 3 phases at 380...480 V
Rated Supply Voltage: 380...480 V (- 15...10 %)
Network Number of Phases: 3 phases
Line Current (480 V): 137 A for 480 V 3 phases 75 kW / 100 hp
Line Current (380 V): 167 A for 380 V 3 phases 75 kW / 100 hp
EMC Filter: Level 3 EMC filter
Assembly Style: With heat sink
Apparent Power: 109.9 kVA for 380 V 3 phases 75 kW / 100 hp
Prospective Line Isc: 22 kA 3 phases
Maximum Transient Current: 192 A for 60 s 3 phases
Nominal Switching Frequency: 12 kHz
Switching Frequency Range: 1...16 kHz adjustable
Switching Frequency Derating: 12...16 kHz with derating factor
FAQ
What is the motor power in kW and HP supported by the ATV61HD75N4?
It supports a motor power of 75 kW or 100 hp for 3 phases at 380...480 V.
What is the rated supply voltage range for the ATV61HD75N4 speed drive?
The rated supply voltage is 380...480 V with a tolerance of -15...10%.
What line current does the ATV61HD75N4 draw at 380 V and 480 V?
It draws 167 A at 380 V and 137 A at 480 V for 3 phases.
Application
Water & Wastewater Utilities: Installed in municipal sewage systems, water treatment plants, and pumping stations.
Commercial Building Infrastructure: Integrated into centralized heating, ventilation, and air conditioning (HVAC) environments.
Chemical & Processing Industries: Used to power fluid movement and gas extraction operations.
Mining & Materials Facilities: Deployed in heavy dust extraction, cooling loops, and slurry handling.
|
