Brand:
General ElectricPart Number:
UR4DHWeight:
0.9kgDimensions:
4x18.5x17.2cmManufacture Year:
Place of Origin:
USACertification:
CO,CQDescription:

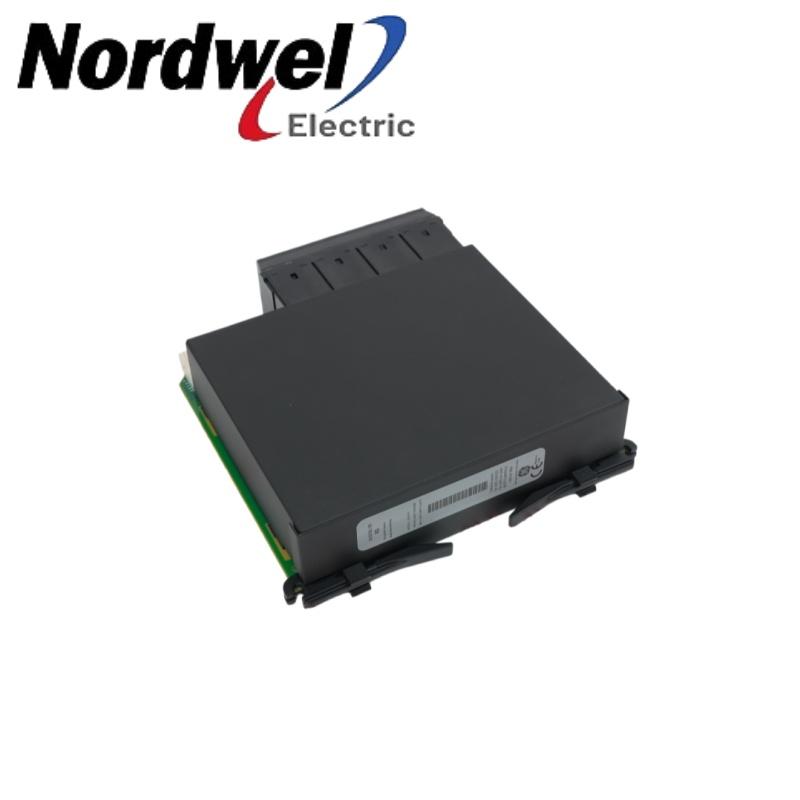

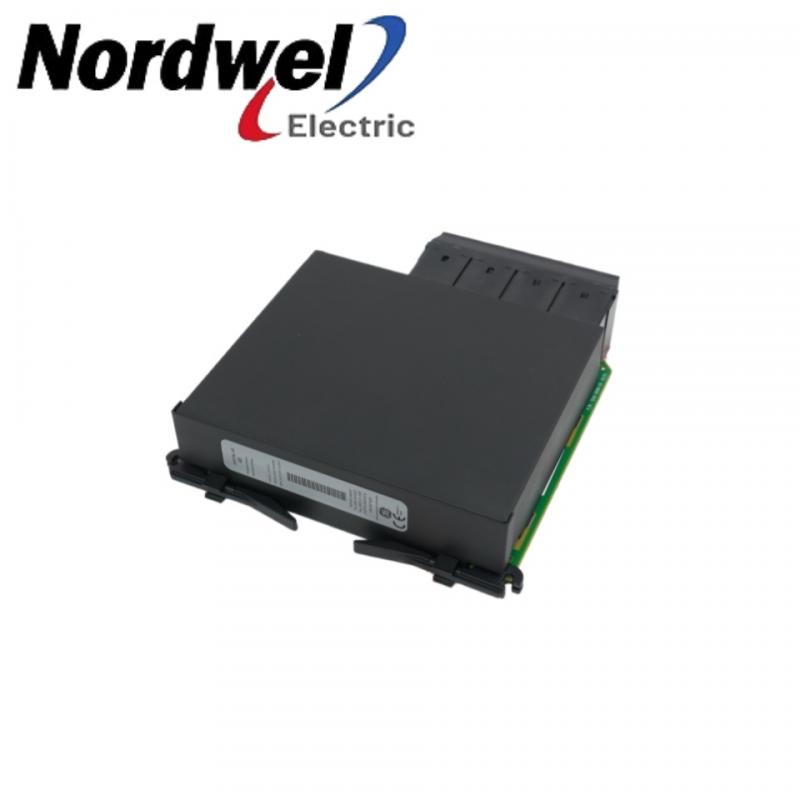

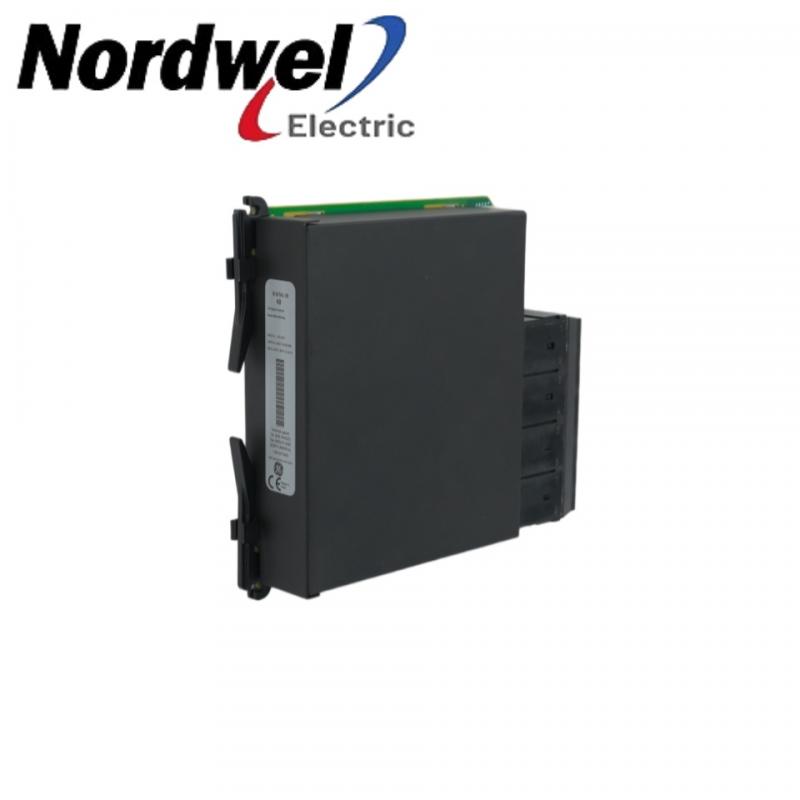

General Electric UR4DH High-density 8-input 4-output Form-C digital module for Universal Relays.
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
General Electric |
|
Part number |
UR4DH |
|
Description |
General Electric UR4DH Digital I/O Module |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed UR4DH in stock!!!
Product Description
The GE Multilin UR4DH is a high-density digital input/output expansion module dedicated to the GE Vernova UR universal relay series. This module integrates 8 configurable digital inputs and 4 isolated Form‑C relay outputs. It connects directly to the processor via the UR backplane, enabling microsecond-level signal transmission without additional couplers. It handles field signal exchange tasks including circuit breaker position feedback, disconnector status acquisition, alarm contact monitoring, and closing/tripping logic output.
Parameter Information
Total Inputs: 8 Channels
Input Voltage Ratings: 24 to 250 VDC
Input Wetting/Signal Type: Passive dry or wet contacts
Total Outputs: 4 Channels
Contact Configuration: Form-C (SPDT)
Continuous Carry Current: 10 A
Max Switching Voltage: 250 VDC / 250 VAC
Make & Carry Capacity: 30 A for 0.2 seconds
Sampling & Event Resolution: 0.5 ms
Isolation Voltage: 2 kV RMS for 1 minute
FAQ
What is the maximum current that the Form-C contacts on a UR4DH can safely carry continuously?
The 4 Form-C relay contacts inside the UR4DH are rated to carry a continuous current of 10 A at a maximum voltage of 250 VAC / 250 VDC under resistive loads.
Can the output contacts of a UR4DH safely handle high-inrush currents during the initial fraction of a second of operation?
Yes, the UR4DH output circuitry features a high-inrush "Make & Carry" capability rated at 30 A for 0.2 seconds for tripping duty applications.
What is the exact scanning time resolution for the 8 digital inputs on a UR4DH module when recording a Sequence of Events log?
The UR4DH scans its digital inputs at an ultra-fast rate of 0.5 milliseconds (ms), ensuring millisecond-level precision for event tracking and interlocking logic.
Application
Thermal & Hydroelectric Power Plants: Deployed within generator protection, steam turbine control, and balance-of-plant (BOP) systems to monitor dense digital status points.
Petrochemical & Refinery Facilities: Installed in plant-wide substations and motor control centers (MCC) to ensure uninterrupted power distribution for critical continuous chemical processes.
Steel Mills & Metallurgical Plants: Integrated into high-voltage arc furnace power supplies and rolling mill distribution cabinets to execute high-speed digital interlocking commands.
Automotive & Heavy Manufacturing Assembly Plants: Utilized in main incoming substations to handle automated load-shedding schemes and monitor main grid tie-line switchgear statuses.
|
