Brand:
SIEMENSPart Number:
6DR5020-0NG13-0AA0Weight:
1.04kgDimensions:
21.1x10.2x11cmPlace of Origin:
GermanyCertification:
CO,CQDescription:

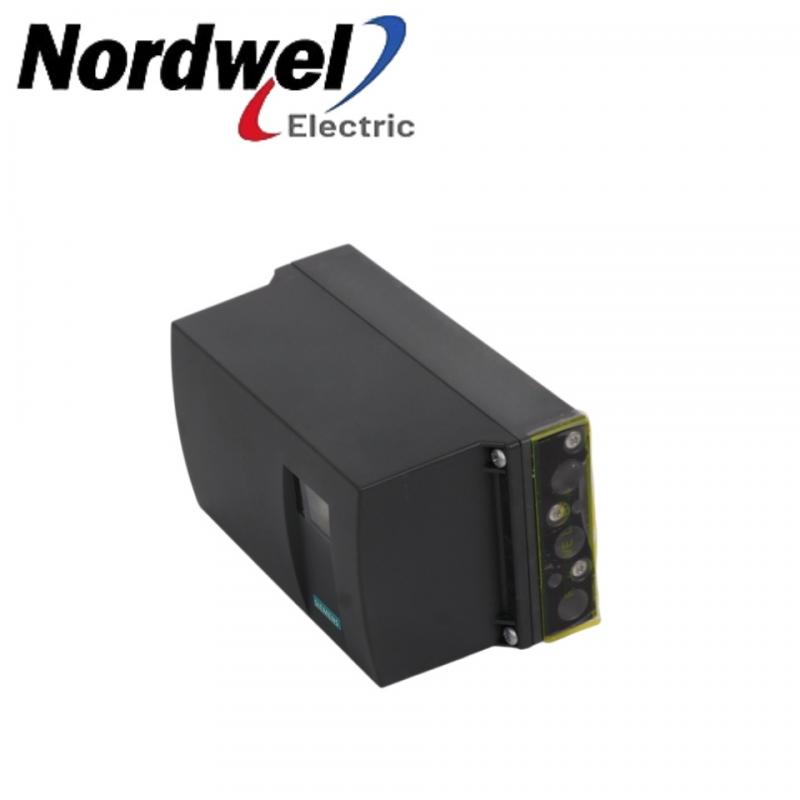

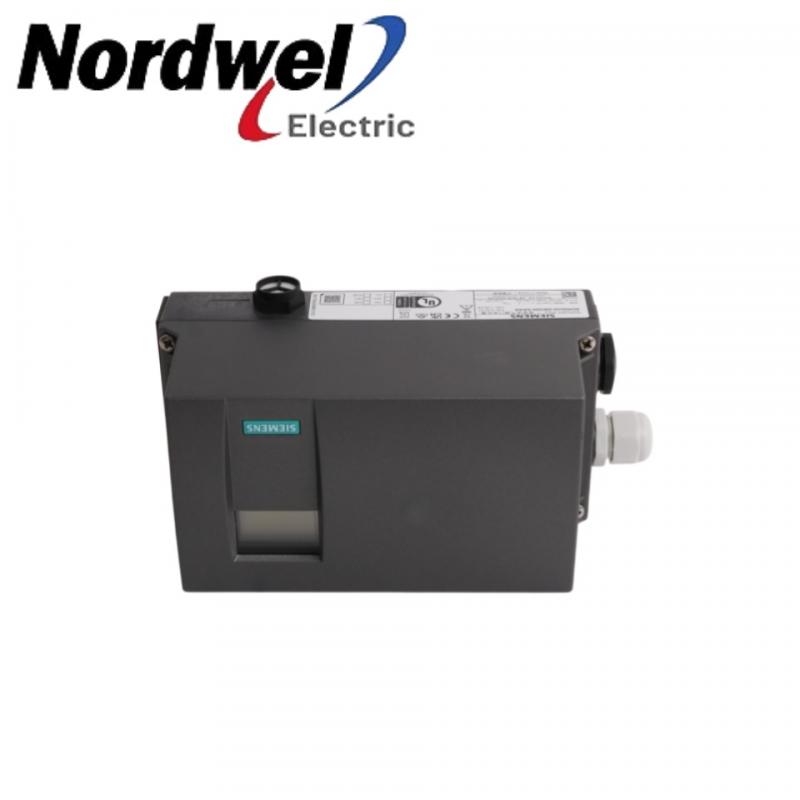

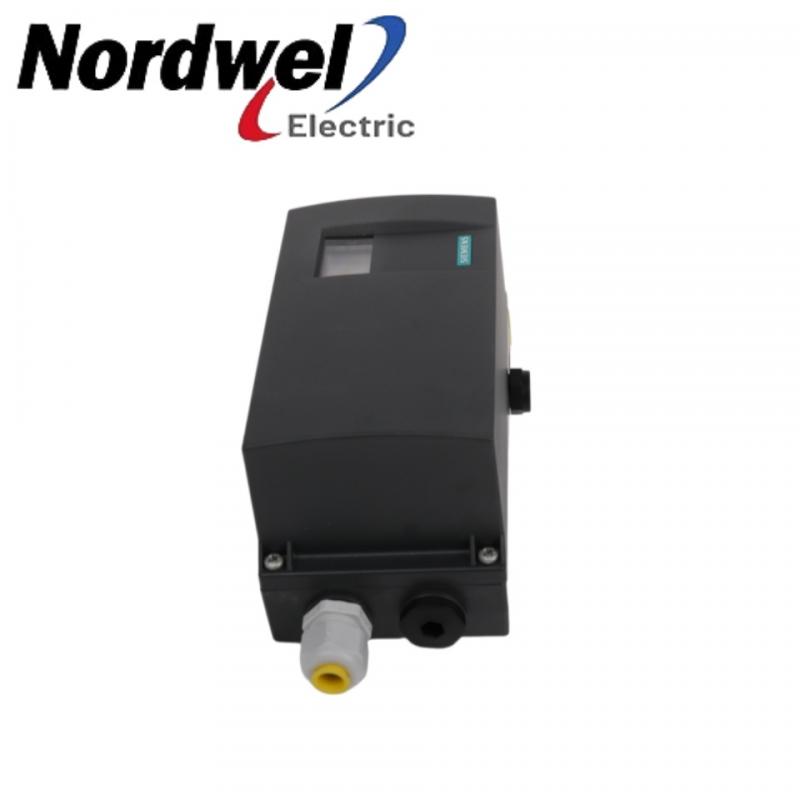

SIEMENS 6DR5020-0NG13-0AA0 Double-acting intelligent 4-20mA positioner with digital I/O module.
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
SIEMENS |
|
Part number |
6DR5020-0NG13-0AA0 |
|
Description |
SIEMENS 6DR5020-0NG13-0AA0 SIPART PS2 Electropneumatic Positioner |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed 6DR5020-0NG13-0AA0 in stock!!!
Product Description
The Siemens 6DR5020-0NG13-0AA0 is a microprocessor-controlled, intelligent electropneumatic positioner from the SIPART PS2 series, engineered for the precise modulation of double-acting (DA) linear and rotary pneumatic actuators. It operates via a standard 2-wire, 4 to 20 mA analog control loop, utilizing less than 3.6 mA to maintain basic CPU operation.This model features a rugged, glass-fiber reinforced polycarbonate enclosure weighing approximately 0.9 kg (1.98 lbs), providing IP66 and NEMA 4X ingress protection. The mechanical interface includes G 1/4 pneumatic connection ports and M20x1.5 electrical conduit entries. This specific configuration includes an integrated Digital I/O (DIO) module, adding 1 digital input and 3 digital outputs for discrete process feedback. It is designed for non-hazardous, safe-area industrial applications.
Parameter Information
Control Input Signal: 4 ... 20 mA
Minimum Operating Current: ≥ 3.6 mA
Load Voltage / Impedance: 6.36 V DC / 318 Ω
Integrated Option Module: Digital I/O module with 1 x DI and 3 x DO
Pneumatic Actuator Action: Double-acting (DA) configuration
Supply Air Pressure Range: 1.4 bar ... 7.0 bar
Maximum Inlet Air Delivery: 9.8 Nm³/h
Maximum Outlet Exhaust Capacity: 19.2 Nm³/h
Steady-State Air Consumption: < 0.01 Nm³/h
Linear Stroke Travel Range: 3 mm ... 130 mm
Ingress Protection : IP66
Operating Ambient Temperature: -30°C ... +80°C
FAQ
If the loop signal drops below 3.6 mA, will the 6DR5020-0NG13-0AA0 completely power down its microprocessor?
Yes, a minimum current of 3.6 mA is strictly required to power the internal electronics and local LCD display.
Since the 6DR5020-0NG13-0AA0 creates a 6.36 V DC drop (318 Ω impedance) at 20 mA, will this overload standard DCS cards?
No, standard DCS analog output cards typically support up to 600 Ω or 750 Ω loops, easily accommodating this impedance.
What are the maximum voltage and current limits for the integrated module containing 1 digital input and 3 digital outputs inside the 6DR5020-0NG13-0AA0?
The digital inputs accept up to 35 V DC, while the binary outputs are typically rated for switching up to 35 V DC at a maximum load current of 100 mA.
Application
Thermal & Hydroelectric Power Plants: Deployed within generator protection, steam turbine control, and balance-of-plant (BOP) systems to monitor dense digital status points.
Sewage Treatment Plants: Installed on double-acting knife gate valves and sludge pumping loops to track binary limit positions.
Desalination Facilities: Applied to heavy-duty rotary butterfly valves regulating large-scale seawater intake, chemical dosing, and filtration beds.
Chemical Utility Blocks: Embedded in gas separation matrices and nitrogen generation units to regulate precise double-acting flow control valves.
Food & Pharma Utility Rooms: Mounted on steam, chilled water, and sterile air supply lines feeding pasteurizers and clean-in-place (CIP) loops.
|
