Brand:
SIEMENSPart Number:
C98043-A7044-L1-6/RSS70-DCF-40Weight:
0.2kgDimensions:
18.5x14.5x3.5cmPlace of Origin:
GERMANYCertification:
CO,CQDescription:

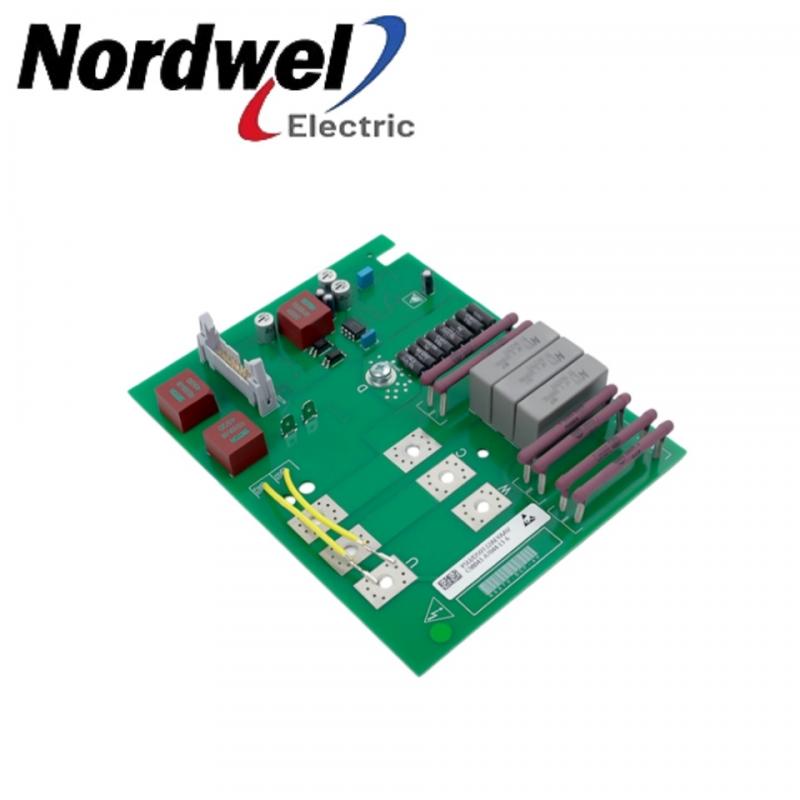

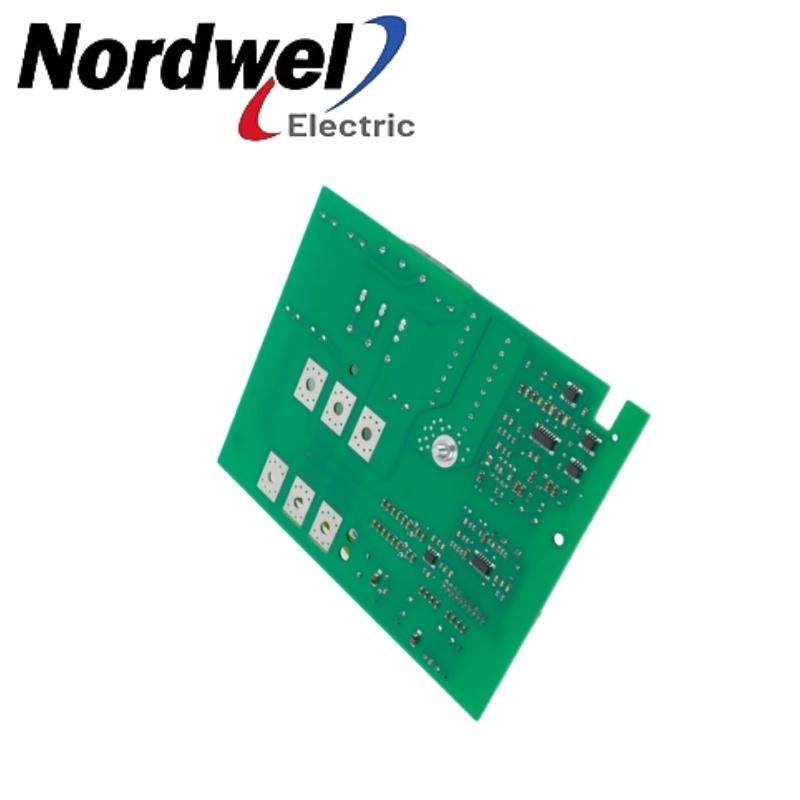

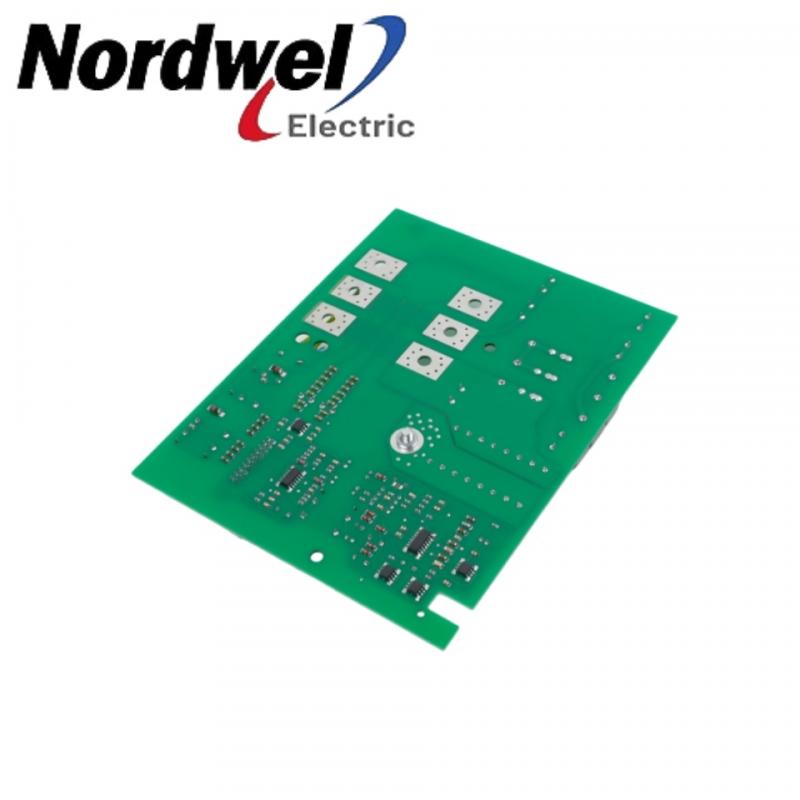

SIEMENS C98043-A7044-L1-6/RSS70-DCF-40 1000V SIMOREG 6RA70 DC drive voltage detection board.
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
SIEMENS |
|
Part number |
C98043-A7044-L1-6/RSS70-DCF-40 |
|
Description |
SIEMENS C98043-A7044-L1-6/RSS70-DCF-40 Voltage Detection PC Board |
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed C98043-A7044-L1-6/RSS70-DCF-40 in stock!!!
Product Description
The C98043-A7044-L1-6 / RSS70-DCF-40 is a specialized voltage detection and excitation printed circuit board manufactured by Siemens for industrial speed regulation systems. Primarily engineered for the SIMOREG 6RA70 series DC governors and drive systems, this control card handles real-time voltage monitoring and excitation tracking across standard industrial threshold ratings of 85V, 250V, 575V, and up to 1000V. Utilizing a series of dedicated terminal connections to feed direct electrical metrics back to the central logic unit of the drive assembly. It operates without programmable microcode of its own, relying entirely on hardware-level signal conditioning to isolate and verify primary line voltage stability under heavy-duty load variations.
Parameter Information
Voltage Scaling Channels: 85V, 250V, 575V, 1000V hardware paths
Circuitry Power Dissipation: Maximum internal loss of 3.8 W
Nominal Control Logic: 24 VDC external signal paths
Terminal Interface Blocks: XU4, XV4, XW4 armature detection links
Drive Rating Match: Basic industrial units up to 5.5 kW
Operating Ambient Limits: 0°C to +60°C continuous runtime
Storage Temperature Envelope: -25°C to +70°C maximum exposure
Ingress Protection Code: IP00
Climate Resistance Class: EN 60721-3-3 Class 3K3 standard compliance
FAQ
What voltage channels can the C98043-A7044-L1-6/RSS70-DCF-40 measure?
It scales line voltages for 85V, 250V, 575V, and 1000V systems.
What is the maximum power loss of the C98043-A7044-L1-6/RSS70-DCF-40?
The maximum internal power dissipation is 3.8 W.
What external logic voltage does the C98043-A7044-L1-6/RSS70-DCF-40 use?
It operates on nominal 24 VDC control logic paths.
Application
Steel & Metallurgy: Regulating main drives for rolling mills and heavy-duty wire drawing machines.
Paper & Printing: Controlling multi-drive sectional paper machines and high-speed printing presses.
Mining & Material Handling: Powering mine hoists, large excavators, and overland conveyor belts.
Rubber & Plastics: Managing large-scale extruders and internal mixers.
|
