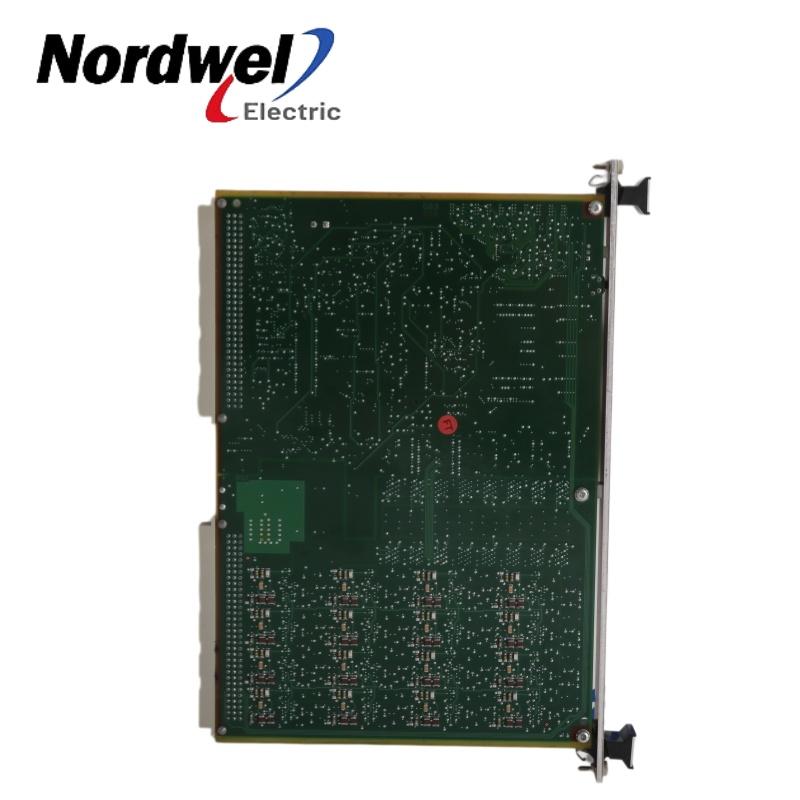

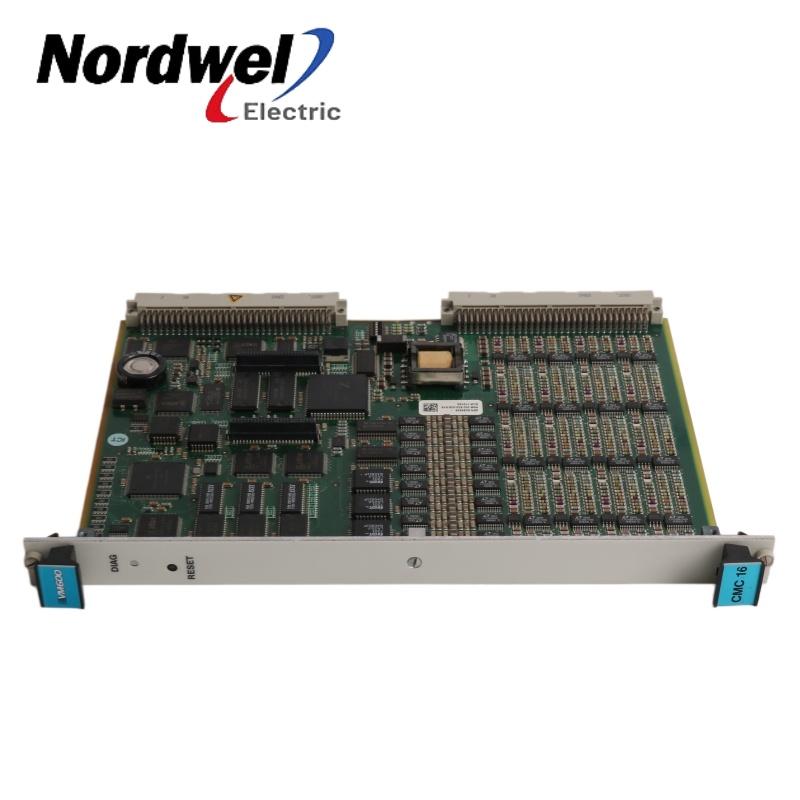

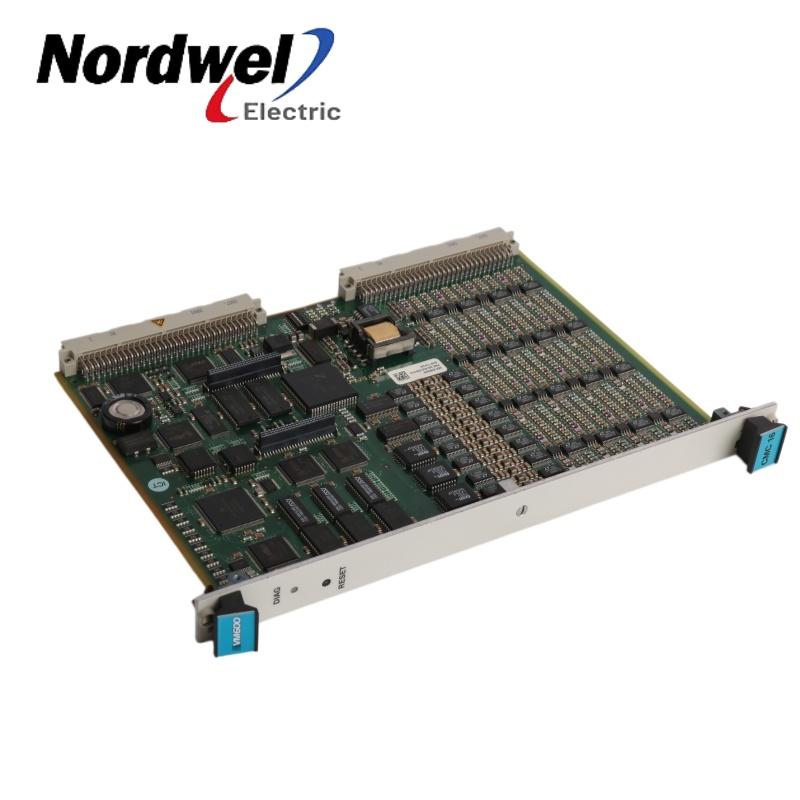

Vibro Meter VM600 CMC16 200-530-022-014 Diagnostic Board

Products
Vibro Meter VM600 CMC16 200-530-022-014
Vibro Meter VM600 CMC16 200-530-022-014
Vibro Meter VM600 CMC16 200-530-022-014

Vibro Meter VM600 CMC16 200-530-022-014 Diagnostic Board

  • Brand:

    Others

  • Item NO.:

    VM600 CMC16 200-530-

  • Part Number:

    VM600 CMC16 200-530-022-014

  • Weight:

    0.35

  • Dimensions:

    26.2 × 2.0 × 18.7 cm

  • Manufacture Year:

    The lastest year

  • Place of Origin:

    Switzerland

  • Certification:

    COO

  • Description:

    Diagnostic Board
Inquiry now

Product Information

 Model number

 VM600 CMC16 200-530-022-014

 Country of origin

 Switzerland

 Condition

 Brand New

 Lead time Warranty

 in stock


Contact us for the latest pricing and discount information

 Sales Manager:

Stella

 Send an email:

sales9@amikon.cn

 Contact in Whatsapp:

+86 18159889985



Specifications


  • Dynamic Inputs: 16 individually configurable channels
  • Tacho/Phase Inputs: First 4 channels configurable as speed or phase inputs
  • Process Inputs: Last 12 channels configurable for process values
  • Input Applications: Vibration, speed, phase, dynamic pressure, rotor air gap and quasi-static signals
  • A/D Conversion: Independent 14-bit ADC per channel
  • Maximum Sampling Rate: 100 kHz
  • Maximum Frequency Span: 20 kHz
  • Measurement Accuracy: ±1% of input full-scale range
  • AC Input Ranges: 0.1–20 V FSD, selectable
  • DC Input Range: ±24 V FSD
  • Speed/Phase Input: 1–24 V pulse
  • Speed Frequency Range: 0.25–10,000 Hz
  • Speed Measurement Range: 15–30,000 RPM
  • Maximum Pulses per Revolution: 128 for speed; 1 for phase reference
  • Machine-Speed Resolution: ±1 RPM
  • FFT Resolution: Up to 3,200 lines
  • Frequency Bands: 10 configurable bands per channel
  • Alarm Levels: Six configurable alarms per band
  • Onboard Memory: 1 MB RAM
  • Communication: VMEbus and RS-485 multidrop
  • VMEbus Transfer Rate: 1 MB/s
  • RS-485 Rate: 19,200 or 38,400 baud
  • Maximum RS-485 Distance: 1,220 m without repeaters
  • Supply Voltage: 5 VDC ±5%
  • Power Consumption: 15 W
  • Operating Temperature: –25°C to +65°C
  • Operating Humidity: 0–90% RH, non-condensing
  • Storage/Survival Temperature: –40°C to +85°C
  • Storage Humidity: 0–95% RH, non-condensing
  • Installation: VM600 rack, live insertion/removal supported
  • Status Indication: Three-color front-panel LED
