Brand:
Bently NevadaItem NO.:
330102-00-52-10-01-0Part Number:
330102-00-52-10-01-05Weight:
0.14kgDimensions:
1.5x1.3x121cmManufacture Year:
The lastest yearPlace of Origin:
USACertification:
COODescription:

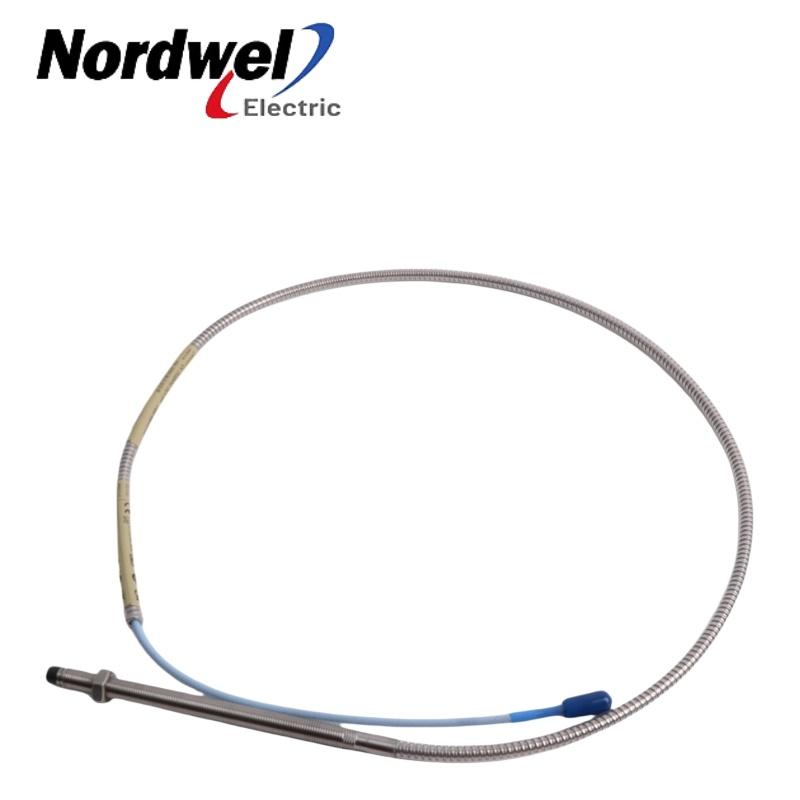

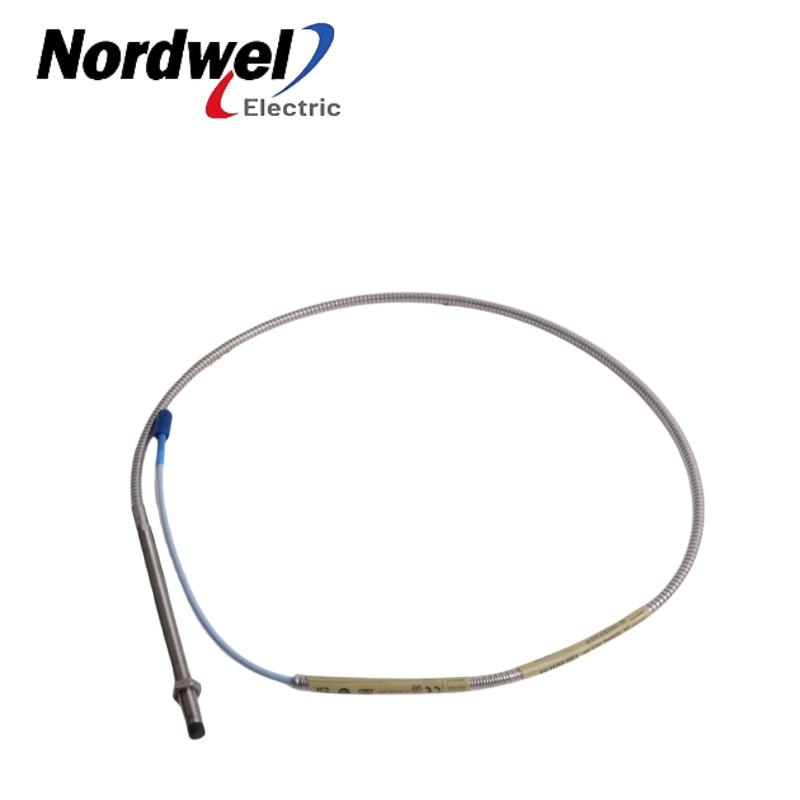

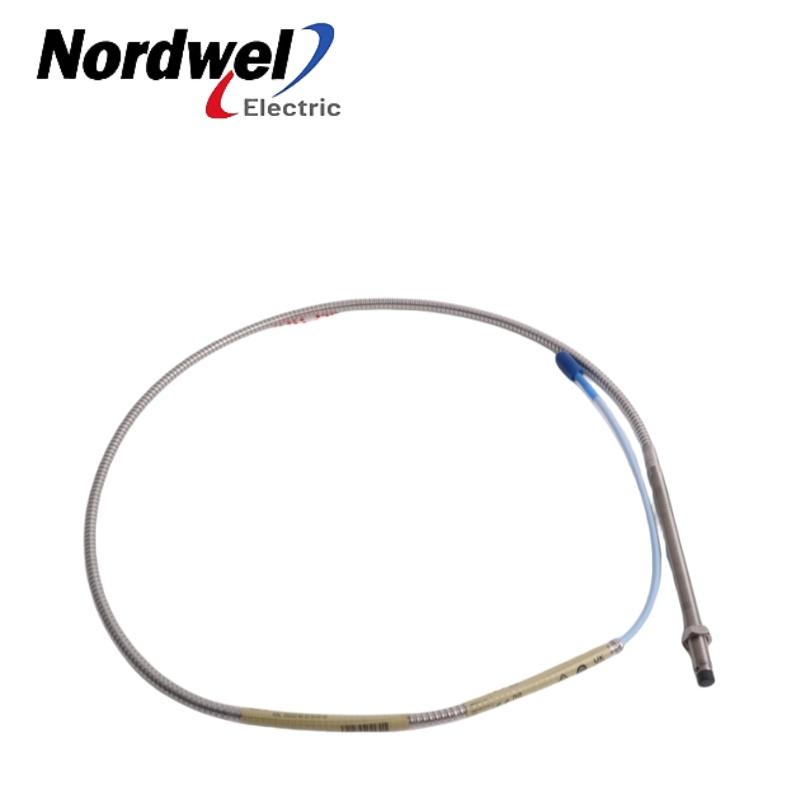

3300 XL 8 mm Proximity Probes
Product Information
|
Model number |
330102-00-52-10-01-05 |
|
Country of origin |
USA |
|
Condition |
Brand New |
|
Lead time Warranty |
in stock |
Contact us for the latest pricing and discount information
Stella
Sales Manager:
Send an email:
Contact in Whatsapp:
Detailed Technical Specifications of the 330102-00-52-10-01-05
Model decoding: 330102 = 3300 XL 8 mm probe, 3/8‑24 UNF thread, with stainless‑steel armor. 00 = 0.0 in unthreaded length. 52 = 5.2 in (132 mm) overall case length. 10 = 1.0 m (3.3 ft) total cable length. 01 = miniature coaxial ClickLoc connector with connector protector and standard cable. 05 = CSA, ATEX, IECEx multiple approvals.
General: Non‑contacting eddy‑current probe system for static (position) and dynamic (vibration) measurements on fluid‑film bearing machines, plus Keyphasor and speed applications. The 5‑meter system fully complies with API 670 Standard.
Electrical: Sensitivity = 7.87 V/mm (200 mV/mil) ±5% including interchangeability error over 0 to +45 °C. Linear range = 2 mm (80 mils), from ~0.25 mm to 2.3 mm (approx. –1 to –17 Vdc). Recommended radial vibration gap = 1.27 mm (50 mils) at –9 Vdc. Frequency response = 0 to 10 kHz (+0, –3 dB) with up to 305 m of field wiring.
Mechanical: Probe tip = PPS; case = AISI 303/304 SST; armor = flexible AISI 302/304 SST with FEP jacket; cable = 75 Ω triaxial FEP insulated; connectors = gold‑plated brass or beryllium copper. Minimum bend radius = 25.4 mm (1.0 in). Maximum tensile strength = 330 N (75 lbf).
Installation torque: Standard forward‑mount probe – recommended 11.2 N·m (100 in·lbf); max rated 33.9 N·m (300 in·lbf). First three threads – recommended 7.5 N·m (66 in·lbf); max 22.6 N·m (200 in·lbf). Connector torque – finger‑tight only (max 0.565 N·m / 5 in·lbf). Maximum thread engagement for 3/8‑24 = 0.563 in (14.3 mm) – exceeding may cause binding and voids warranty.
Environmental: Standard probe operating/storage = –52 °C to +177 °C (–62 °F to +350 °F). Exposure below –34 °C (–30 °F) may cause premature pressure‑seal failure. Proximitor sensor operating = –52 °C to +100 °C; storage = –52 °C to +105 °C. Humidity: <3% change in ASF after 56 days at 93% RH (IEC 68‑2‑3). Pressure seal uses Viton® O‑ring but probes are not pressure‑tested before shipment.
Certifications: SIL 2/3 functional safety; EMC (EN 61000‑6‑2/‑4); FCC Part 15; RoHS; China RoHS (EFUP 15 years); Maritime; hazardous area approvals (cNRTLus Class I Zone 0/2, ATEX/IECEx Ex ia/na IIC).
Special features: ClickLoc connectors lock with finger‑tight torque (audible “click”). Connector protectors are recommended for all installations. Silicone self‑fusing tape is supplied as an alternative but not recommended for turbine oil exposure.
|
