Part Number:
330102-00-16-10-02-05Weight:
0.15kgDimensions:
1.5x1.3x117cmPlace of Origin:
USACertification:
CO,CQDescription:
Bently Nevada 330102-00-16-10-02-05 High-density digital module for power plant monitoring.
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
|
|
Part number |
330102-00-16-10-02-05 |
|
Description |
|
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed 330102-00-16-10-02-05 in stock!!!
Product Description

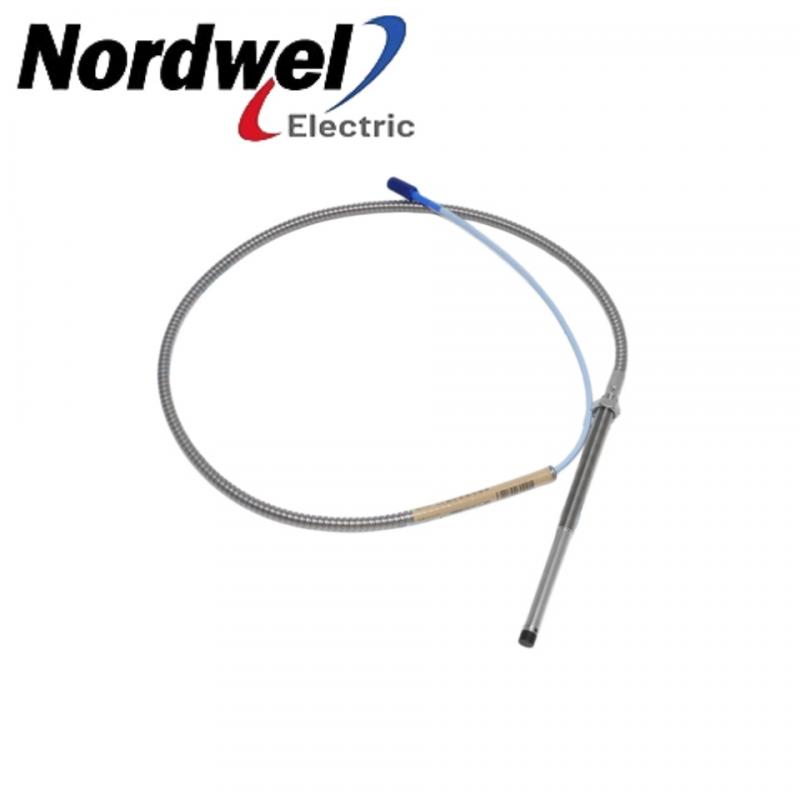

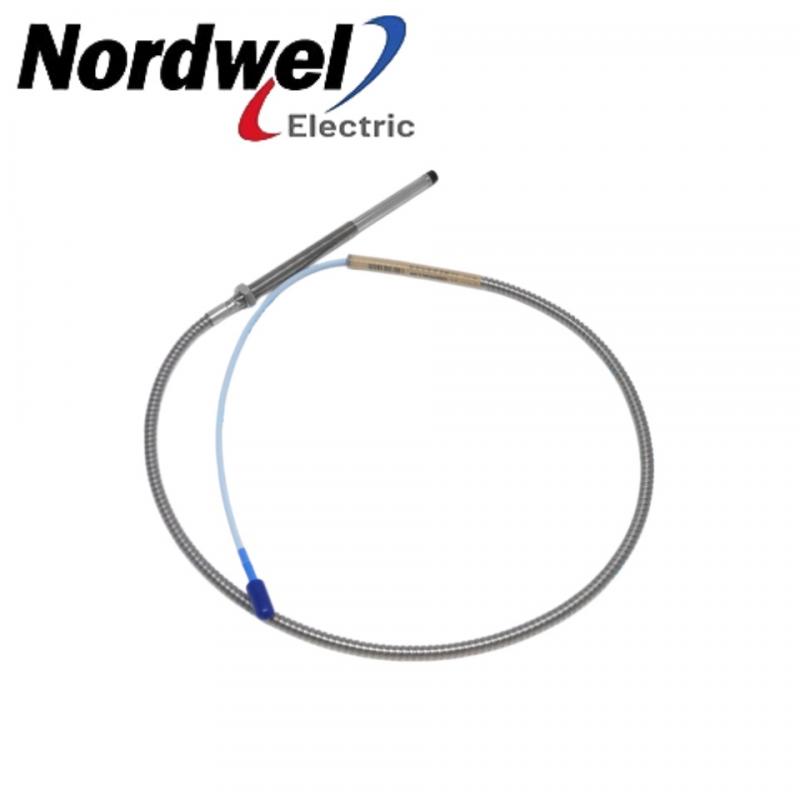

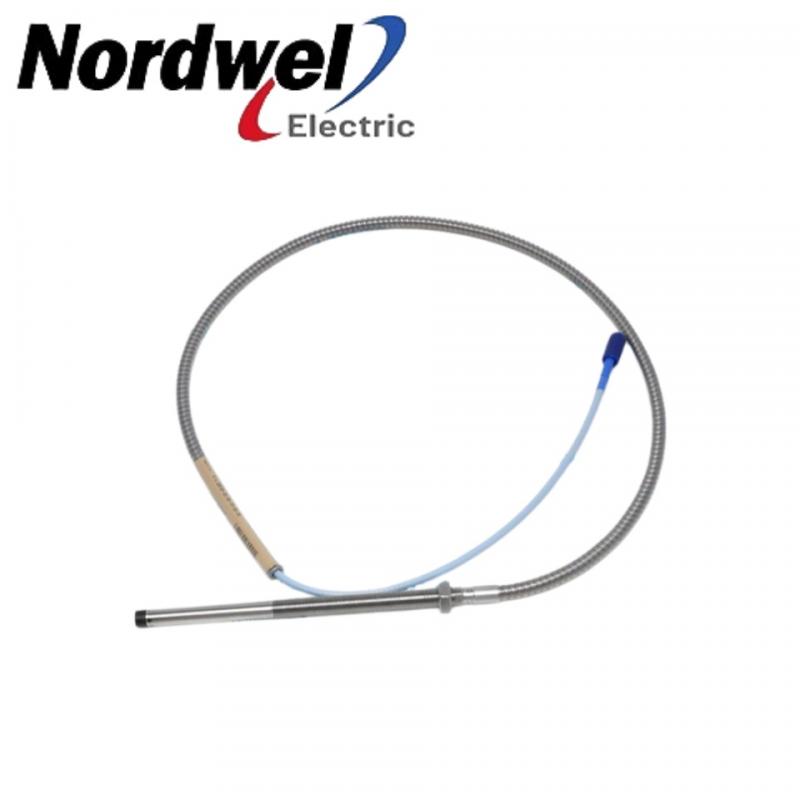

The Bently Nevada 330102-00-16-10-02-05 is a 3300 XL 8 mm proximity probe with a 3/8-24 UNF threaded body and armored cable construction. Based on the part number configuration, this model features a 0 in. unthreaded length, a 1.6 in. overall case length, a 1.0 m (3.3 ft) total cable length, a miniature coaxial ClickLoc connector with standard cable (Option 02), and CSA, ATEX, and IECEx approvals (Option 05). It is intended for use as part of the complete 3300 XL 8 mm Proximity Transducer System, together with the matching extension cable and Proximitor Sensor specified for the system.This probe provides non-contact measurement of the distance between the probe tip and a conductive target, allowing accurate monitoring of both static shaft position and dynamic shaft vibration. It is commonly installed on rotating equipment such as steam turbines, gas turbines, compressors, pumps, motors, fans, and generators where continuous shaft condition monitoring is required. The armored cable adds mechanical protection in locations where the cable may be exposed to abrasion, vibration, or routine maintenance activities, while the miniature ClickLoc connector offers a secure and reliable connection during installation and service.
Parameter Information
Unthreaded Length Option: 0in
Overall Case Length Option : 1.6in
Total Length Option: 1.0 meter (3.3 feet)
Connector and Cable-Type Option: Miniature coaxial ClickLoc
connector, standard cable
Agency Approval Option : CSA, ATEX, IECEx Approvals
Standard
Probe : -52°C to +177°C (-62°F to
+350°F)
Extended
Temperature
Range Probe: Less than ±0.74 mm (±29
mils)-52°C to +218°C (-62°F to
+425°F) for the probe tip; -
51°C to +260°C (-60°F to
+500°F) for the probe cable
and connector
Armor
(optional on
both) : Flexible AISI 302 or 304 SST
with FEP outer jacket
Frequency
Response : (0 to 10 kHz), +0, -3 dB, with
up to 305 meters (1000
feet) of field wiring
Minimum Target
Size: 15.2 mm (0.6 in) diameter
(flat target)
Connector
Materia: Gold-plated brass or goldplated beryllium copper. Gold-plated brass or goldplated beryllium copper.
FAQ
Does model 330102-00-16-10-02-05 feature 12-layer multi-coating?
Yes, it uses 12-layer multi-coating.
Is the light transmission rate of 330102-00-16-10-02-05 exactly 99.5%?
Yes, the light transmission rate is 99.5%.
Does 330102-00-16-10-02-05 operate safely at -40°C?
Yes, it operates safely at -40°C.
Application
Thermal & Hydroelectric Power Plants: Deployed within generator protection, steam turbine control, and balance-of-plant (BOP) systems to monitor dense digital status points.
Nuclear Power Facilities: Integrated into safety-critical control loops and containment monitoring networks to handle high-reliability signal logging.
Electrical Substations & Smart Grids: Utilized in switchgear telemetry and bay control units to track real-time breakers and disconnector states.
Renewable Energy Storage Stations: Applied in battery energy storage systems (BESS) and inverter stations to manage dense operational parameters.
|
