Part Number:
330877-080-37-05Weight:
0.94kgDimensions:
28x28x3cmPlace of Origin:
USACertification:
CO,CQDescription:

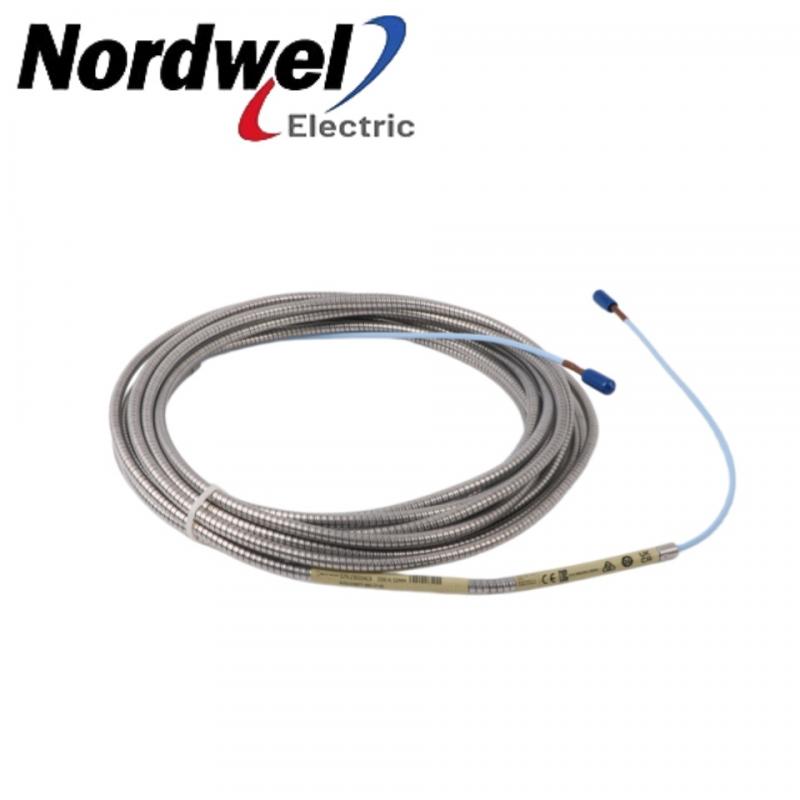

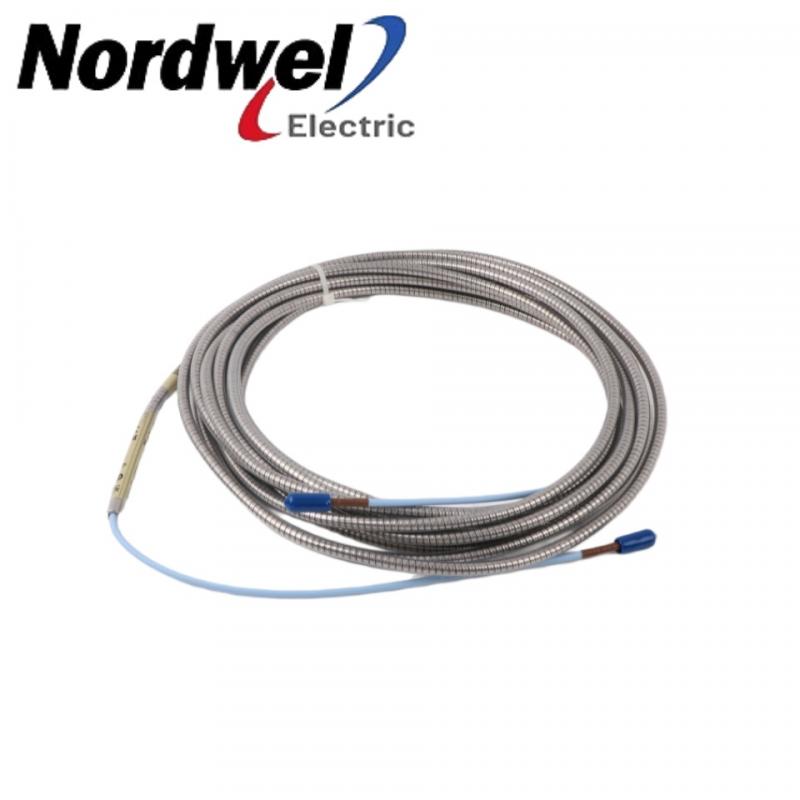

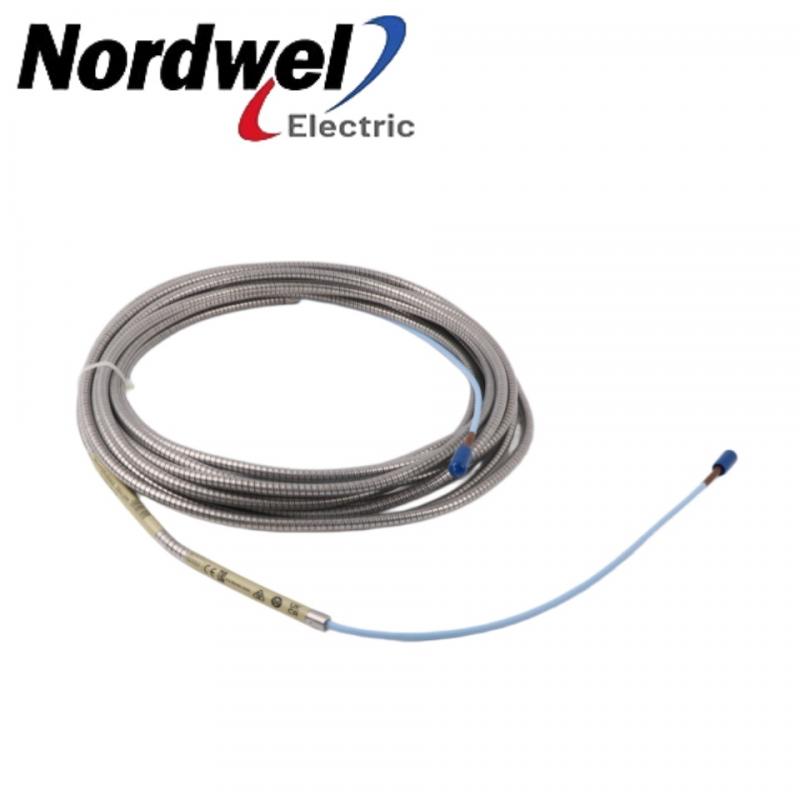

Bently Nevada 330877-080-37-05 Armored 8m extension cable with global hazardous approvals.
Speak to a sales manager for best pricing & lead time:
Sales manager : Tiffany Guan
Mobile / WhatsApp : + 86 18030235313
Email: sales2@mooreplc.com
|
Manufacturer |
|
|
Part number |
330877-080-37-05 |
|
Description |
|
|
LEAD TIME |
In Stock |
|
SHIPPING PORT |
Xiamen |
|
PAYMENT |
T/T (Telegraphic Transfer) |
Original new and factory-sealed 330877-080-37-05 in stock!!!
Product Description
The Bently Nevada 330877-080-37-05 is a 3300 XL 50 mm extension cable assembly designed for 9.0-meter system lengths when paired with a 1.0-meter probe. It features an 8.0-meter (26.2 ft) 75 Ω triaxial cable with PFA insulation and flexible stainless steel (SST) armor, suitable for high-temperature environments ranging from -51°C to +200°C (-31°F to +392°F). The assembly incorporates FluidLoc cable and gold-plated ClickLoc connectors (rated for 0.565 N·m torque and 270 N tensile strength), with a minimum bend radius of 25.4 mm. Electrically, it features a 69.9 pF/m typical capacitance and specified DC resistance. The "05" suffix indicates compliance with global hazardous area approvals, including intrinsically safe (ia) and non-sparking/increased safety (nA, ec) standards (Ui = -28V, Ii = 140mA).
Parameter Information
Cable Length Option: 8.0 meters (26.2 feet)
Armor and Cable Option: 2inFluidLoc ext. cable w/ armor
Agency Approval Option: Multiple Approvals
Output
resistance : 50 Ω
Extension cable
capacitance : 69.9 pF/m (21.3 pF/ft)
typical
Average Scale
Factor (ASF) : 394 mV/mm (10 mV/mil)
nominal
Deviation from
best fit straight
line (DSL): Less than ±0.74 mm (±29
mils)
Recommended
Minimum Target
Size: 102 mm (4.0 in) diameter
(flat target)
Probe Tip
Material: Polyphenylene Sulfide
(PPS)
Probe Case
Material: AISI 304 stainless steel
(SST)
Proximitor
Sensor Material: A380 aluminum
FAQ
If the ambient temperature surrounding the 330877-080-37-05 breaches the -51°C to +200°C limits, will the signal accuracy degrade?
Exceeding the certified range of -51°C to +200°C will degrade the PFA insulation and alter the cable's electrical capacitance parameters.
Can the 330877-080-37-05 withstand a continuous physical tensile strain greater than 270 N?
No, the mechanical connection between the cable and the ClickLoc connector is strictly rated for a maximum tensile strength of 270 N.
Does the 330877-080-37-05 triaxial cable maintain a nominal electrical capacitance of 69.9 pF/m?
Yes, the 75 Ω triaxial FluidLoc cable structure features a typical internal capacitance rating of exactly 69.9 pF/m.
Application
Thermal & Hydroelectric Power Plants: Deployed within generator protection, steam turbine control, and balance-of-plant (BOP) systems to monitor dense digital status points.
Petrochemical & Oil Refineries: Deployed within high-temperature hydrocracker units, catalytic cracking areas, and heavy crude distillation systems to transmit shaft position data under harsh thermal conditions.
Automotive & Engine Testing Plants: Deployed within high-speed dynamometer rigs, turbine turbocharger test benches, and powertrain monitoring stations to ensure continuous vibration sensor signal integrity.
Aerospace & Gas Turbine Facilities: Deployed within aviation engine test cells, gas turbine auxiliary frameworks, and industrial blower systems to provide certified explosion-proof signal routing.
|
