Brand:
Bently NevadaItem NO.:
330902-00-90-10-01-0Part Number:
330902-00-90-10-01-05Weight:
0.08kgDimensions:
1.3x1.2x66cmManufacture Year:
The lastest yearPlace of Origin:
USACertification:
COODescription:

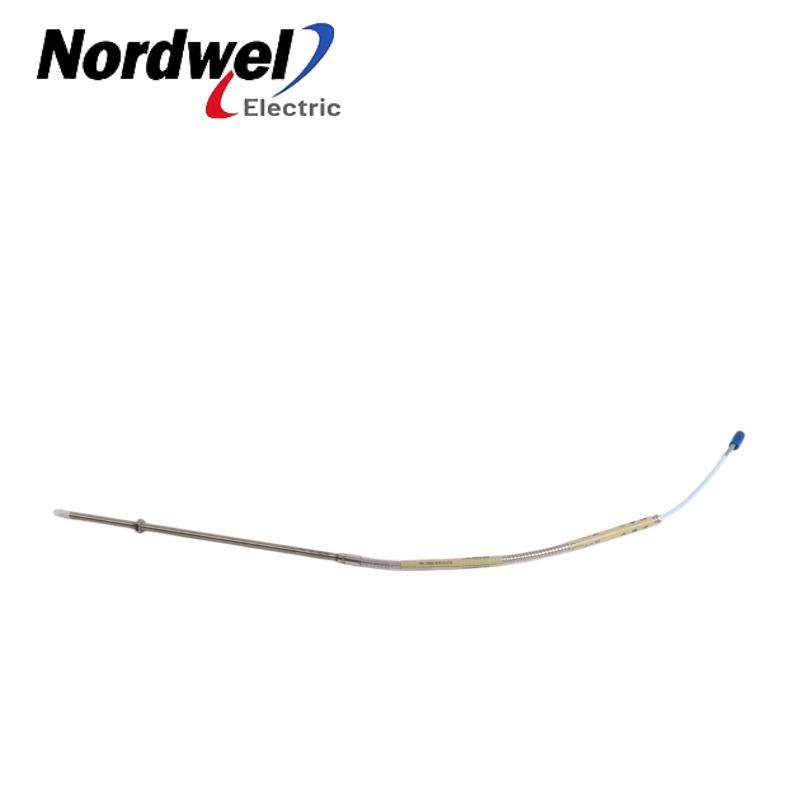

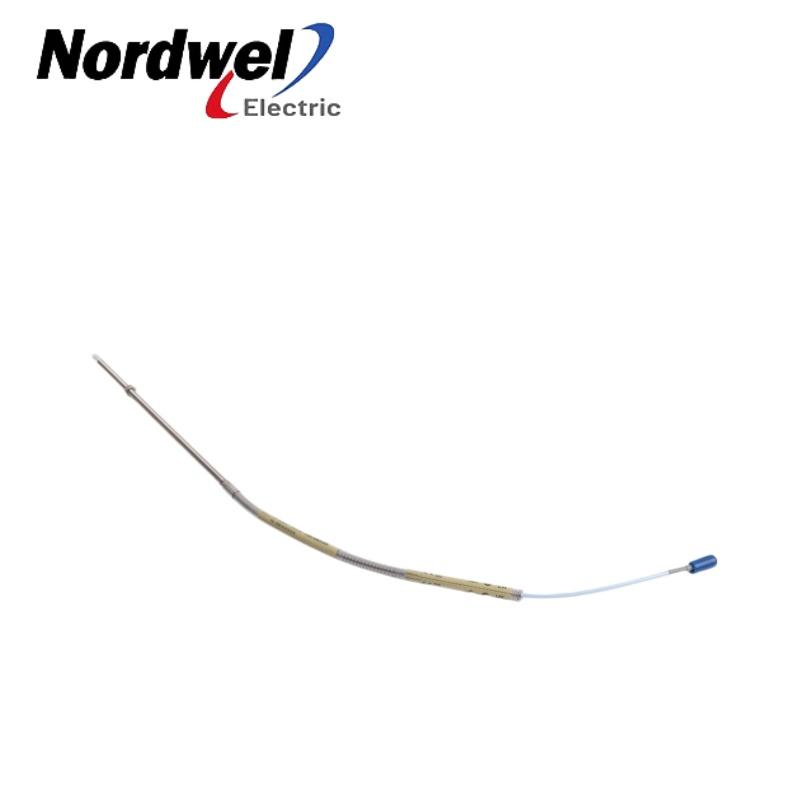

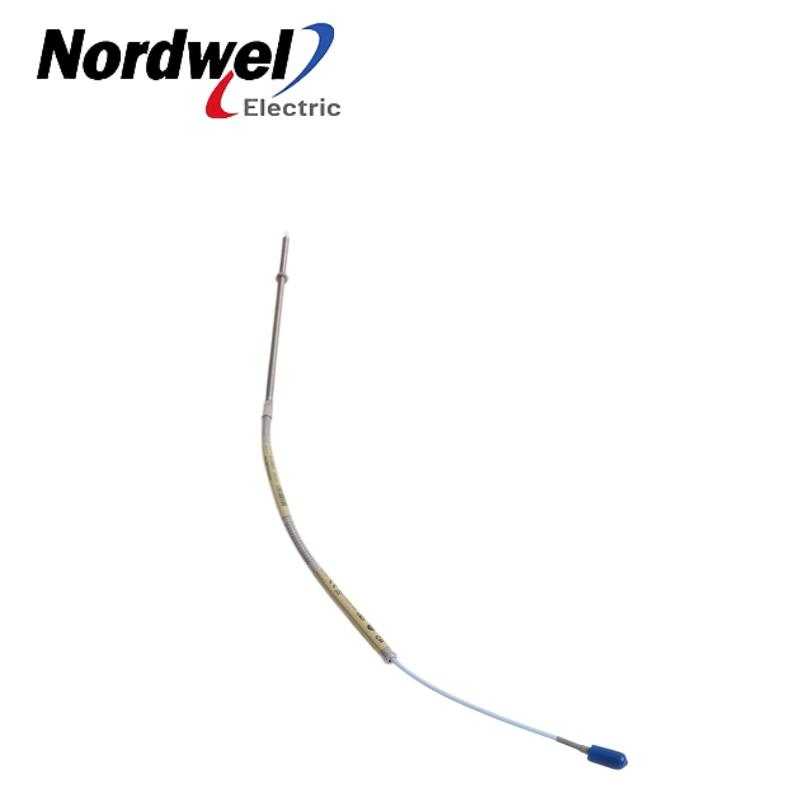

3300 NSv Proximity Probes
Product Information
|
Model number |
330902-00-90-10-01-05 |
|
Country of origin |
USA |
|
Condition |
Brand New |
|
Lead time Warranty |
in stock |
Contact us for the latest pricing and discount information
Stella
Sales Manager:
Send an email:
Contact in Whatsapp:
Detailed Technical Specifications of the 330902-00-90-10-01-05
Model decoding – 330902 = 3300 NSv probe, 1/4‑28 UNF thread, with armor. 00 = 0.0 in unthreaded length. 90 = 9.0 in (228.6 mm) case length. 10 = 1.0 m cable. 01 = ClickLoc connector + protector + standard cable. 05 = multiple approvals.
General – For tight installations (centrifugal/refrigeration/process gas compressors) where standard 5/8 mm systems are restricted. Ideal for small shafts (<51 mm) or small flat targets (<15 mm). Applications: radial vibration/position, axial position, tachometer, Keyphasor. ASF = 7.87 V/mm (200 mV/mil).
Electrical – ISF = 7.87 V/mm +12.5%/–20% over 0–45 °C. Linear range = 1.5 mm (60 mils) from ~0.25 to 1.75 mm (–1 to –13 Vdc). Recommended gap = 1.0 mm (40 mils). Frequency response = 0–10 kHz (+0, –3 dB) with up to 305 m wiring. Probe DC resistance (1.0 m) = 4.2 ± 0.5 Ω. Cable capacitance = 69.9 pF/m.
Mechanical – Tip = PPS; case = AISI 304 SST; armor = flexible AISI 302 SST (with/without FEP). Cable = 75 Ω coaxial FEP; connectors = gold‑plated brass. Min bend radius = 25.4 mm (1.0 in). Tensile strength = 220 N (50 lb). Weight: probe 14–150 g, cable 45 g/m, Proximitor 255 g.
Installation torque – 1/4‑28: recommended 5.1 N·m (45 in·lb), max 7.3 N·m (65 in·lb). 3/8‑24: recommended 11.3 N·m (100 in·lb), max 33.9 N·m (300 in·lb). Reverse mount: 7.5 N·m (66 in·lb) recommended, max 22.6 N·m (200 in·lb). Connectors finger‑tight only (max 0.565 N·m). Max thread engagement (1/4‑28) = 0.375 in (9.5 mm) – exceeding may cause binding and voids warranty.
Environmental – Probe operating/storage: –52 to +177 °C. Below –34 °C may damage pressure seal. Proximitor: operating –52 to +100 °C, storage –52 to +105 °C. Humidity: 100% condensing (non‑submersible with protected connectors), tested to IEC 68‑2‑3. Pressure seal uses Viton® O‑ring; probes are not pressure‑tested before shipment.
Certifications – SIL 2/3; EMC (EN 61000‑6‑2/‑4); FCC Part 15; RoHS; China RoHS (EFUP 15 years); Maritime; hazardous area (cNRTLus Class I Zone 0/2, ATEX/IECEx Ex ia/na IIC).
Special features – ClickLoc connectors lock with finger‑tight torque (audible click). TipLoc and CableLoc provide robust tip‑body bond and 220 N pull strength. Connector protectors recommended. Silicone tape supplied but not for turbine oil exposure.
|
