Bently Nevada identifies this complete code as a 3300 XL 8 mm probe with 3/8-24 UNF thread and armor: 0.4 in unthreaded length, 2.5 in overall case length, 1.0 m total length and a standard-cable ClickLoc connector. The 00 suffix indicates that agency approval is not required for this order.
Brand:
Bently NevadaItem NO.:
330102-04-25-10-02-0Goods Stock:
1Part Number:
330102-04-25-10-02-00Manufacture Year:
USADescription:

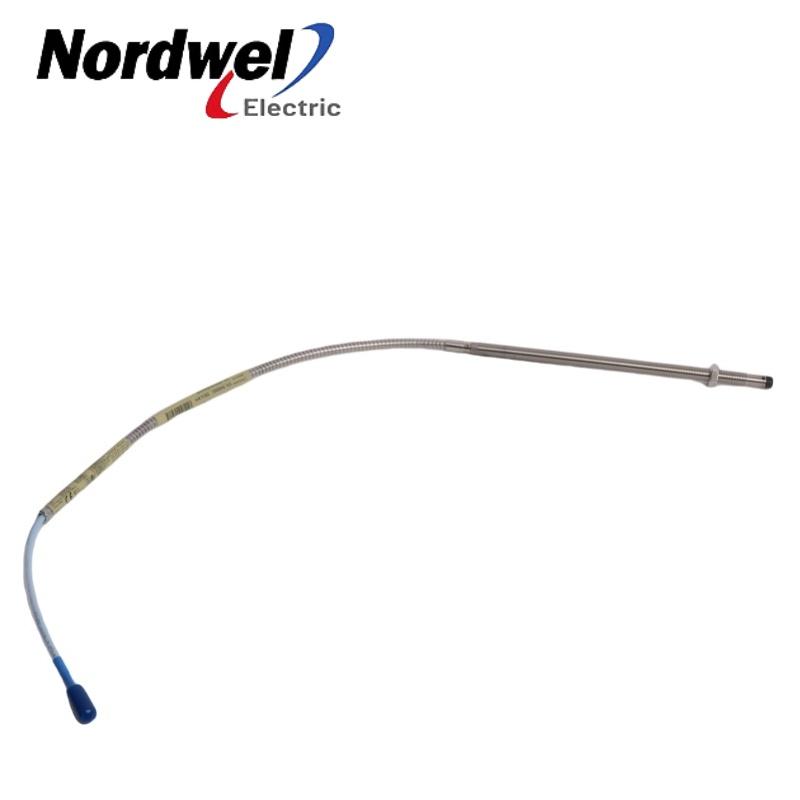

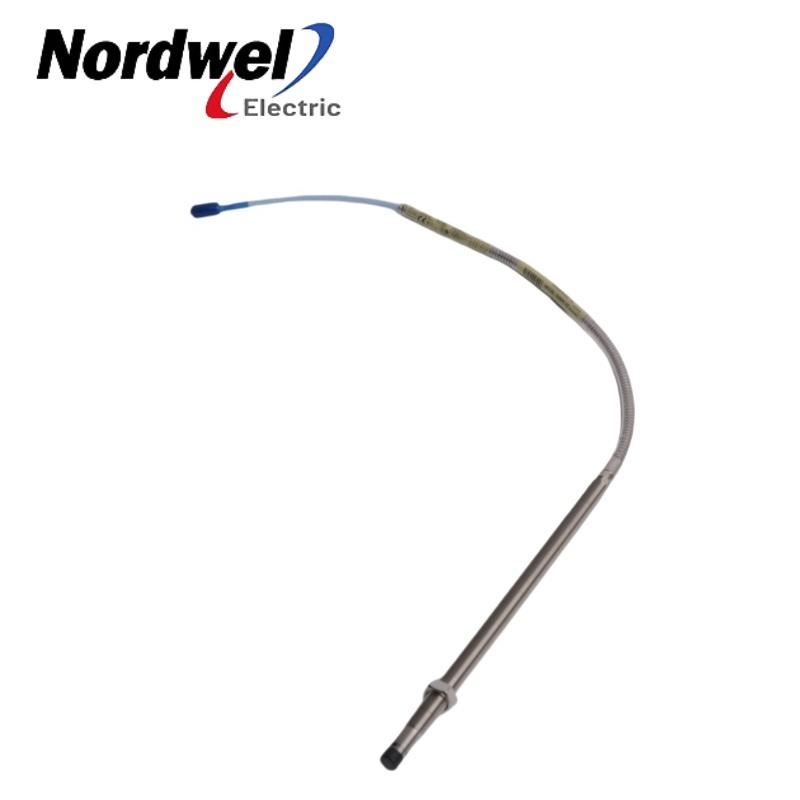

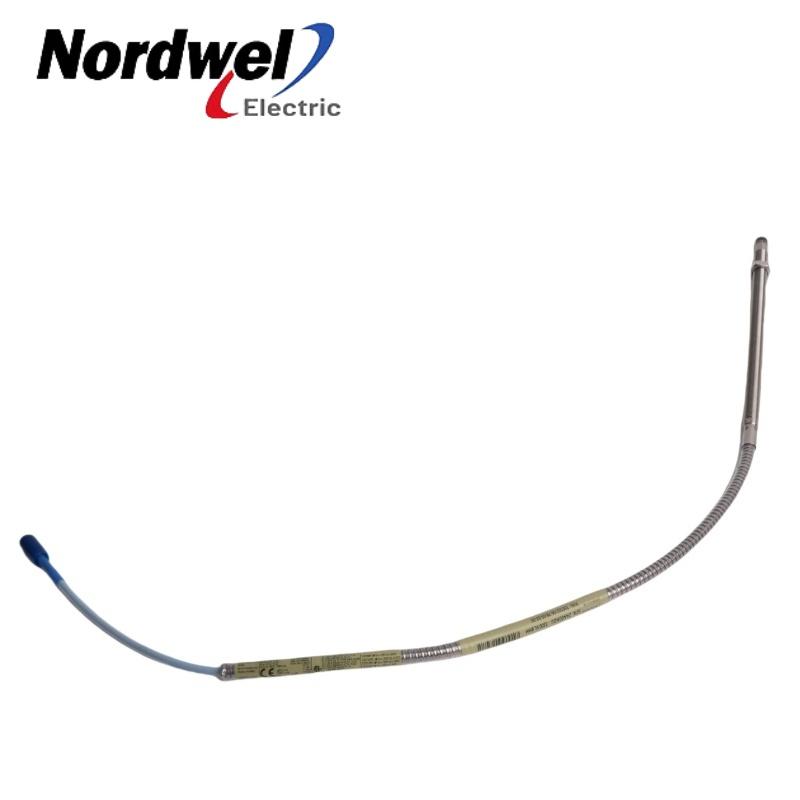

Bently Nevada identifies 330102-04-25-10-02-00 as a 3300 XL 8 mm probe with 3/8-24 UNF thread and armor.This complete ordering code identifies a 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor. The suffixes specify 0.4 in unthreaded length, 2.5 in overall case length, 1.0 m total length and a miniature coaxial ClickLoc connector with standard cable. The 00 agency-approval suffix means no agency approval is required for this order.
330102 denotes the 3/8-24 UNF armored 3300 XL 8 mm probe. Each suffix must be retained for exact ordering.
3300 XL 8 mm Proximity Transducer System; non-contacting proximity probe for a matched 8 mm measurement chain.
| Base model | 330102 |
|---|---|
| Probe thread | 3/8-24 UNF |
| Armor | With armor |
| Unthreaded length | 0.4 in |
| Overall case length | 2.5 in |
| Total length | 1.0 m (3.3 ft) |
| Connector / cable | Miniature coaxial ClickLoc connector, standard cable |
| Agency approval suffix | 00 - no agency approval |
| Place of Origin | USA |
| Warranty | With 1 year warranty |
Send the complete probe code, required quantity, matched extension cable, Proximitor Sensor and installation record.
Published Nordwel product pages for configuration review.
3/8-24 UNF armored probe configuration.
Published product page3/8-24 UNF armored probe configuration.
Published product page3/8-24 UNF unarmored probe configuration.
Published product page3/8-24 UNF unarmored probe configuration.
Published product pagePublished 3300 XL Proximitor Sensor reference.
Published product pagePublished 3300 XL Proximitor Sensor reference.
Published product pageNordwel supports exact-code checking, sensor-chain review, official-document confirmation and quotation coordination.
Confirm all six code groups and the 330102 3/8-24 UNF armored-probe identity.
Check case length, cable length, connector and approval suffixes.
Match the 3300 XL 8 mm probe, extension cable, Proximitor Sensor and monitor input.
Check mounting thread, target clearance, probe orientation and cable routing.
Review datasheet 141194 Rev. AM and the installed-system maintenance record.
Stella coordinates quantity, destination, warranty and delivery requirements.
It is a 3300 XL 8 mm 3/8-24 UNF proximity probe with armor, configured by the complete suffix code.
No. It must be matched with the correct 3300 XL extension cable, Proximitor Sensor and monitor input.
No direct substitution should be assumed; compare every mechanical, cable, connector and approval option.
The 3300 XL 8 mm system supports non-contacting position and vibration measurement on fluid-film bearing machinery, plus Keyphasor reference and speed measurement. Final suitability depends on the complete sensor chain and manufacturer documentation.
Non-contacting measurement where the installed target, gap and matched 8 mm chain are confirmed.
Position-monitoring context subject to target geometry and system calibration review.
Reference-mark measurement where target geometry, probe gap and monitor configuration are verified.
Speed-measurement use requires confirmation against the manufacturer application guidance and complete installed system.
