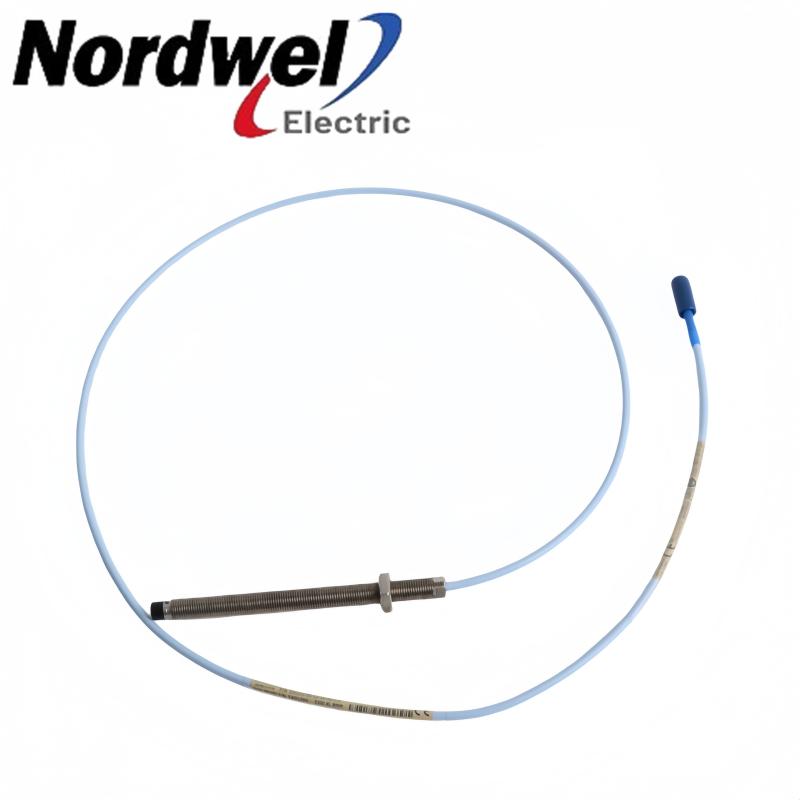

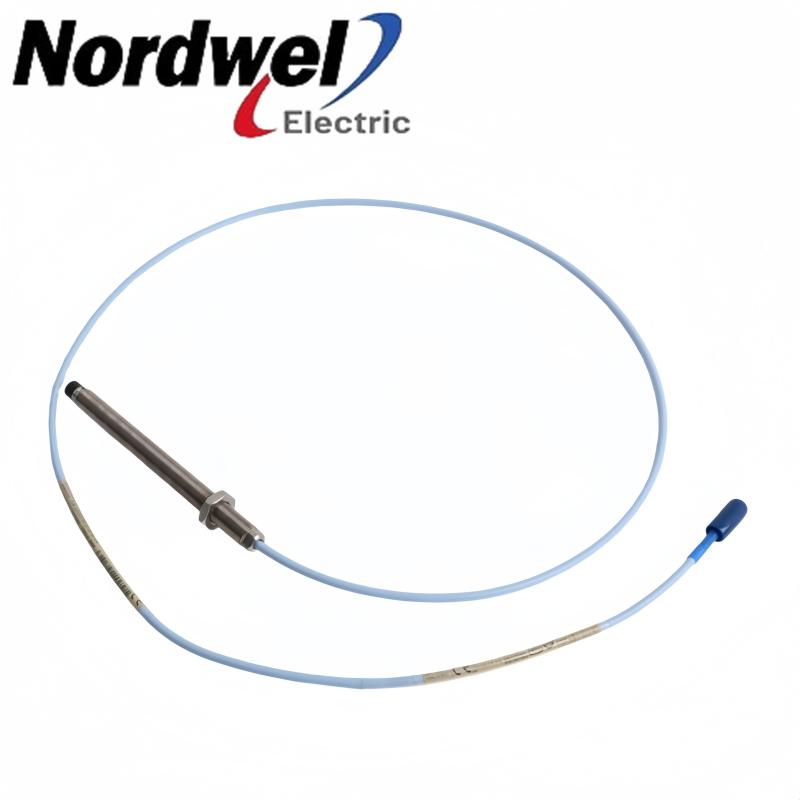

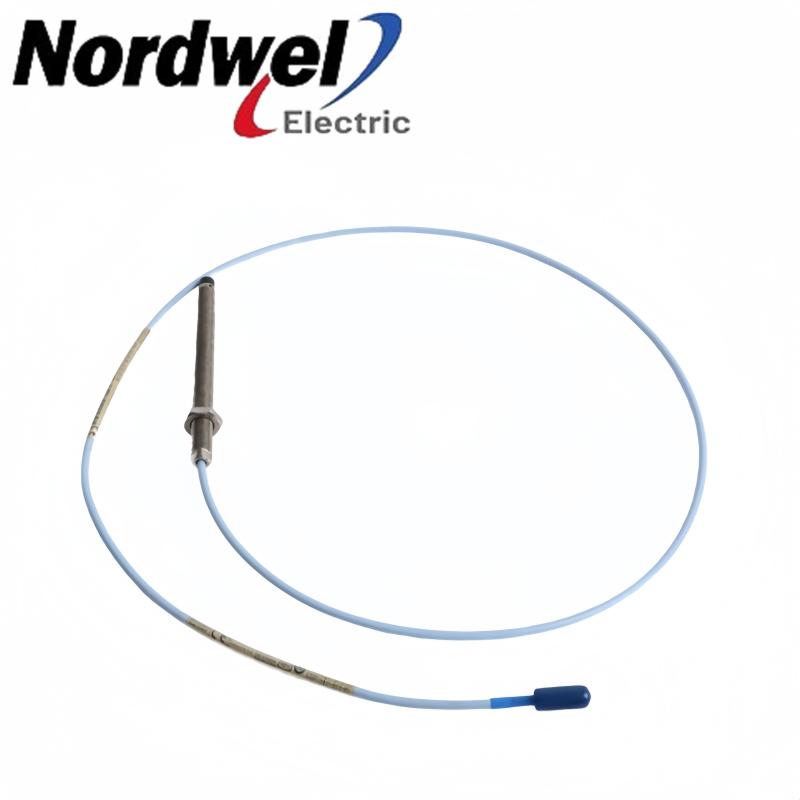

An M10x1 standard-mount probe without armor, configured for a 120 mm case, 1.0 m total length and FluidLoc cable.
Brand:
Bently NevadaGoods Stock:
1Part Number:
330103-00-12-10-12-05Description:
An M10x1 standard-mount probe without armor, configured for a 120 mm case, 1.0 m total length and FluidLoc cable.An M10x1 standard-mount probe without armor, configured for a 120 mm case, 1.0 m total length and FluidLoc cable.
| Unthreaded length | 0 mm |
|---|---|
| Overall case length | 120 mm |
| Total length | 1.0 m (3.3 ft) |
| Connector / cable | ClickLoc without protector; FluidLoc cable |
| Approval option | CSA, ATEX and IECEx |
| Probe tip | 8.0 mm (0.31 in) |
| System linear range | 2 mm (80 mils) |
| Scale factor | 7.87 V/mm (200 mV/mil) |
| Probe case material | AISI 303 or 304 stainless steel |
| Probe tip material | Polyphenylene sulfide (PPS) |
Source: 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM.
Verify the installed mounting, connection and environmental conditions before this exact configuration is removed or energized.
Match the complete designation to the installed mechanical arrangement, connection and measurement chain.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Selected specialist-brand products requested for regional projects and available on Nordwel.
Output-module reference for control-system projects.
Tiffany-verified targetEthernet-module reference for network compatibility review.
Tiffany-verified targetProximity-sensor reference for machinery applications.
Tiffany-verified targetAccelerometer reference for vibration-monitoring projects.
Tiffany-verified targetProcessor-module reference for installed control systems.
Tiffany-verified targetAnalog-input board reference for replacement review.
Tiffany-verified targetMatch the complete designation 330103-00-12-10-12-05, the installed nameplate, mechanical arrangement and signal-chain record. A base family match alone is not sufficient.
330103-00-12-10-12-05 is reviewed here under 3300 XL 8 mm. Confirm the exact suffixes and any project-specific drawing before release.
Verify thread as M10x1, then compare every remaining ordering option with the installed assembly.
Confirm 120 mm case clearance and M10x1 thread condition. Keep the removal measurements and final inspection record with the maintenance package.
The reviewed interface is M10x1, without armor. Confirm the mating hardware, cable route, shielding and connector condition before energizing.
Not automatically. Nearby variants can differ in length, mounting, armor, connector or approval. Use the exact code and verify the complete system.
Use only the limits stated for 3300 XL 8 mm in the manufacturer document, then confirm the actual temperature, moisture, hazardous-area and mechanical conditions at the site.
Keep the nameplate, installed dimensions, cable and connector checks, initial gap or baseline signal where applicable, diagnostics and controlled functional-test results.
Provide 330103-00-12-10-12-05, quantity, destination, clear nameplate images, installed-system context, mating parts and required schedule. Tiffany Guan can coordinate the exact-order review.
Only values traceable to 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM are used. Site-specific suitability still requires the approved project documentation and installed configuration.
