Brand:
Bently NevadaItem NO.:
330103-00-22-50-12-0Part Number:
330103-00-22-50-12-00Weight:
0.05kgDimensions:
1.7x1.5x65.5cmManufacture Year:
The lastest yearPlace of Origin:
USACertification:
COODescription:

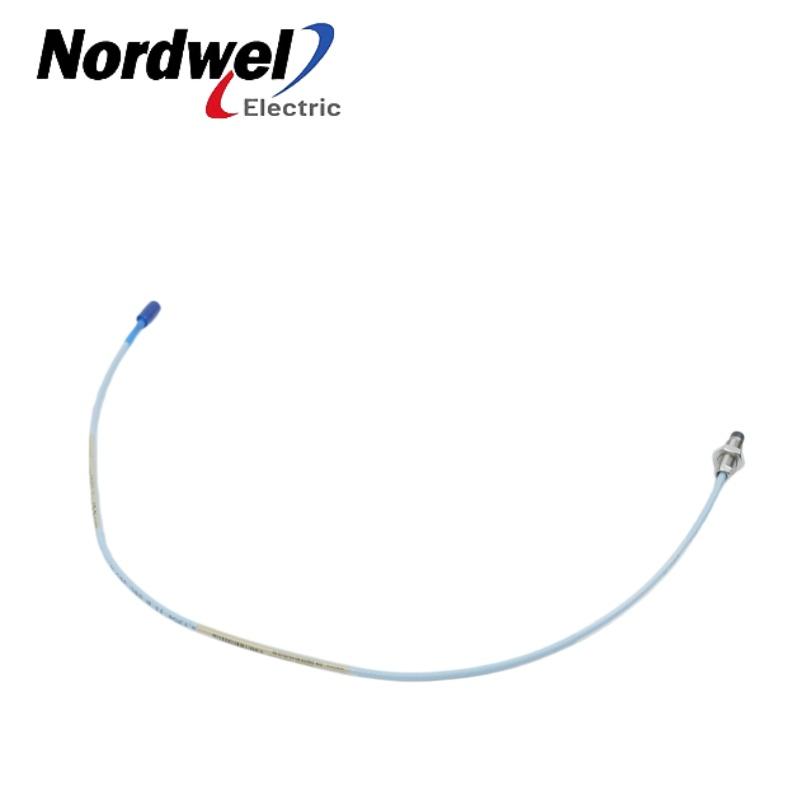

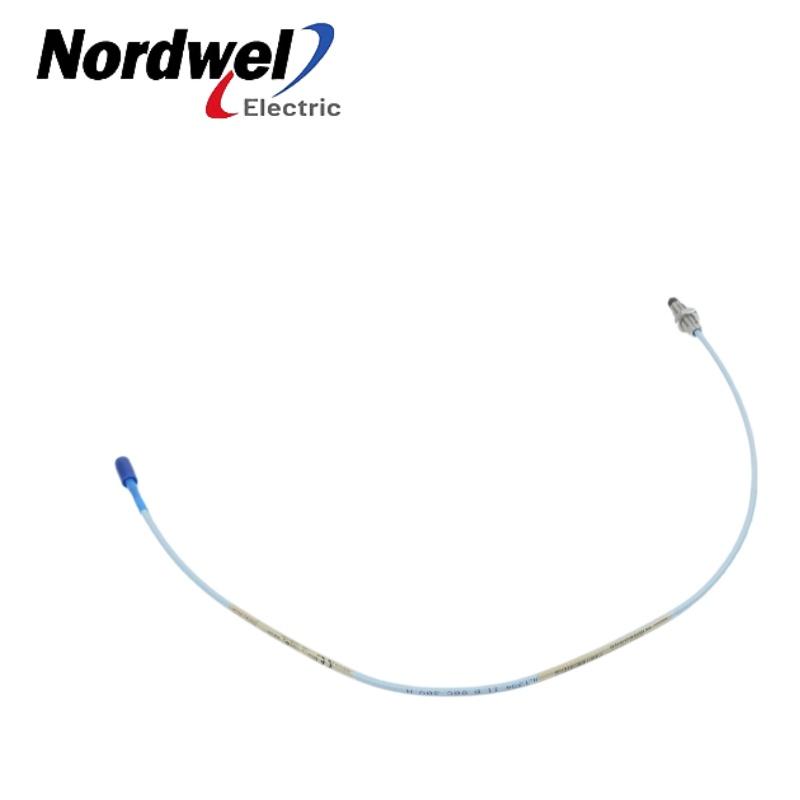

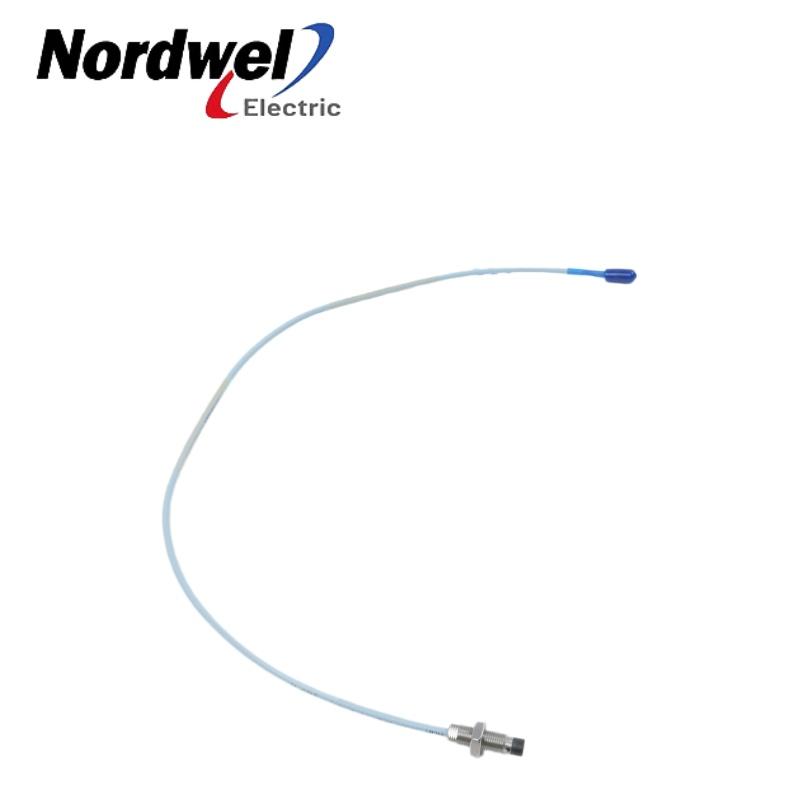

Proximity Probes
Product Information
Model number
330103-00-22-50-12-00
Country of origin
USA
Condition
Brand New
Lead time Warranty
in stock
Dimensions
1.7x1.5x65.5cm
Weight
0.05kg
Contact us for the latest pricing and discount information
Stella
Sales Manager:
Send an email:
Contact in Whatsapp:
Theory of Operation
This variant pushes case length to 220 mm (with M10×1 threads, no armor), offering the deepest insertion among the 330103 series. The 5.0 m system again uses FluidLoc cable without a connector protector and lacks certifications. The extended case length does not affect the electrical transfer function; the probe’s sensing coil remains at the tip, and the cable resistance increases slightly (approximately 8.17 Ω for the 3 m probe section, plus extension), but the Proximitor compensates for cable losses. In practice, the eddy‑current loop generates an output that is inversely proportional to the gap from 0.25 to 2.3 mm, with a recommended bias of ‑9 Vdc for radial vibration. This configuration addresses extreme mounting depth requirements while maintaining full interchangeability with other XL 8 mm components.
|
