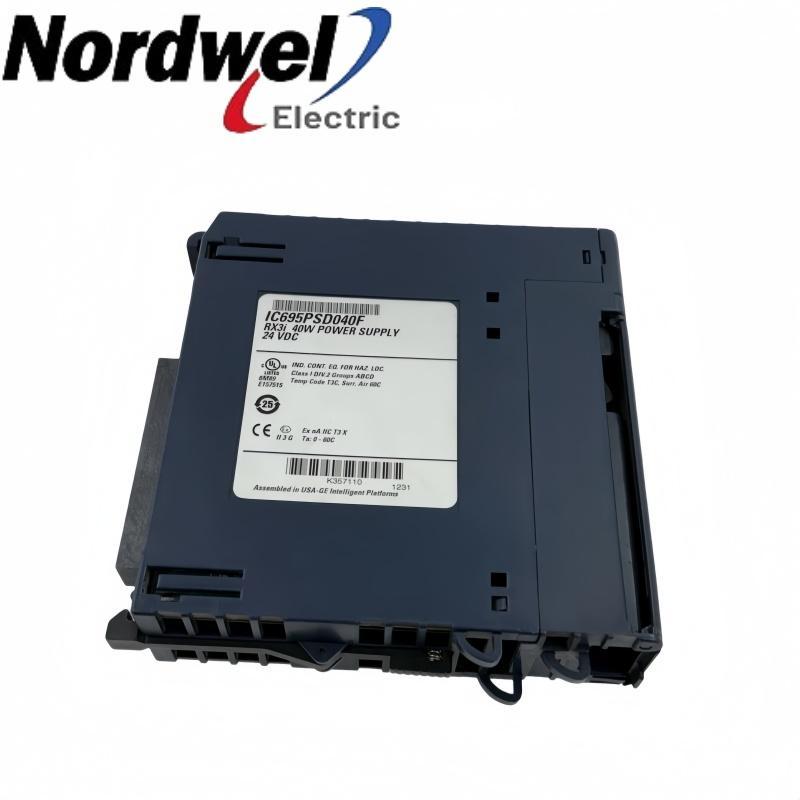

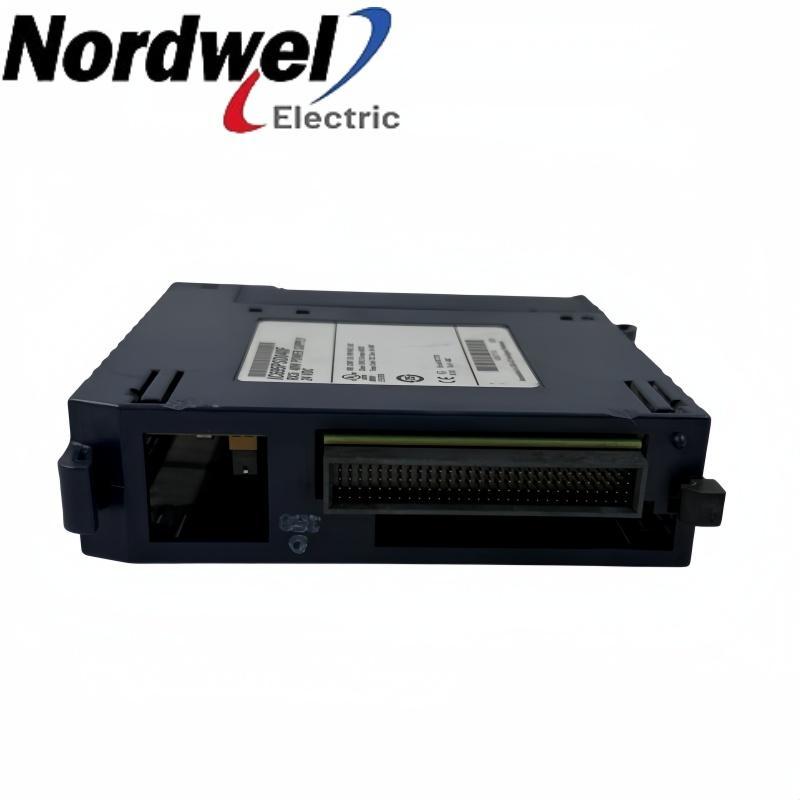

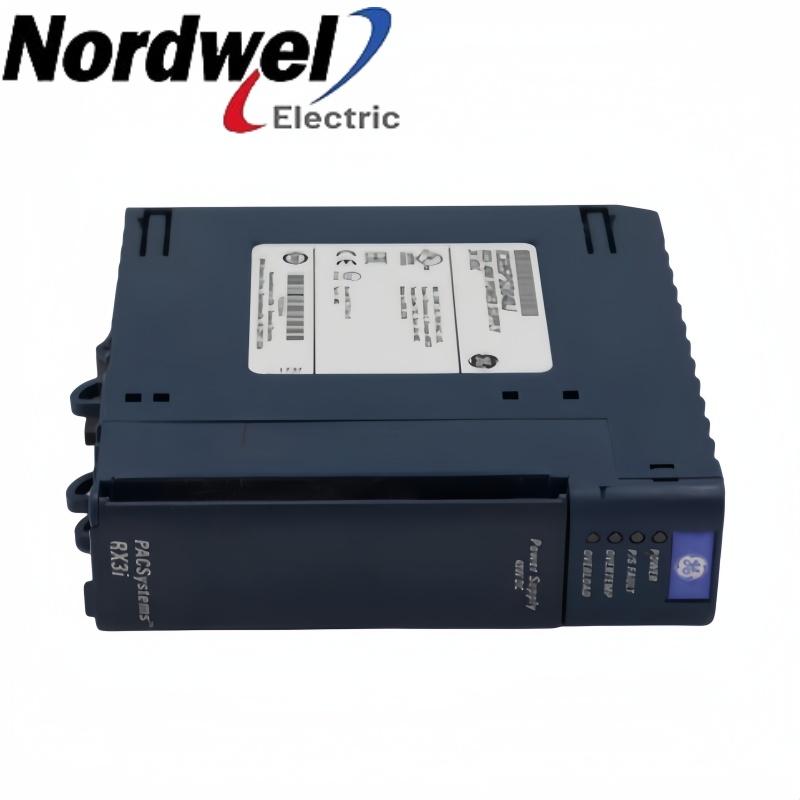

A one-slot 24 VDC RX3i backplane supply with 40 W total output and Power, fault, overload and overtemperature indication.
Brand:
General ElectricGoods Stock:
1Part Number:
IC695PSD040MDescription:
A one-slot 24 VDC RX3i backplane supply with 40 W total output and Power, fault, overload and overtemperature indication.Supports racks with an appropriate 24 VDC source.
Occupies one universal-backplane slot.
Non-isolated construction makes grounding compatibility essential.
Preserves the certification-label revision in procurement.
| Exact catalogue number | IC695PSD040M |
|---|---|
| Nominal input | 24 VDC |
| Operating input range | 18–30 VDC |
| Total output capacity | 40 W across backplane loads |
| Backplane occupancy | One slot |
| Input-to-backplane isolation | None |
| Terminal wire range | AWG 14–22, one conductor per terminal |
| Load sharing / redundancy | Not supported |
| M revision context | October 2021 label update for new certifications |
| Operating temperature | 0 to 60 °C |
| Storage temperature | −40 to +85 °C |
| Relative humidity | 5% to 95%, noncondensing |
Values are limited to published Emerson/GE product, installation or release documentation. The complete suffix is retained for exact-model control.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Use this six-step review to keep quotation, compatibility and receiving decisions tied to the complete requested code.
Use IC695PSD040M exactly as shown on the label or requisition.
Supplies a universal backplane with up to 40 W from an 18–30 VDC, non-isolated input.
Identify the PACSystems RX3i universal backplane hardware and surrounding configuration.
Compare power, backplane, network, optical or firmware requirements as applicable.
Include environment, approvals, shutdown window and receiving inspection needs.
Send the evidence to Tiffany Guan for an exact-code quotation.
Selected specialist-brand products requested for regional projects and available on Nordwel.
Industrial replacement reference for exact-model review.
Tiffany-verified targetIndustrial replacement reference for exact-model review.
Tiffany-verified targetIndustrial replacement reference for exact-model review.
Tiffany-verified targetIndustrial replacement reference for exact-model review.
Tiffany-verified targetIndustrial replacement reference for exact-model review.
Tiffany-verified targetIndustrial replacement reference for exact-model review.
Tiffany-verified targetModel-specific answers for compatibility, installation, replacement and commissioning questions.
Match the complete IC695PSD040M code.
Record the installed PACSystems RX3i universal backplane context.
Back up settings, firmware or network details where applicable.
Plan measurable checks before return to service.
The release notice identifies IC695PSD040M as an October 2021 revision with labels updated to show compliance with new certifications.
No. The published base specification states that input-to-backplane isolation is not provided.
The supported operating range is 18–30 VDC, with 24 VDC nominal input.
Because the supply is non-isolated; the official guidance excludes floating and positive-grounded source arrangements.
The official rating is 40 W total across the backplane loads, so all rail demands must be included.
No. This 40 W DC supply design does not support load sharing or redundancy.
Use AWG 14–22 wiring and one conductor per terminal, with site-approved preparation and torque.
Verify the full label, physical condition, terminal condition and specified revision before installation.
Confirm normal Power indication and absence of P/S Fault, Overload and Overtemperature conditions at operating load.
Send the complete code, label photo, input-source details, grounding arrangement, rack load, quantity and destination.
Directory links stay within Nordwel; use the contact block above for an exact-model review.
The checkpoint list supports enquiry preparation; the installed design and official instructions remain controlling.
A one-slot 24 VDC RX3i backplane supply with 40 W total output and Power, fault, overload and overtemperature indication.
Supplies a universal backplane with up to 40 W from an 18–30 VDC, non-isolated input.
M revision released with updated certification labelling; the complete suffix is preserved for controlled receiving.
A one-slot 24 VDC RX3i backplane supply with 40 W total output and Power, fault, overload and overtemperature indication.
Use the complete order code for controlled maintenance and receiving.
Reduces ambiguity by retaining the complete suffix.
Keeps installation checks aligned with official parameters.
Supports faster quotation review with clear site evidence.
Creates a practical commissioning record for maintenance teams.
Use this reference to prepare the enquiry and installation package for IC695PSD040M.
