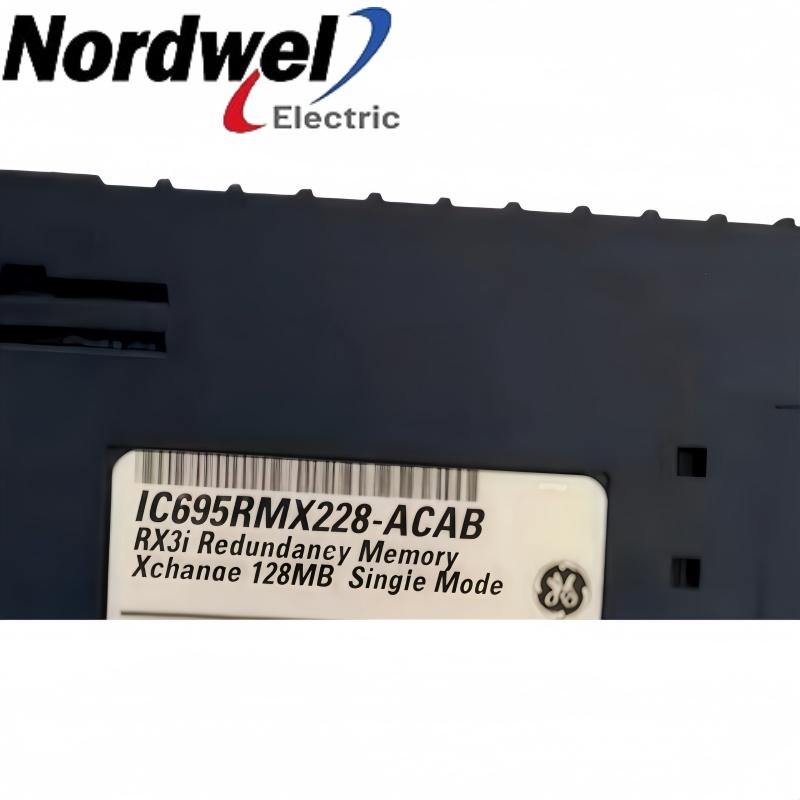

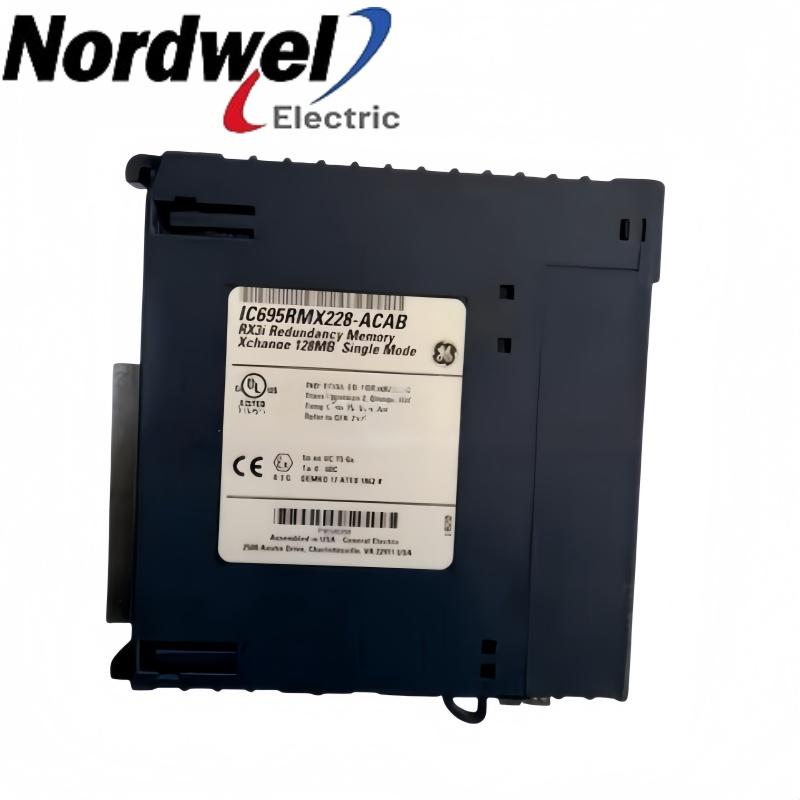

A 128 MB, single-mode optical reflective-memory module for deterministic data exchange and supported RX3i redundancy links.
Brand:
General ElectricGoods Stock:
1Part Number:
IC695RMX228-ACABDescription:
A 128 MB, single-mode optical reflective-memory module for deterministic data exchange and supported RX3i redundancy links.Provides the dedicated exchange path in supported hot-standby designs.
Shares written data deterministically around the optical loop.
Provides 128 MB of reflective memory.
Pairs ACAB hardware identity with the documented firmware baseline.
| Exact catalogue number | IC695RMX228-ACAB |
|---|---|
| Module role | Redundancy Memory Xchange / reflective-memory node |
| Memory capacity | 128 MB |
| Optical interface | Single-mode transceiver |
| Network scale | Up to 256 nodes |
| Topology | Daisy-chained optical loop |
| Compatibility family | 5565-family reflective-memory devices |
| Documented firmware | Version 2.01 for the ACAB release |
| Release date | March 2016 |
| System use | Reflective-memory network or dedicated hot-standby link |
Values are limited to published Emerson/GE product, installation or release documentation. The complete suffix is retained for exact-model control.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Use this six-step review to keep quotation, compatibility and receiving decisions tied to the complete requested code.
Use IC695RMX228-ACAB exactly as shown on the label or requisition.
Operates as a reflective-memory network node or as the dedicated link between CPUs in an RX3i hot-standby redundancy system.
Identify the PACSystems RX3i redundancy and reflective memory hardware and surrounding configuration.
Compare power, backplane, network, optical or firmware requirements as applicable.
Include environment, approvals, shutdown window and receiving inspection needs.
Send the evidence to Tiffany Guan for an exact-code quotation.
Selected specialist-brand products requested for regional projects and available on Nordwel.
Industrial replacement reference for exact-model review.
Tiffany-verified targetIndustrial replacement reference for exact-model review.
Tiffany-verified targetIndustrial replacement reference for exact-model review.
Tiffany-verified targetIndustrial replacement reference for exact-model review.
Tiffany-verified targetIndustrial replacement reference for exact-model review.
Tiffany-verified targetIndustrial replacement reference for exact-model review.
Tiffany-verified targetModel-specific answers for compatibility, installation, replacement and commissioning questions.
Match the complete IC695RMX228-ACAB code.
Record the installed PACSystems RX3i redundancy and reflective memory context.
Back up settings, firmware or network details where applicable.
Plan measurable checks before return to service.
It can act as a node on a reflective-memory network or as the dedicated connection between CPUs in a supported RX3i hot-standby redundancy system.
Official RX3i documentation identifies IC695RMX228 as a 128 MB module.
The official CPU and module documentation identifies the IC695RMX228 with a single-mode transceiver.
The official installation information supports up to 256 nodes in the daisy-chained optical loop.
The exact official release notice lists IC695RMX228-ACAB hardware with firmware version 2.01, dated March 2016.
Yes. The official installation information describes compatibility with 5565-family reflective-memory devices.
Record node number, loop order, fiber routing, installed firmware, redundancy role and application memory map.
Confirm clean single-mode connections, correct transmit/receive orientation and continuity of the optical loop.
The ACAB release notice records a rare power-cycle loss-of-module condition that can be cleared by a subsequent power cycle; investigate recurrence rather than treating it as routine.
Provide the full ACAB code, label and firmware photos, network role, fiber details, quantity and destination.
Directory links stay within Nordwel; use the contact block above for an exact-model review.
The checkpoint list supports enquiry preparation; the installed design and official instructions remain controlling.
A 128 MB, single-mode optical reflective-memory module for deterministic data exchange and supported RX3i redundancy links.
Operates as a reflective-memory network node or as the dedicated link between CPUs in an RX3i hot-standby redundancy system.
Exact IC695RMX228-ACAB hardware release with firmware 2.01; complete code retained for system and receiving control.
A 128 MB, single-mode optical reflective-memory module for deterministic data exchange and supported RX3i redundancy links.
Use the complete order code for controlled maintenance and receiving.
Reduces ambiguity by retaining the complete suffix.
Keeps installation checks aligned with official parameters.
Supports faster quotation review with clear site evidence.
Creates a practical commissioning record for maintenance teams.
Use this reference to prepare the enquiry and installation package for IC695RMX228-ACAB.
