Bently Nevada ordering documentation identifies 21000-15-10-00-166-03-02 as a configured 21000 aluminum proximity probe housing assembly with legacy 300 nuclear probe option A15.
Brand:
Bently NevadaItem NO.:
21000-15-10-00-166-0Goods Stock:
1Part Number:
21000-15-10-00-166-03-02Weight:
Confirm before orderingDimensions:
Housing A 83.3 mm; B 161.6 mm; E 26.7 mm; penetration 16.6 inManufacture Year:
Confirm before orderingPlace of Origin:
USACertification:
Confirm nameplate and applicable revisionDescription:

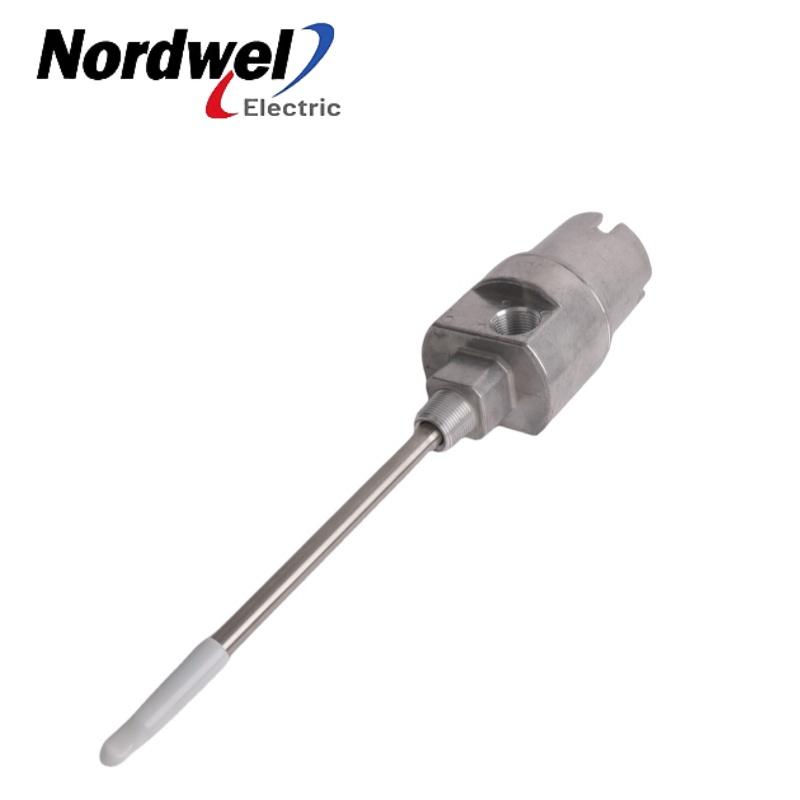

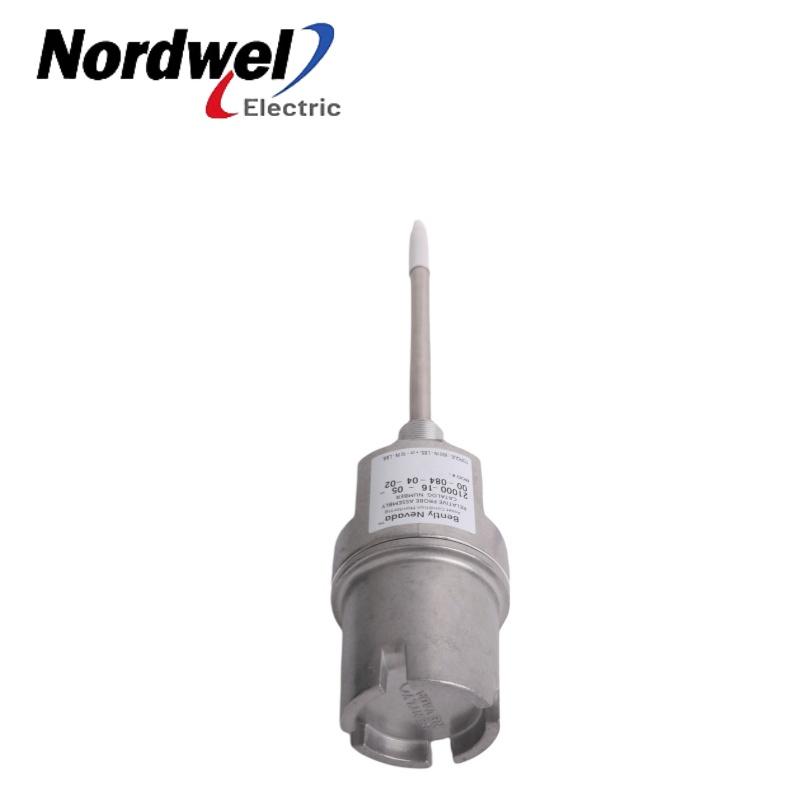

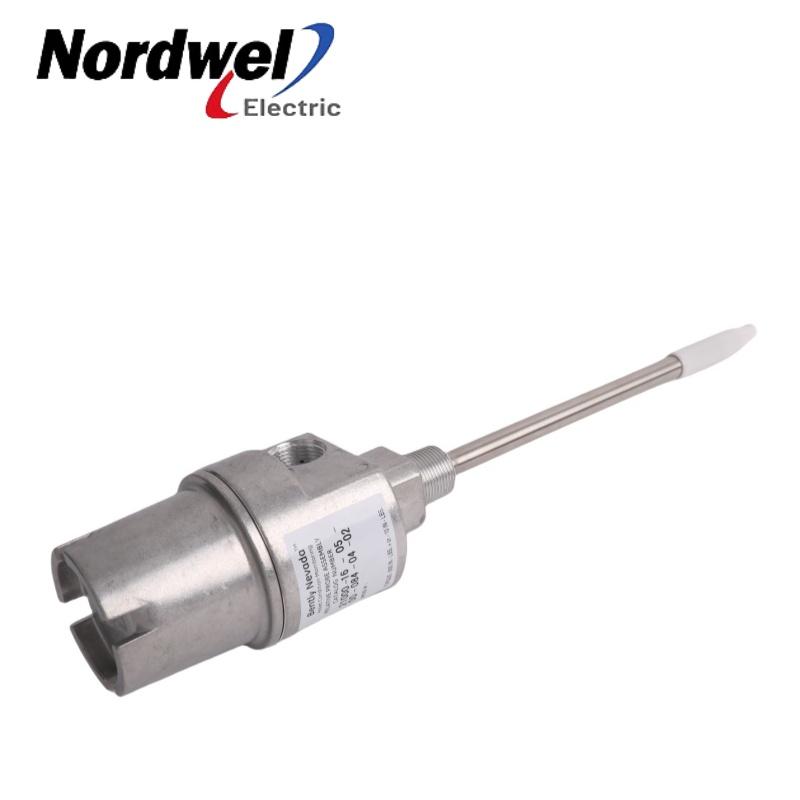

Bently Nevada 21000-15-10-00-166-03-02 is an aluminum 21000 proximity probe housing assembly with legacy 300 nuclear probe option A15, 1.0 m cable, no standoff adapter, 16.6 in penetration, option 03 conduit hardware and a 3/4-14 NPT mounting thread.Bently Nevada Datasheet 141600 defines the 21000 aluminum proximity probe housing assembly and its AA-BB-CC-DDD-EE-FF ordering format. Legacy manufacturer revision R identifies option A15 as the 300 nuclear probe; the current Rev. AC no longer lists A15, so nameplate and document-revision confirmation are required.
| Housing family | 21000 aluminum body with 304 stainless steel sleeve |
|---|---|
| Probe option | 15 - legacy 300 nuclear probe; verify applicable revision |
| Probe cable | 10 - 1.0 m (39 in) |
| Standoff adapter | 00 - none |
| Probe penetration | 166 - 16.6 in (approximately 422 mm) |
| Fittings | 03 - plug, NPT reducer and cable seal grip with grommets |
| Mounting thread | 02 - 3/4-14 NPT |
| Place of Origin | USA |
| Warranty | With 1 year warranty |
Source: Bently Nevada Datasheet 141600 Rev. AC. Legacy option A15 is identified in archived manufacturer revision R. Origin and warranty are Nordwel commercial supply information.
Document the as-found housing, probe position and conduit route before removal.
Review the legacy probe identity and the complete installed geometry, not only the 21000 housing family.
Configured 21000 probe housing assembly
21000-16-10-15-144-03-02Configured 21000 probe housing assembly
21000-16-05-00-055-03-02Configured 21000 probe housing assembly
Configured 21000 probe housing assembly
21000-28-05-40-028-04-02Configured 21000 probe housing assembly
21000-28-05-00-076-04-02Configured 21000 probe housing assembly
AC 800M controller unit
PSM0004 2RCA025059A0001RPower supply module
1SAP176000R0080 CM5640-2ETHCommunication interface module
Tachometer module reference
3500/53 133396-01Overspeed detection system reference
3500/32M 149986-02NCRelay module reference
DeltaV I/O module reference
KJ4110X1-BA1 12P1867X012DeltaV carrier reference
12P2533X042 KJ3222X1-EA1DeltaV I/O module reference
Redundancy module reference
6SL3040-1MA01-0AA0SINAMICS control unit reference
6GK5208-0BA00-2AB2 XB208Industrial Ethernet switch reference
Drive-system component reference
1768-PA3 B01 PN:97323572CompactLogix power supply reference
1746-NI4SLC analog input module reference
Industrial control component reference
CRS-10-MBControl-system component reference
IC693ALG442-EBAnalog combination module reference
Remote terminal assembly reference
PAIH03 51304754-150Analog input processor reference
CC-TCNT01 51308307-175Control-network interface reference
Trusted system interface reference
T8311 PN:5020-101Trusted expander interface reference
S4000CH 32425-14Safety-system component reference
Published exact-model pages for series and suffix-code comparison.
Configured 21000 probe housing assembly; review its complete option code separately.
Published exact-model pageConfigured 21000 probe housing assembly; review its complete option code separately.
Published exact-model pageConfigured 21000 probe housing assembly; review its complete option code separately.
Published exact-model pageConfigured 21000 probe housing assembly; review its complete option code separately.
Published exact-model pageConfigured 21000 probe housing assembly; review its complete option code separately.
Published exact-model pageConfigured 21000 probe housing assembly; review its complete option code separately.
Published exact-model pageMatch the complete six-group code, installed nameplate, probe identity and applicable manufacturer-document revision.
Archived Bently Nevada Datasheet 141600 Rev. R identifies A15 as the 300 nuclear probe option; current Rev. AC omits it.
Option 10 identifies a 1.0 m (39 in) probe cable.
Option 00 identifies no standoff adapter.
The ordering convention expresses penetration in tenths of an inch; 166 corresponds to 16.6 in, approximately 422 mm.
Yes. The official datasheet requires support near the probe when C plus D exceeds 12 in.
A 3/4-14 NPT plug, a 3/4-14 to 1/2-14 NPT reducer, and a cable seal grip with grommets.
Option 02 identifies a 3/4-14 NPT mounting thread.
Not automatically. Probe, cable, geometry, conduit hardware and approvals can differ.
Provide the full code, quantity, destination, nameplate photos, installation dimensions, mating components and applicable documentation.
Published configured references for exact-model comparison only.
Confirm every item against the legacy probe documentation and installed assembly.
Verify nameplate and applicable manufacturer revision.
Confirm connector and complete measurement chain.
Required by the datasheet when C plus D exceeds 12 in.
Match fitting option 03 and selected grommet.
Confirm machine-case thread and available clearance.
Use the revision applicable to the installed legacy configuration.
