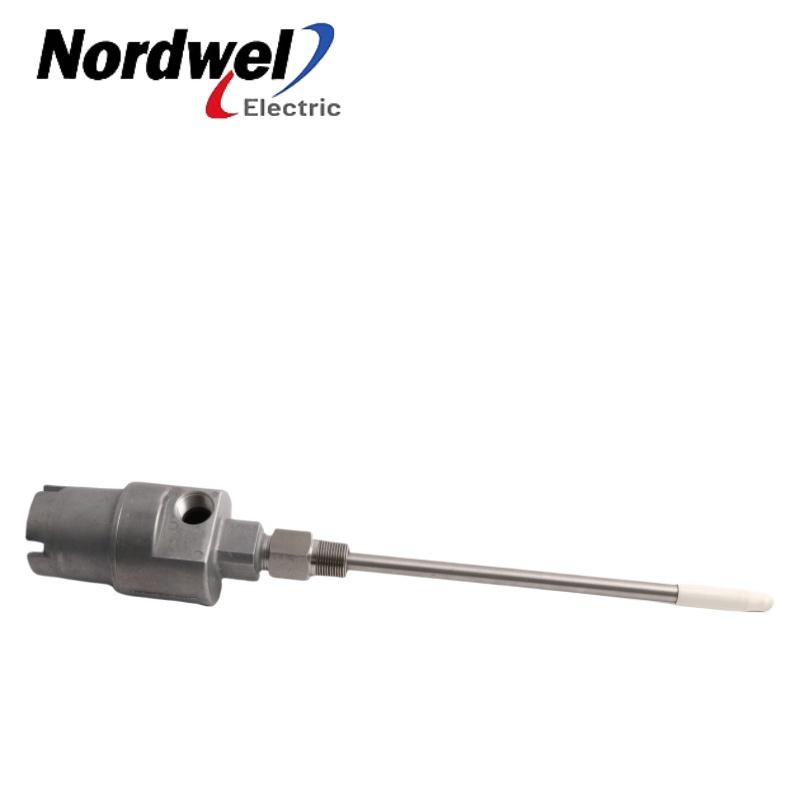

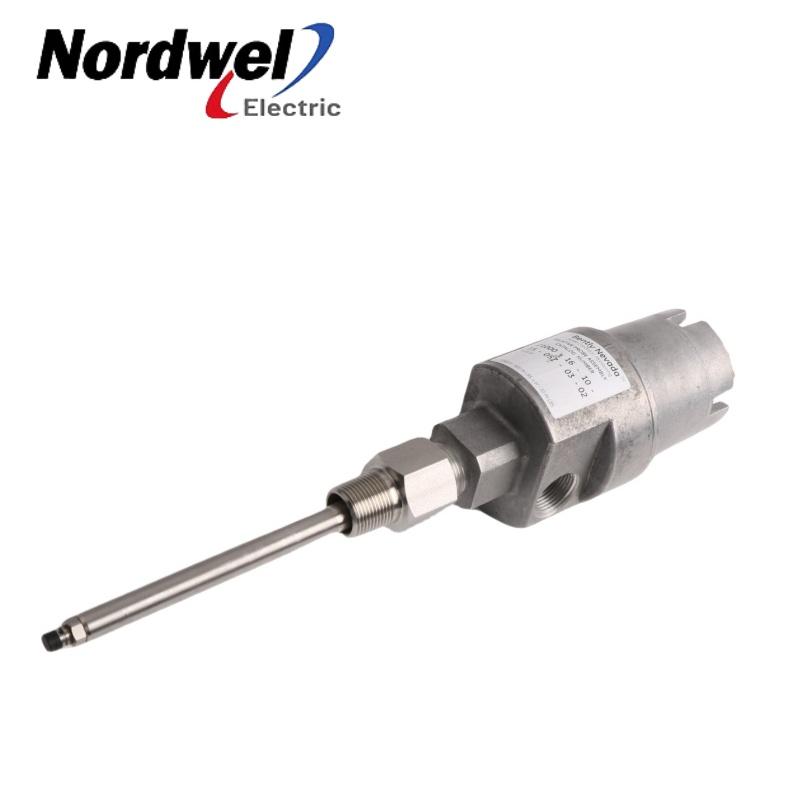

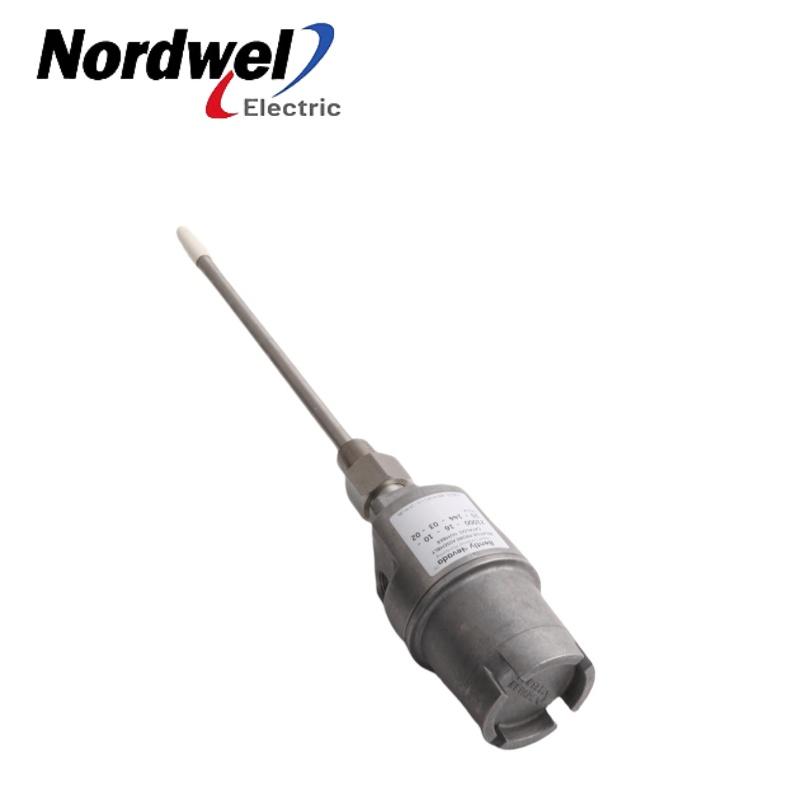

Bently Nevada identifies 21000-28-05-00-070-01-02 as a configured 21000 aluminum proximity probe housing assembly for a 3300 XL 8 mm probe.
Brand:
Bently NevadaItem NO.:
21000-28-05-00-070-0Goods Stock:
1Part Number:
21000-28-05-00-070-01-02Weight:
Confirm before orderingDimensions:
Housing A 83.3 mm; B 161.6 mm; E 26.7 mm; penetration 7.0 inManufacture Year:
Confirm before orderingPlace of Origin:
USACertification:
Confirm nameplate approvalDescription:
Bently Nevada 21000-28-05-00-070-01-02 is an aluminum 21000 proximity probe housing assembly with a 3300 XL 8 mm probe, 0.5 m cable, no standoff adapter, 7.0 in penetration, option 01 fittings and a 3/4-14 NPT mounting thread.Bently Nevada Datasheet 141600 Rev. AC defines the 21000 aluminum proximity probe housing assembly and the complete AA-BB-CC-DDD-EE-FF ordering format used by 21000-28-05-00-070-01-02.
| Housing family | 21000 aluminum |
|---|---|
| Probe option | 28 - 3300 XL 8 mm probe, selectable approvals |
| Probe cable | 05 - 0.5 m (20 in) |
| Standoff adapter | 00 - none |
| Probe penetration | 070 - 7.0 in (approximately 178 mm) |
| Fittings | 01 - 3/4-14 NPT explosion-proof fitting and plug |
| Mounting thread | 02 - 3/4-14 NPT |
| Place of Origin | USA |
| Warranty | With 1 year warranty |
Source: Bently Nevada Datasheet 141600 Rev. AC. Origin and warranty are Nordwel commercial supply information, not manufacturer datasheet specifications.
Document the as-found housing position and connected measurement chain before removal.
Review the complete installed geometry and measurement chain, not only the base housing family.
Configured 21000 probe housing assembly
21000-16-10-15-144-03-02Configured 21000 probe housing assembly
21000-16-05-00-055-03-02Configured 21000 probe housing assembly
Configured 21000 probe housing assembly
21000-28-05-40-028-04-02Configured 21000 probe housing assembly
21000-28-05-00-076-04-02Configured 21000 probe housing assembly
AC 800M controller unit
PSM0004 2RCA025059A0001RPower supply module
1SAP176000R0080 CM5640-2ETHCommunication interface module
Tachometer module reference
3500/53 133396-01Overspeed detection system reference
3500/32M 149986-02NCRelay module reference
DeltaV I/O module reference
KJ4110X1-BA1 12P1867X012DeltaV carrier reference
12P2533X042 KJ3222X1-EA1DeltaV I/O module reference
Redundancy module reference
6SL3040-1MA01-0AA0SINAMICS control unit reference
6GK5208-0BA00-2AB2 XB208Industrial Ethernet switch reference
Drive-system component reference
1768-PA3 B01 PN:97323572CompactLogix power supply reference
1746-NI4SLC analog input module reference
Industrial control component reference
CRS-10-MBControl-system component reference
IC693ALG442-EBVersaMax analog combination module reference
Remote terminal assembly reference
PAIH03 51304754-150Analog input processor reference
CC-TCNT01 51308307-175Control-network interface reference
Trusted system interface reference
T8311 PN:5020-101Trusted expander interface reference
S4000CH 32425-14Safety-system component reference
Published exact-model pages for series and option-code comparison.
Configured 21000 probe housing assembly; review the complete option code separately.
Published exact-model pageConfigured 21000 probe housing assembly; review the complete option code separately.
Published exact-model pageConfigured 21000 probe housing assembly; review the complete option code separately.
Published exact-model pageConfigured 21000 probe housing assembly; review the complete option code separately.
Published exact-model pageConfigured 21000 probe housing assembly; review the complete option code separately.
Published exact-model pageConfigured 21000 probe housing assembly; review the complete option code separately.
Published exact-model pageMatch the complete six-group code, housing nameplate, installed dimensions and measurement-chain record.
The official ordering guide identifies a 3300 XL 8 mm probe with selectable hazardous-area approvals.
Option 05 identifies a 0.5 m (20 in) probe cable.
Option 00 identifies no standoff adapter; confirm the as-installed geometry before release.
The official ordering convention expresses penetration in tenths of an inch; 070 corresponds to 7.0 in, approximately 178 mm.
Option 01 identifies one 3/4-14 NPT explosion-proof fitting and one 3/4-14 NPT plug.
Option 02 identifies a 3/4-14 NPT mounting thread.
Not automatically. Probe, cable, standoff, penetration, fittings and mounting thread can differ.
Provide the complete model, quantity, destination, nameplate photos, installation dimensions and mating measurement-chain references.
Bently Nevada 21000 and 24701 Proximity Probe Housing Assemblies Datasheet 141600 Rev. AC.
Published configured references for exact-model comparison only.
Confirm each item against the approved 3300 XL 8 mm system documentation.
Verify complete probe option and approval marking.
Match electrical length, connector and system family.
Confirm compatible system length and monitor interface.
Confirm sealing and area-approval requirements.
Confirm material, clearance and installed geometry.
Use the official ordering guide for final review.
