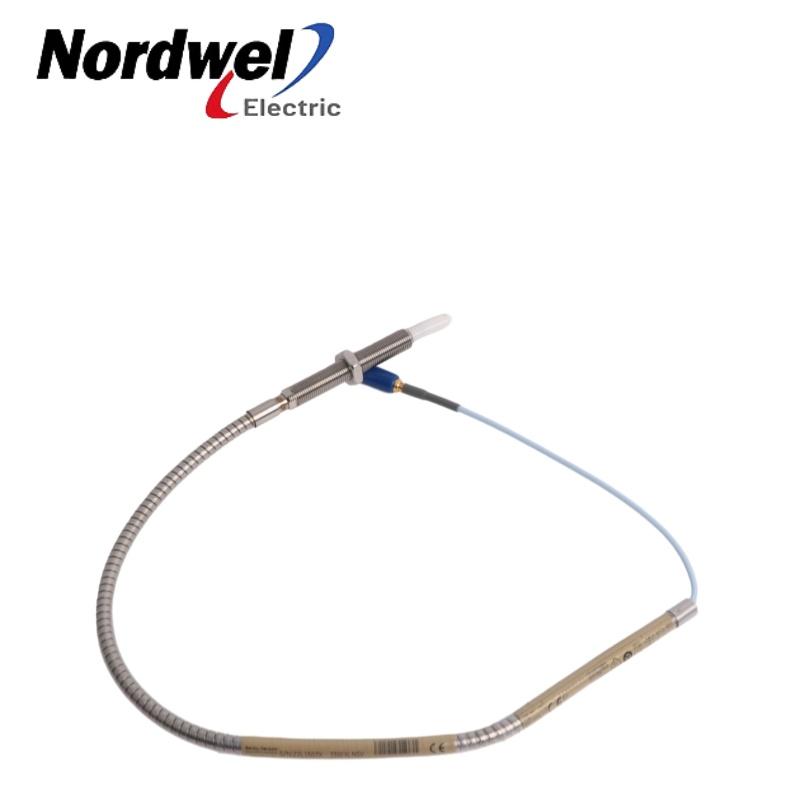

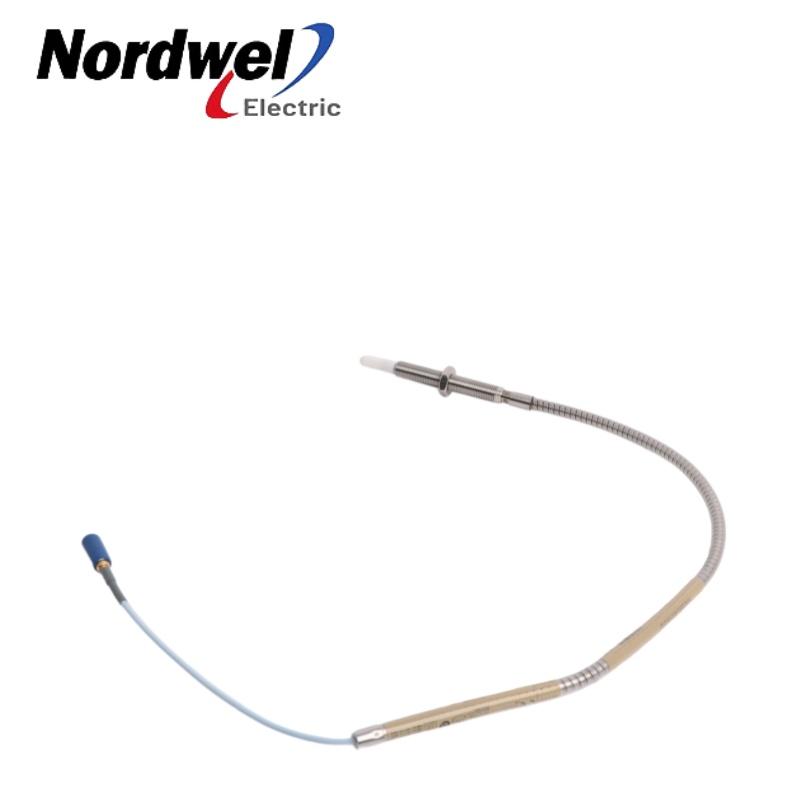

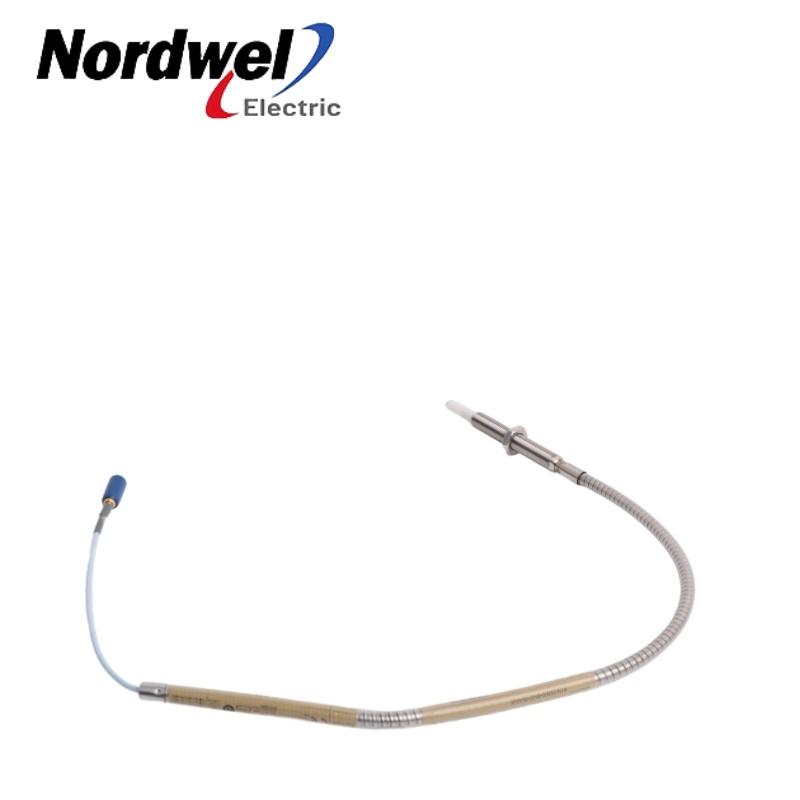

Bently Nevada identifies this complete code as a 3300 NSv probe with M10X1 thread and armor: 0 mm unthreaded length, 70 mm case length, 0.5 m total length, standard-cable ClickLoc connector and multiple approvals.
Brand:
Bently NevadaItem NO.:
330910-00-07-05-02-0Goods Stock:
1Part Number:
330910-00-07-05-02-05Dimensions:
0 mm unthreaded / 70 mm case / 0.5 m totalPlace of Origin:
USACertification:
Multiple ApprovalsDescription:
Bently Nevada 330910-00-07-05-02-05 is a 3300 NSv M10X1 proximity probe with armor, 0.5 m standard cable, ClickLoc connector and multiple approvals.This complete ordering code identifies a 3300 NSv Probe, M10X1 thread, with armor. The suffixes specify 0 mm unthreaded length, 70 mm overall case length, 0.5 m total length, a miniature coaxial ClickLoc connector with standard cable, and multiple approvals.
330910 denotes the metric M10X1 armored 3300 NSv probe. Each suffix must be retained for exact ordering.
3300 XL NSv Proximity Transducer System; non-contacting proximity probe for a matched NSv measurement chain.
| Base model | 330910 |
|---|---|
| Probe thread | M10X1 |
| Armor | With armor |
| Unthreaded length | 0 mm |
| Overall case length | 70 mm |
| Total length | 0.5 m (20 in) |
| Connector / cable | Miniature coaxial ClickLoc connector, standard cable |
| Agency approval option | Multiple Approvals |
| Place of Origin | USA |
| Warranty | With 1 year warranty |
Send the complete probe code, required quantity, matched extension cable, Proximitor Sensor and installation record.
Retain every suffix and verify the complete NSv measurement chain before quotation.
These exact Nordwel pages support configuration review and are not direct substitutes.
M10X1 armored probe configuration
M10X1 armored probe configuration
3/8-24 armored probe configuration
1/4-28 unarmored probe configuration
Published matched-cable reference
Published matched-cable reference
Nordwel supports exact-code checking, sensor-chain review, official-document confirmation and quotation coordination.
Confirm all six code groups and the 330910 M10X1 armored-probe identity.
Check case length, cable length, connector and approval suffixes.
Match the NSv probe, extension cable, Proximitor Sensor and monitor input.
Check mounting thread, target clearance, probe orientation and cable routing.
Review datasheet 147385 Rev. R and the installed-system maintenance record.
Stella coordinates quantity, destination, warranty and delivery requirements.
It is a 3300 NSv M10X1 proximity probe with armor, configured by the complete suffix code.
No. It must be matched with the correct NSv extension cable, Proximitor Sensor and monitor input.
No direct substitution should be assumed; compare every mechanical, cable, connector and approval option.
The 3300 XL NSv system supports non-contacting displacement measurement in machinery-monitoring installations, including process-compressor contexts and installations with restricted mounting space. Final suitability depends on the complete sensor chain and manufacturer documentation.
Non-contacting measurement where the installed target, gap and matched NSv chain are confirmed.
Position-monitoring context subject to target geometry and system calibration review.
Official family context for machinery with constrained installation requirements.
Application review where probe side-view characteristics, clearance and target size matter.
