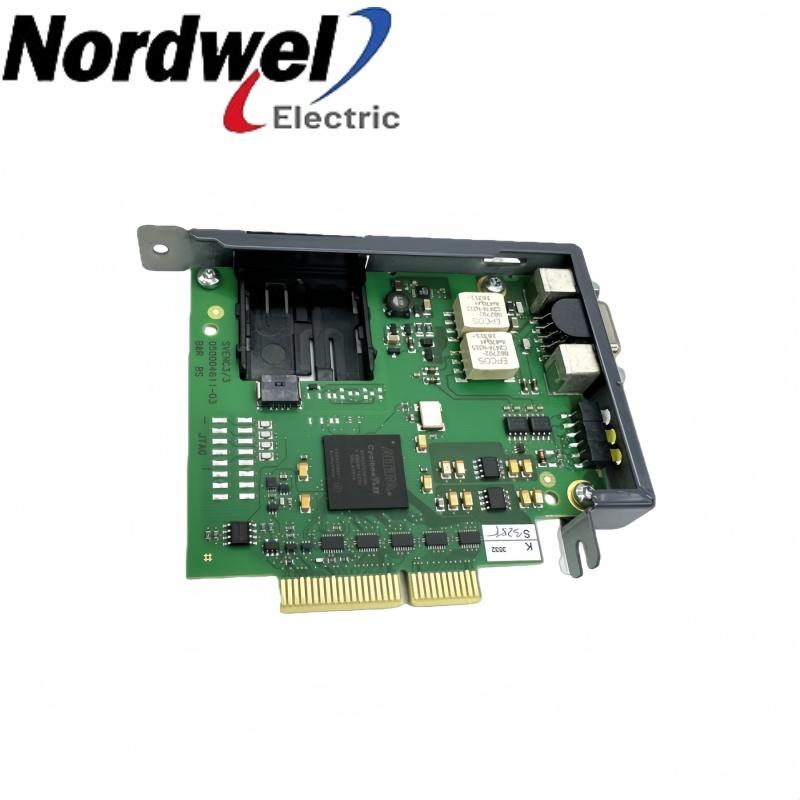

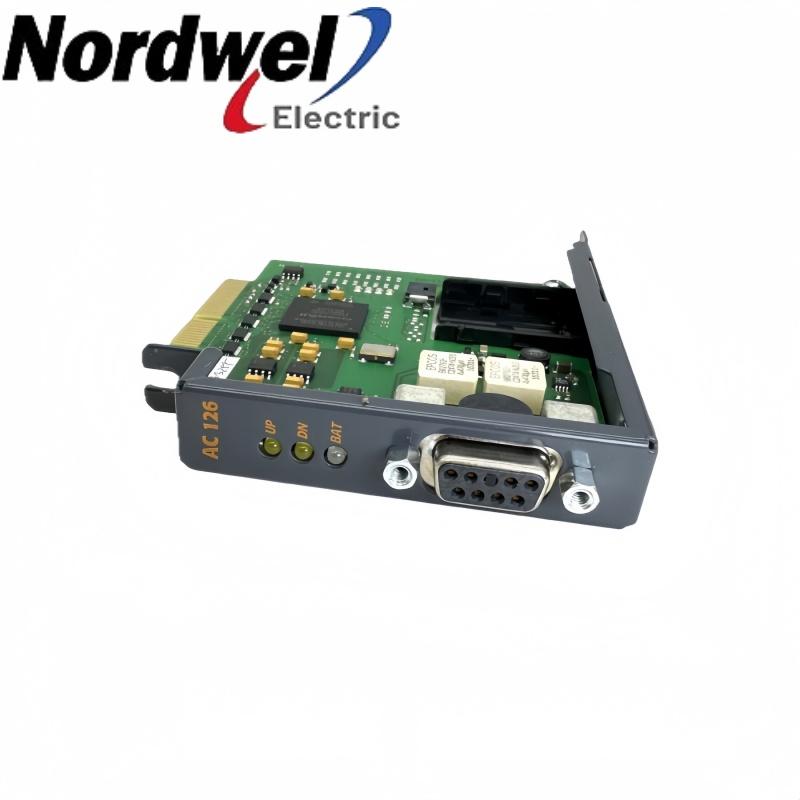

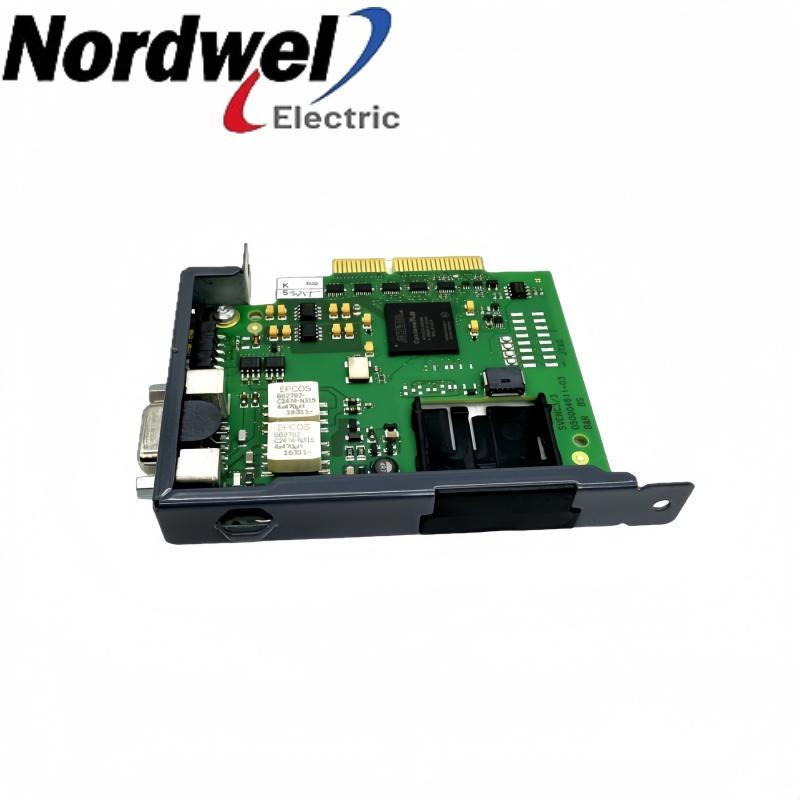

8AC126.60-1 ACOPOS EnDat 2.2 Encoder Interface Module
8AC126.60-1 ACOPOS EnDat 2.2 Encoder Interface Module
8AC126.60-1 ACOPOS EnDat 2.2 Encoder Interface Module

B&R 8AC126.60-1 ACOPOS EnDat 2.2 Encoder Interface Module

EMAIL SALES
B&R official data reviewed
8AC126.60-1 — ACOPOS EnDat 2.2 Encoder Interface Module

An ACOPOS plug-in module for monitored EnDat 2.2 feedback, including a 12 V encoder supply, parameter-chip support and optional battery buffering.

ACOPOS plug-in encoder modulesEnDat 2.2 encoder feedback for ACOPOS servo drivesExact-order review
Sales managerTiffany Guan
Mobile / WhatsApp+86 18030235313
Officially reviewed product profile
Product familyACOPOS plug-in encoder modules
Exact model8AC126.60-1
Verified functionEnDat 2.2 encoder feedback for ACOPOS servo drives
Interface boundary9-pin female DSUB with synchronous RS485 transmission at 6.25 Mbit/s
Baud rate6.25 Mbit/s
Selection basisConfirm EnDat 2.2 compatibility, slot, 9-pin connector, 12 V load and the 100 m cable boundary.
  • Brand:

    Others
  • Item NO.:

    8AC126.60-1
  • Goods Stock:

    1
  • Part Number:

    8AC126.60-1
  • Weight:

    B&R
  • Dimensions:

    ACOPOS EnDat 2.2 Encoder Interface Module
  • Manufacture Year:

    ACOPOS plug-in encoder modules
  • Place of Origin:

    9-pin female DSUB with synchronous RS485 transmission at 6.25 Mbit/s
  • Certification:

    Confirm EnDat 2.2 compatibility, slot, 9-pin connector, 12 V load and the 100 m cable boundary.
  • Description:

    An ACOPOS plug-in module for monitored EnDat 2.2 feedback, including a 12 V encoder supply, parameter-chip support and optional battery buffering.
8AC126.60-1 configuration inquiry

Get a precise quote for 8AC126.60-1

Email Sales
Sales managerTiffany Guan
WhatsApp+86 18030235313

8AC126.60-1 official identification

An ACOPOS plug-in module for monitored EnDat 2.2 feedback, including a 12 V encoder supply, parameter-chip support and optional battery buffering.

System responsibilityEnDat 2.2 encoder feedback for ACOPOS servo drives
Connection envelope9-pin female DSUB with synchronous RS485 transmission at 6.25 Mbit/s
Procurement decisionConfirm EnDat 2.2 compatibility, slot, 9-pin connector, 12 V load and the 100 m cable boundary.
Acceptance recordMaterial number, interface-version record, encoder-load check and absolute-position test

Engineering and installation checks

  • The controlling identity is 8AC126.60-1; shortened family references are not used for release.
  • Verify drive isolation and DC-bus discharge before handling the interface card.
  • Technical claims are limited to B&R official exact product record for 8AC126.60-1.
Official product data

8AC126.60-1 key specifications

Module type ACOPOS plug-in module
Feedback interface EnDat 2.2
Signal transmission Synchronous RS485
Baud rate 6.25 Mbit/s
Connector 9-pin female DSUB
Encoder supply Typically 12 V
Supply capacity 300 mA
Maximum encoder cable 100 m
Status indication UP / DN and BAT LEDs
Maximum consumption 4.4 W
Drive slots 2, 3 and 4
Backup option Battery buffering supported

Source: B&R official exact product record for 8AC126.60-1.
