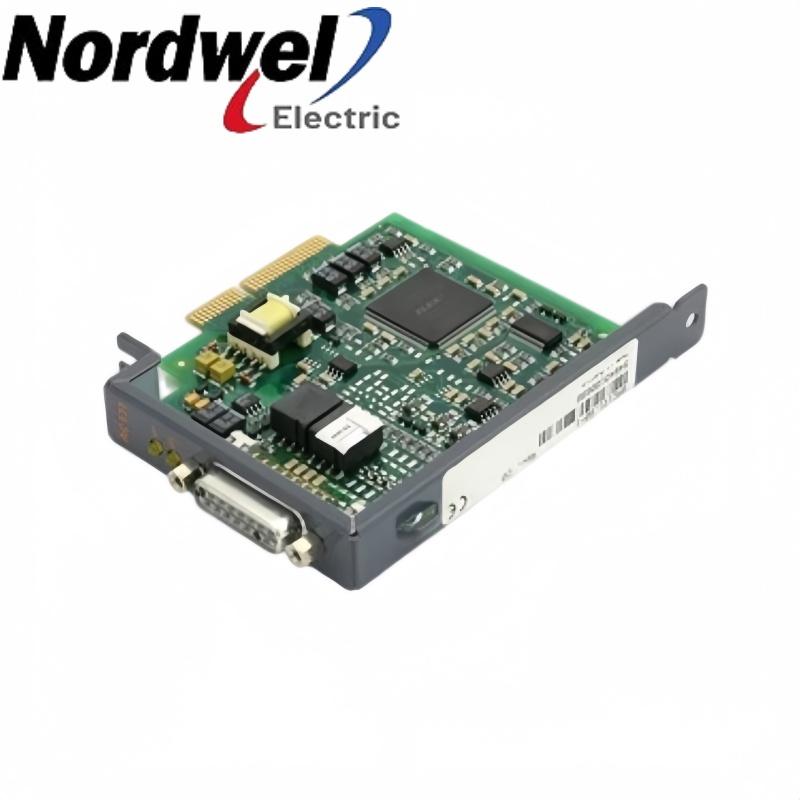

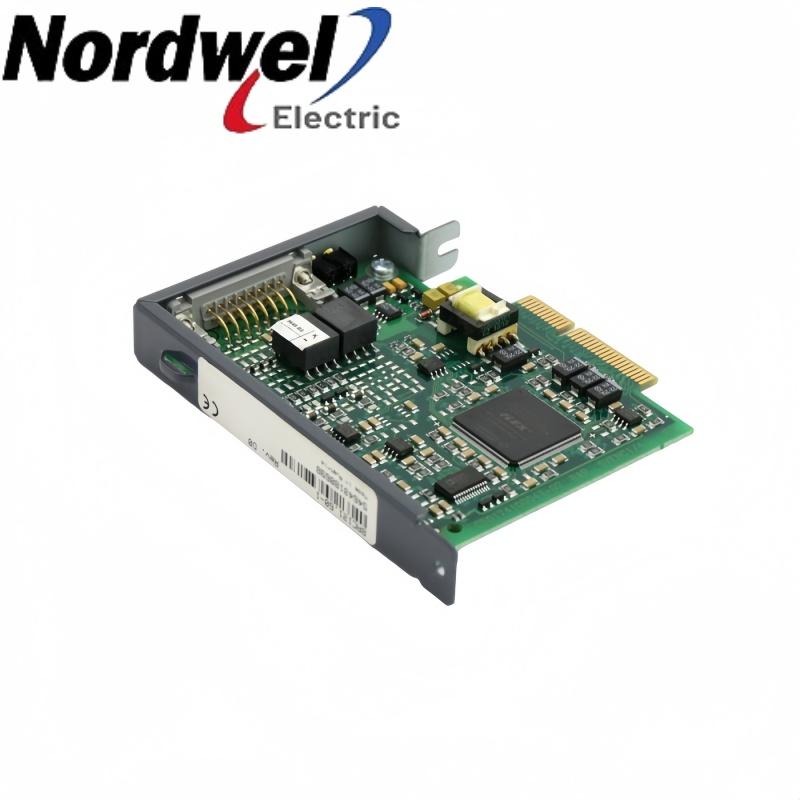

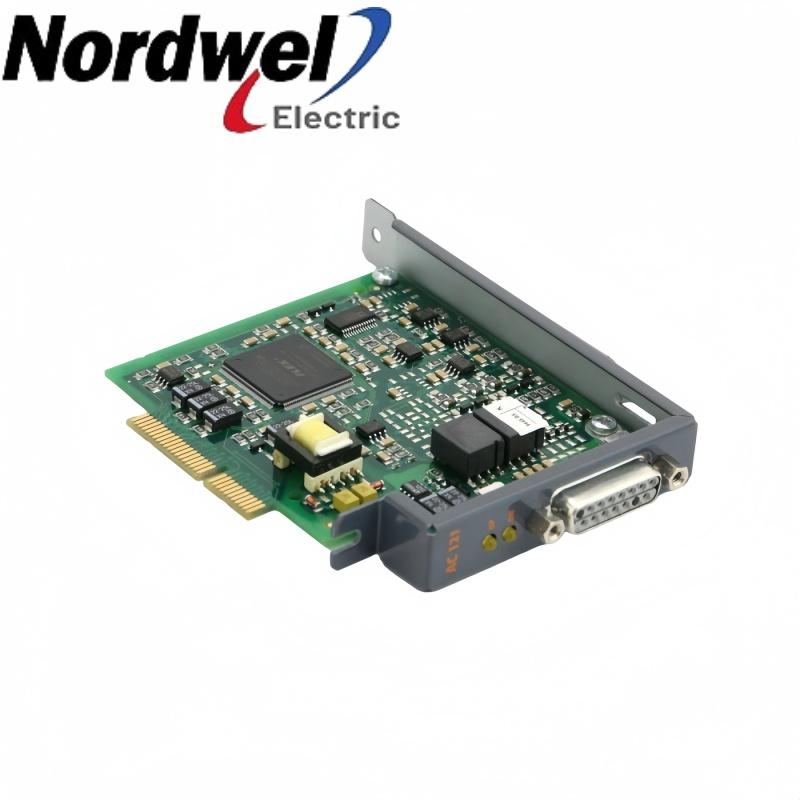

8AC121.60-1 — ACOPOS HIPERFACE Encoder Interface Module

An ACOPOS plug-in module for monitored HIPERFACE feedback, providing sine/cosine inputs, encoder supply and an asynchronous serial channel.

ACOPOS plug-in encoder modulesHIPERFACE encoder feedback for ACOPOS servo drivesExact-order review
Sales managerTiffany Guan
Mobile / WhatsApp+86 18030235313
Officially reviewed product profile
Product familyACOPOS plug-in encoder modules
Exact model8AC121.60-1
Verified functionHIPERFACE encoder feedback for ACOPOS servo drives
Interface boundary15-pin female DSUB with differential sine/cosine feedback and an asynchronous RS485 channel
Signal frequencyDC to 200 kHz
Selection basisConfirm HIPERFACE feedback, drive slot, 15-pin keying, encoder current and the 50 m cable limit.
  • Brand:

    Others
  • Item NO.:

    8AC121.60-1
  • Goods Stock:

    1
  • Part Number:

    8AC121.60-1
  • Weight:

    B&R
  • Dimensions:

    ACOPOS HIPERFACE Encoder Interface Module
  • Manufacture Year:

    ACOPOS plug-in encoder modules
  • Place of Origin:

    15-pin female DSUB with differential sine/cosine feedback and an asynchronous RS485 channel
  • Certification:

    Confirm HIPERFACE feedback, drive slot, 15-pin keying, encoder current and the 50 m cable limit.
  • Description:

    An ACOPOS plug-in module for monitored HIPERFACE feedback, providing sine/cosine inputs, encoder supply and an asynchronous serial channel.
8AC121.60-1 configuration inquiry

Get a precise quote for 8AC121.60-1

Email Sales
Sales managerTiffany Guan
WhatsApp+86 18030235313

8AC121.60-1 official identification

An ACOPOS plug-in module for monitored HIPERFACE feedback, providing sine/cosine inputs, encoder supply and an asynchronous serial channel.

System responsibilityHIPERFACE encoder feedback for ACOPOS servo drives
Connection envelope15-pin female DSUB with differential sine/cosine feedback and an asynchronous RS485 channel
Procurement decisionConfirm HIPERFACE feedback, drive slot, 15-pin keying, encoder current and the 50 m cable limit.
Acceptance recordMaterial number, slot record, encoder current check and direction-feedback test

Engineering and installation checks

  • The controlling identity is 8AC121.60-1; shortened family references are not used for release.
  • Verify drive isolation and DC-bus discharge before accessing the plug-in slot.
  • Technical claims are limited to B&R official exact product record for 8AC121.60-1.
Official product data

8AC121.60-1 key specifications

Module type ACOPOS plug-in module
Feedback interface HIPERFACE
Signal input Differential sine/cosine
Signal frequency DC to 200 kHz
Serial protocol RS485 asynchronous
Serial rate 9600 baud
Connector 15-pin female DSUB, 2 pins closed
Encoder supply 8 to 9 V
Supply capacity 170 mA
Maximum encoder cable 50 m
Status indication UP / DN LEDs
Protection function Encoder monitoring

Source: B&R official exact product record for 8AC121.60-1.
