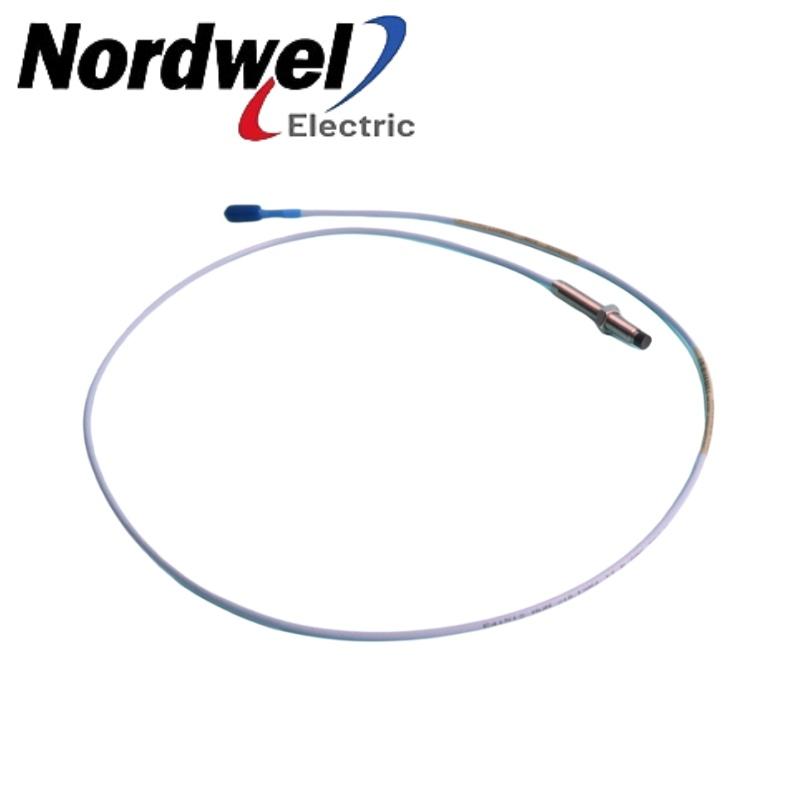

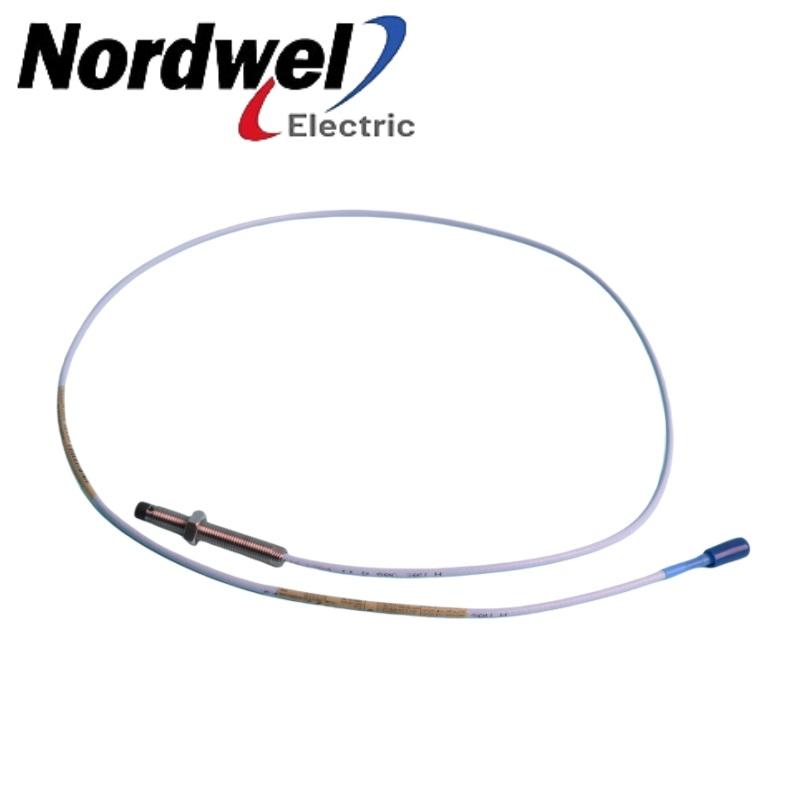

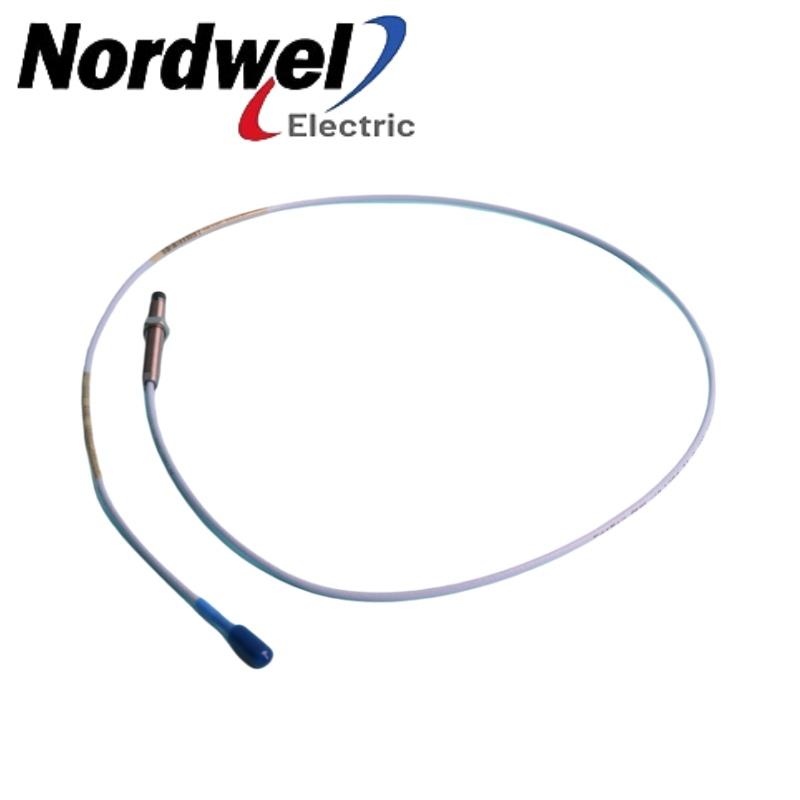

This exact 330101 probe configuration uses 3/8-24 UNF, without armor, 6.5 in unthreaded length, 9.6 in case length and 1.0 m total cable length.
Brand:
Bently NevadaItem NO.:
330101-65-96-10-02-0Goods Stock:
1Part Number:
330101-65-96-10-02-00Weight:
See exact manufacturer shipment dataDimensions:
9.6 in configured case; 1.0 m total leadCertification:
00 — no approvalsDescription:
This exact 330101 probe configuration uses 3/8-24 UNF, without armor, 6.5 in unthreaded length, 9.6 in case length and 1.0 m total cable length.Bently Nevada identifies 330101-65-96-10-02-00 as 3300 XL 8 mm proximity probe. This exact 330101 probe configuration uses 3/8-24 UNF, without armor, 6.5 in unthreaded length, 9.6 in case length and 1.0 m total cable length.
Published 8 mm and NSv proximity probe options with verified sales contact details.
Published 5 mm, 11 mm, 25 mm and 50 mm proximity sensing options.
Verified probe housings, mounting hardware and cable accessories.
Verified vibration, thrust, speed and machinery-monitoring products.
Verified Siemens analog-input, analog-output and temperature-measurement modules.
Verified S7-200 SMART CPUs, communication boards and compact digital I/O.
Published 8 mm and NSv proximity probe configurations.
Verified 5 mm, 11 mm, 25 mm, 50 mm and ceramic-capped probe options.
Verified probe housings, mounting studs and system cable accessories.
Published velocity, thrust, speed and vibration-sensing products.
Verified protection relays, controllers and machinery-monitoring products.
Additional verified automation, monitoring and I/O products published on Nordwel.
Use the exact manufacturer order number and verify the system constraints before procurement.
Quote 330101-65-96-10-02-00 exactly, including leading zeros, country suffixes and any MOD reference.
Confirm whether the order is for a probe, cable, sensor, transmitter, housing, accessory or control module.
Check thread, connector, mounting, cable length, power and field wiring against the installed drawings.
Do not mix unmatched transducer-system lengths, families, calibrations or host platforms.
Confirm the destination hazardous-area and country approval requirement from the current manufacturer record.
Provide a clear nameplate photograph and the equipment drawing with the commercial inquiry.
Selected specialist-brand products requested for regional projects and available on Nordwel.
Auxiliary relay option for protection and control applications.
Recent Middle East inquirySIMATIC S7-200 SMART RS485 communication board.
Recent Middle East inquiryRemote I/O gateway for demanding process-system environments.
Specialist brandReplacement inverter driver board for installed industrial systems.
Specialist brandAmplifier transducer for load-cell signal conditioning.
Specialist brandIndustrial power-supply model for legacy equipment support.
Specialist brandAnswers below use Bently Nevada official product documentation for this exact order number.
330101 identifies 3/8-24 UNF with without armor; the following segments specify 6.5 in unthreaded length, 9.6 in case length, 1.0 m total lead, ClickLoc standard cable and 00 — no approvals.
The unusually long 6.5 in unthreaded section and 9.6 in case must be checked against the probe sleeve depth.
No. The probe base specifies a cable without armor.
Option 02 is a miniature coaxial ClickLoc connector on standard cable, without the connector protector option.
No. The probe and any extension cable must add to the same total length as the matched 3300 XL 8 mm Proximitor sensor.
The complete standard system has a 2 mm linear range; probe-only performance must not be quoted as a complete calibrated system.
The manufacturer documents a recommended 1.27 mm gap for the standard 8 mm system.
Baker Hughes data sheet 141194 defines the 3300 XL 8 mm ordering code and system performance.
