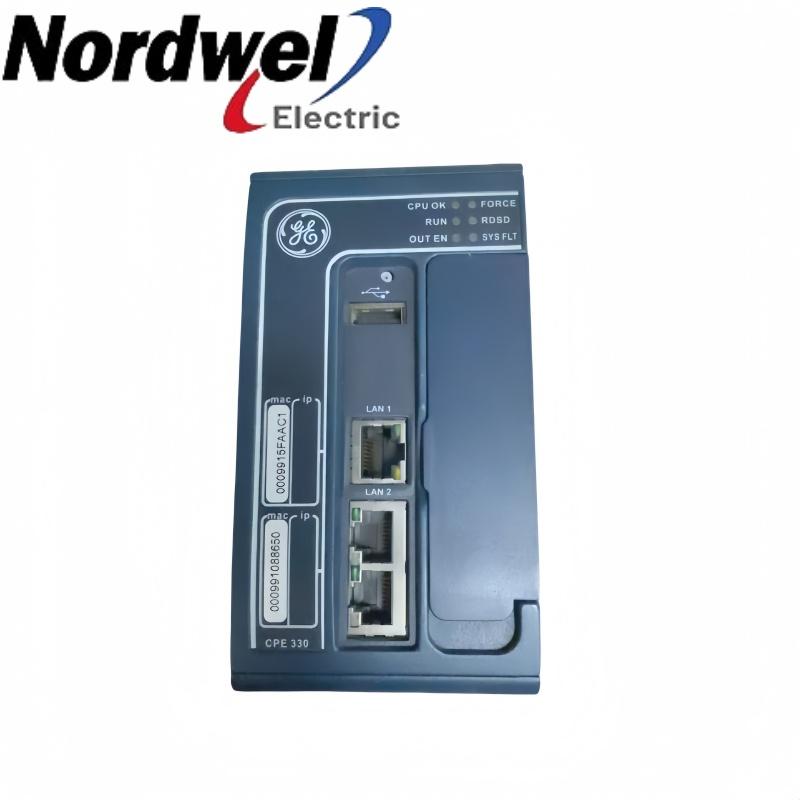

Provides high-capacity modular control with embedded industrial Ethernet communication. Dual-core 1 GHz controller, 64 MB user memory, three Gigabit Ethernet ports and CFast slot.
Brand:
General ElectricItem NO.:
IC695CPE330-ABANGoods Stock:
1Part Number:
IC695CPE330-ABANDescription:
Provides high-capacity modular control with embedded industrial Ethernet communicationProvides high-capacity modular control with embedded industrial Ethernet communication. Dual-core 1 GHz controller, 64 MB user memory, three Gigabit Ethernet ports and CFast slot.
| Processor | Dual-core 1 GHz |
|---|---|
| User memory | 64 MB |
| Discrete I/O capacity | 32k bits |
| Analog I/O capacity | 32k words |
| Ethernet | Three 10/100/1000 ports; two are switched |
| USB | One USB-A 2.0 port |
| Memory card | One CFast slot |
| Operating temperature | 0 to 60 °C |
| Exact revision | ABAN retained for receiving control |
Source: Official Emerson IC695CPE330 product record.
Verify the installed conditions before this exact model is removed or energized.
Match every item to the installed configuration.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Each target page displays Tiffany Guan and sales2@mooreplc.com.
Selected published products for regional sourcing and exact-code comparison.
Provides high-capacity modular control with embedded industrial Ethernet communication. Record the mounting arrangement, supply, grounding, connected cables, address settings and environmental conditions.
Not on appearance alone. A proposed alternative requires documented review of function, electrical limits, interfaces, mounting and project compatibility.
Preserve the approved project, parameters, network settings, firmware record and a recoverable copy before exchange.
Verify the complete model, quantity, label condition, connector integrity and supplied accessories against the purchase record.
Confirm normal power status, absence of faults, expected communication and a controlled functional test before service release.
Include identity checks, wiring or connector map, configuration restored, measured results, alarms tested and final authorization.
Provide the complete code, quantity, clear label image, installed-system context, destination and required timing.
Keep it dry, protected from static and impact, traceably labelled and within the manufacturer storage conditions.
Only after connector type, pin assignment, shielding, grounding, damage and route suitability are verified.
Use the official lifecycle context to plan spares, documentation retention and a controlled migration path without assuming interchangeability.
Software, licensing, controller, interface, shield and power-supply references.
Internal cable references for 40-channel input and output connections to field termination assemblies.
I/O Companion Slot to FTA · 2.5 m
I/O Companion Slot to FTA · 4.5 m
I/O Companion Slot to FTA · 6.5 m
I/O Companion Slot to FTA · 8.5 m
I/O Companion Slot to FTA · 10.5 m
I/O Companion Slot to FTA · 12.5 m
I/O Companion Slot to FTA · 4.5 m
I/O Companion Slot to FTA · 6.5 m
I/O Companion Slot to FTA · 8.5 m
Selected legacy and specialist models for motion, sensing, pneumatic and control-system applications.
