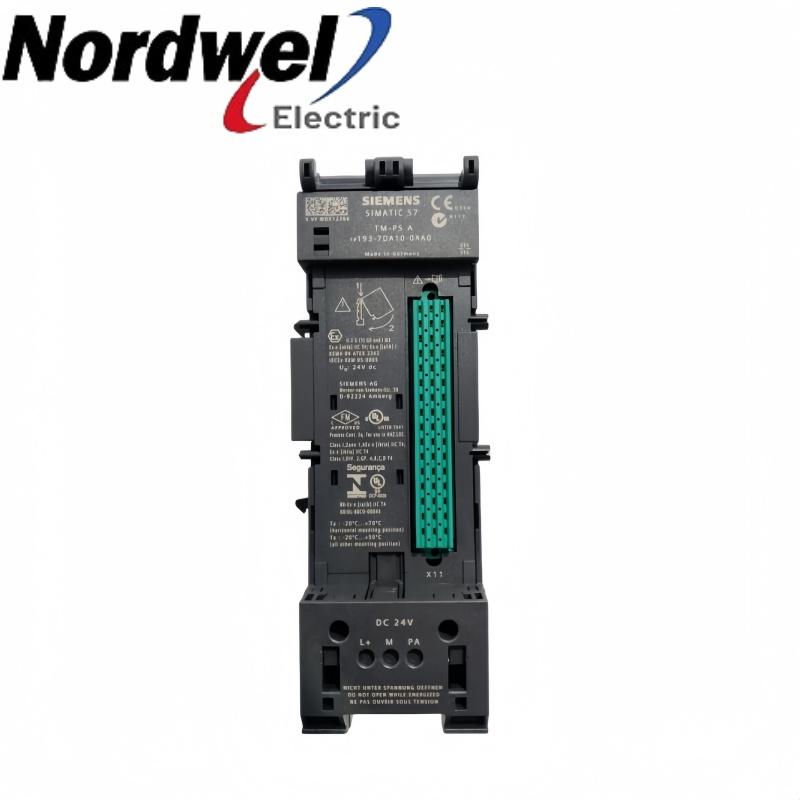

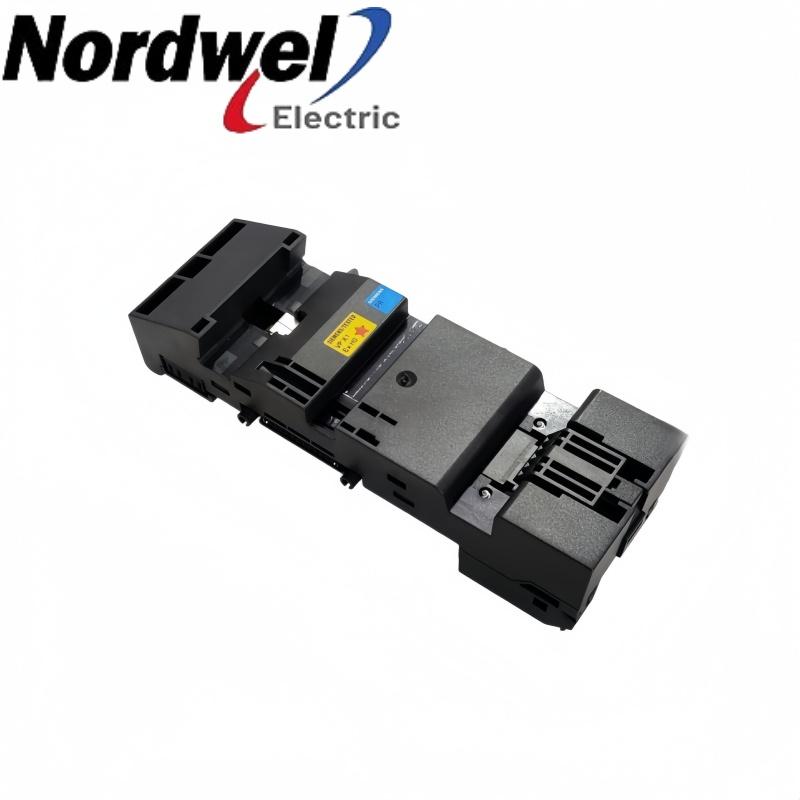

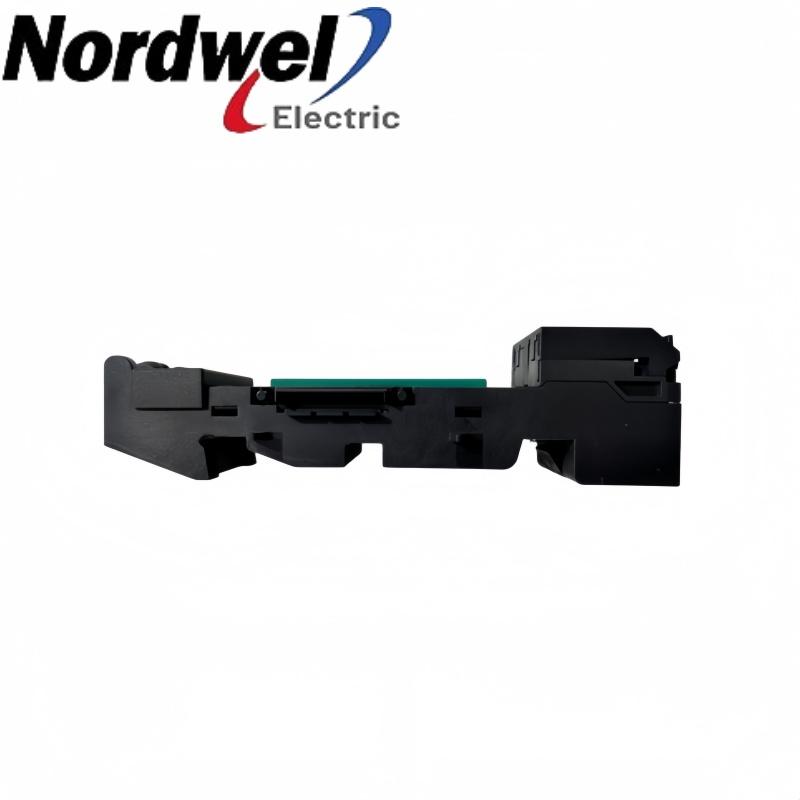

Siemens 6ES7193-7DA10-0AA0 TM-PS-A DC power-supply terminal module product photographs

Siemens 6ES7193-7DA10-0AA0 TM-PS-A DC power-supply terminal module

EMAIL SALES

Siemens ET 200iSP

6ES7193-7DA10-0AA0 — TM-PS-A DC power-supply terminal module

6ES7193-7DA10-0AA0 is a Siemens TM-PS-A DC power-supply terminal module for ET 200iSP installations. It provides the terminal position for a matched 24 VDC power supply.

SiemensET 200iSPDC power terminal

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7193-7DA10-0AA0 product profile

Product familyET 200iSP

Exact model6ES7193-7DA10-0AA0

Primary roleDC power-supply terminal position

Power connectionL+ and M

Bonding terminalPA

Version boundaryDC24V supply application

Brand:
SIEMENS
Item NO.:
6ES7193-7DA10-0AA0
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

6ES7193-7DA10-0AA0 configuration inquiry

Get a precise quote for 6ES7193-7DA10-0AA0

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7193-7DA10-0AA0 functions and installation

6ES7193-7DA10-0AA0 belongs in the connection architecture of the matched ET 200iSP installation. Provides the terminal position for a matched 24 VDC power supply. Keep the terminal hardware, fitted electronics and field-circuit responsibilities distinct when planning a replacement.

Operating purposeProvides the terminal position for a matched 24 VDC power supply.

Mating arrangementMatch the DC24V power-supply identity and mechanical coding.

Field-circuit planningRecord L+, M and PA separately and identify the plugged power-supply version.

Return to serviceCheck polarity, bonding and the installed supply status before returning the station to duty.

Installation and selection boundaries

Use the documented L+, M and PA assignment for this DC terminal version.
Keep maximum safety data separate from the nominal supply application.
Identify the terminal module and the separately supplied power supply explicitly.

Official product data

6ES7193-7DA10-0AA0 key specifications

Terminal designation	TM-PS-A
Supply application	Plugged PS DC24V power supply
Terminal identifiers	L+, M and PA
Terminal count	3
Conductor cross-section	0.5 to 4 mm², subject to the wiring rules
Insulation test	2500 VDC for this terminal version
Safety data	U = 30 VDC max; I = 5 A max

Siemens ET 200iSP operating instructions. PDF 250–253、269.

Pre-order check 01

Installation environment

Prepare 6ES7193-7DA10-0AA0 with the equipment safely isolated and its existing connection record available.

Isolate the incoming DC supply before changing the terminal position or its wiring.
Record L+, M and PA separately and identify the plugged power-supply version.
Inspect the coding features, conductor retention and terminal-module seating.
Check polarity, bonding and the installed supply status before returning the station to duty.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Plugged supply: Match the DC24V power-supply identity and mechanical coding.
Supply wiring: Use the documented L+, M and PA assignment for this DC terminal version.
Voltage qualification: Keep maximum safety data separate from the nominal supply application.
Conductor selection: Apply the published 0.5 to 4 mm² range together with the station wiring rules.
Order scope: Identify the terminal module and the separately supplied power supply explicitly.

Approve the mating arrangement and field-circuit checks before returning the installation to service.
