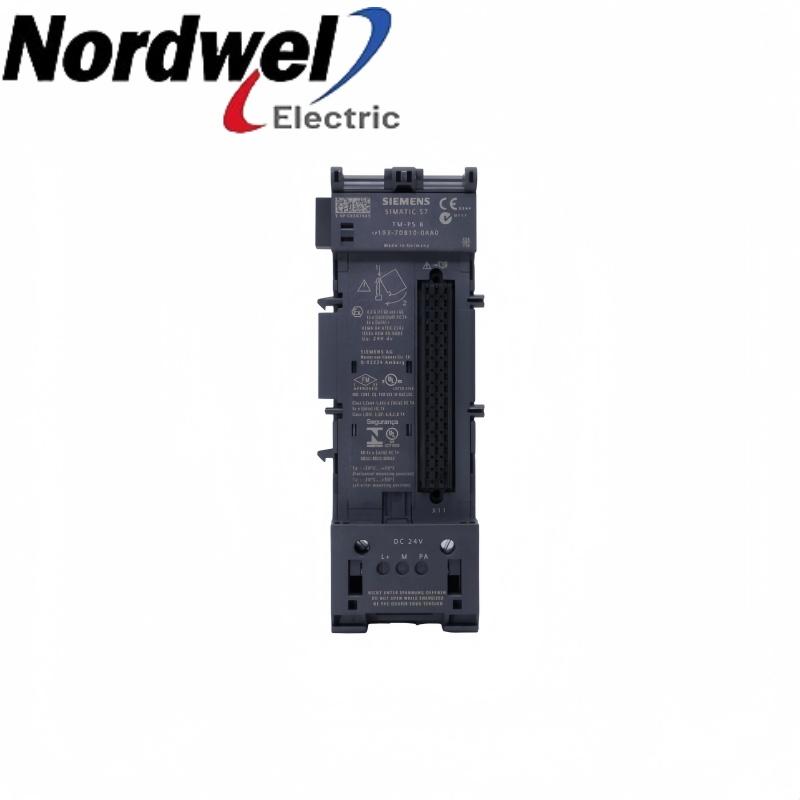

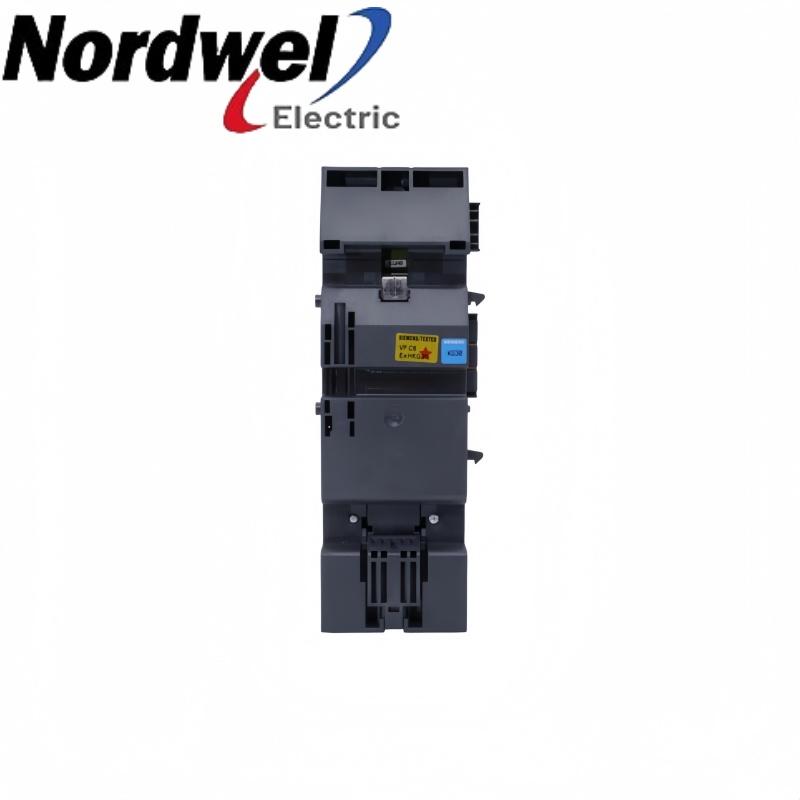

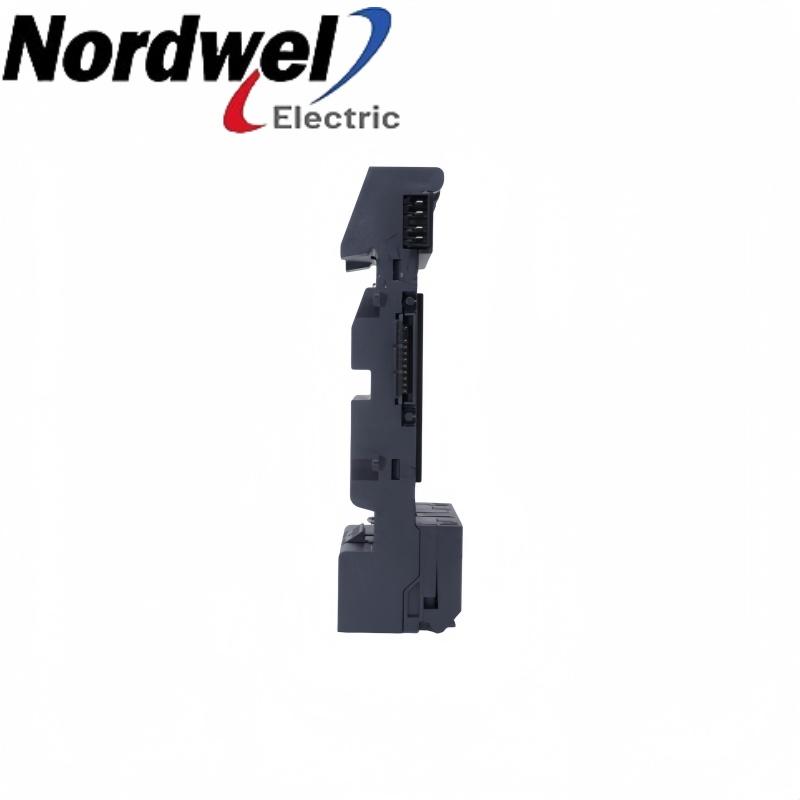

6ES7193-7DB10-0AA0 — TM-PS-B redundant DC-supply terminal module

6ES7193-7DB10-0AA0 is a Siemens TM-PS-B redundant DC-supply terminal module for ET 200iSP installations. It provides the additional terminal arrangement for redundant station power.

SiemensET 200iSPRedundant power terminal
Sales managerTiffany Guan
Mobile / WhatsApp+86 18030235313
6ES7193-7DB10-0AA0 product profile
Product familyET 200iSP
Exact model6ES7193-7DB10-0AA0
Primary roleRedundant power terminal position
Supply interfaceMatched DC24V power supply
Connection pointsL+, M and PA
Selection boundaryMatch the redundant station arrangement
  • Brand:

    SIEMENS
  • Item NO.:

    6ES7193-7DB10-0AA0
6ES7193-7DB10-0AA0 configuration inquiry

Get a precise quote for 6ES7193-7DB10-0AA0

Email Sales
Sales managerTiffany Guan
WhatsApp+86 18030235313

6ES7193-7DB10-0AA0 functions and installation

6ES7193-7DB10-0AA0 belongs in the connection architecture of the matched ET 200iSP installation. Provides the additional terminal arrangement for redundant station power. Keep the terminal hardware, fitted electronics and field-circuit responsibilities distinct when planning a replacement.

Operating purposeProvides the additional terminal arrangement for redundant station power.
Mating arrangementMatch the actual second power-supply position and the complete station plan.
Field-circuit planningRecord the second supply position, DC polarity and separate bonding conductor.
Return to serviceProve the restored supply status and approved redundant arrangement before handover.

Installation and selection boundaries

  • Use only the supply type permitted by this terminal version and its coding.
  • Retain the distinct L+, M and PA connection purposes.
  • Confirm whether the plugged power supplies are separate items in the quotation.
Official product data

6ES7193-7DB10-0AA0 key specifications

Terminal designation TM-PS-B
Power arrangement Redundant power-supply position
Supply type Matched PS DC24V
Connection points L+, M and PA
Conductor section 0.5 to 4 mm² under the station wiring rules
Test voltage 2500 VDC for this version
Maximum safety data 30 VDC and 5 A

Siemens ET 200iSP operating instructions. PDF 250–253、269.

Pre-order check 01

Installation environment

Prepare 6ES7193-7DB10-0AA0 with the equipment safely isolated and its existing connection record available.

  • Safely isolate the affected power circuits using the site procedure for a redundant station.
  • Record the second supply position, DC polarity and separate bonding conductor.
  • Inspect terminal retention, module seating and the allowed supply coding.
  • Prove the restored supply status and approved redundant arrangement before handover.
Retain the approved installation drawing and record the controlled acceptance checks.
Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Redundant configuration
Match the actual second power-supply position and the complete station plan.
DC supply identity
Use only the supply type permitted by this terminal version and its coding.
Terminal map
Retain the distinct L+, M and PA connection purposes.
Electrical limits
Do not substitute the safety-data maximum for a power-supply output specification.
Included equipment
Confirm whether the plugged power supplies are separate items in the quotation.
Approve the mating arrangement and field-circuit checks before returning the installation to service.
Recommended model families

More Siemens models

SiemensSiemens 6ES7144-1JB31-0XB0Siemens 6ES7144-1GB31-0XB0Siemens 6GK5308-2FM10-2AA3

Separate product references; inclusion does not establish compatibility or interchangeability.

SiemensSiemens 6ES7143-5AH00-0BA0Siemens 6ES7143-4BF50-0AA0Siemens 6ES7142-6BH00-0AB0

Separate product references; inclusion does not establish compatibility or interchangeability.

SiemensSiemens 6GK1143-0TA02Siemens 6ES7143-5BF00-0BA0Siemens 6ES7144-5KD00-0BA0

Separate product references; inclusion does not establish compatibility or interchangeability.

SiemensSiemens 6ES7144-4PF00-0AB0Siemens 6ES7144-4JF00-0AB0Siemens 6ES7144-4FF01-0AB0

Separate product references; inclusion does not establish compatibility or interchangeability.

Additional published brands

Additional Advantage Models

General Electric / Vibro-MeterGeneral Electric IC600CB513Vibro-Meter CA202 144-202-000-215Vibro-Meter TQ402 111-402-000-013 S3960 A1-B1-C042-D000-E010-F0-G000

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently Nevada / Vibro-Meter / General ElectricBently Nevada 330130-070-01-00Vibro-Meter VM600 RPS6U SIM-275D-24 200-582-200-013General Electric IC600BF923

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently Nevada / Vibro-MeterBently Nevada 330130-075-01-00Bently Nevada 330103-02-04-10-02-CNVibro-Meter TQ902-011 111-902-000-011 A1-B1-C42-D2-E10000-F2-G9800-H10

Separate product references; inclusion does not establish compatibility or interchangeability.

General Electric / Bently NevadaGeneral Electric IC600BF940General Electric IC600BF941Bently Nevada 330102-00-12-10-01-05

Separate product references; inclusion does not establish compatibility or interchangeability.

Bently Nevada / General ElectricBently Nevada 330905-00-25-05-02-CNGeneral Electric IC600BF948Bently Nevada 330854-080-25-05

Separate product references; inclusion does not establish compatibility or interchangeability.

Vibro-MeterVibro-Meter TQ902-011 111-902-000-011 A1-B1-C40-D2-E5000-F0-G0-H05Vibro-Meter CA134 144-134-000-612Vibro-Meter TQ402 111-402-000-012

Separate product references; inclusion does not establish compatibility or interchangeability.

Vibro-Meter / General ElectricVibro-Meter TQ403 111-403-000-013 A1-B1-C036-D000-E100-F1-G098-H10General Electric IC600CB504Vibro-Meter S3960 AC46286 144-201-000-222

Separate product references; inclusion does not establish compatibility or interchangeability.

General Electric / Bently NevadaGeneral Electric IC600BF830Bently Nevada 330104-00-08-15-02-00General Electric IC600BF942

Separate product references; inclusion does not establish compatibility or interchangeability.

Every model above links to an existing Nordwel product page. Send the full part number for configuration and availability confirmation. CHECK WITH SALES

6ES7193-7DB10-0AA0 Order Guide

Check the complete requested item against the actual installation before ordering.
1Identify the installed itemRecord 6ES7193-7DB10-0AA0 and the complete installed assembly identity before choosing the replacement.
2Confirm the mating arrangementMatch the actual second power-supply position and the complete station plan.
3Retain the circuit mapRecord the second supply position, DC polarity and separate bonding conductor.
4Check mechanical conditionInspect terminal retention, module seating and the allowed supply coding.
5Agree the supplied scopeConfirm whether the plugged power supplies are separate items in the quotation.
6Complete acceptanceProve the restored supply status and approved redundant arrangement before handover.

Middle East Demand & Specialist Models

Selected specialist-brand products requested for regional projects and available on Nordwel.

Compare the complete identity, installed hardware and application requirements before selection.
Vibro-MeterTQ402 111-402-000-012 A1-B1-D000-E010-F0-G000-H05

A separate product reference; verify its own installation and configuration.

Specialist model
Vibro-MeterAF70982 111-412-000-012

A separate product reference; verify its own installation and configuration.

Specialist model
Vibro-MeterCA202 144-202-000-205

A separate product reference; verify its own installation and configuration.

Specialist model
General ElectricIC600BF908

A separate product reference; verify its own installation and configuration.

Specialist model
General ElectricIC600BF914

A separate product reference; verify its own installation and configuration.

Specialist model
General ElectricIC600BF915

A separate product reference; verify its own installation and configuration.

Specialist model
Nordwel customer support

Company Services & FAQ

Support for 6ES7193-7DB10-0AA0 selection, quotation and controlled replacement planning.

Company services

Item and application reviewCompare the complete item with the installed configuration and required supplied scope.
Fast quotation supportConfirm pricing, availability and lead time against current Nordwel business records.
Worldwide shipping coordinationConfirm destination, freight option, packing requirements and shipment tracking workflow.
Order follow-upProvide pre-order clarification and shipment-status support through the assigned sales contact.

6ES7193-7DB10-0AA0 FAQ

Where is 6ES7193-7DB10-0AA0 used in a redundant power arrangement?TM-PS-B provides the additional terminal arrangement for the redundant power-supply position. Select it as part of the complete station power configuration.
What does the 2500 VDC figure describe for this terminal version?It is the specified insulation-test voltage. It does not permit operating the station at that voltage or replacing the documented DC24V supply application.
Which source type is shown for the 6ES7193-7DB10-0AA0 supply connection?The connection diagram shows a DC24V power-supply application. It is not permission to connect an AC source to this terminal version.
What does the PA marking mean beside L+ and M?PA identifies the equipotential-bonding connection. Preserve its separate function when recording and restoring the incoming power wiring.
How should the 5 A figure be described when selecting this terminal?It is the maximum current in the manual safety-data entry for this version. It must not be presented as a guaranteed power-supply output rating or an arbitrary field-channel capacity.
Can an apparently similar supply be inserted without a coding check?No. Check the supply identity and the permitted mechanical coding. A shared housing style does not establish that the supply is approved for this terminal position.
What wiring information is needed before removing 6ES7193-7DB10-0AA0?Retain the incoming polarity, bonding conductor, power-supply identity and redundant-station arrangement. This prevents the second supply position being restored against the wrong circuit record.
Which wire-size information applies to the terminal connection?The published conductor cross-section is 0.5 to 4 mm², subject to the station wiring rules. Apply the full preparation and termination requirements, not only the nominal range.
What should be proven after restoring the redundant supply position?Verify correct seating, polarity and bonding, then check the expected supply status and redundant operating arrangement under the site acceptance procedure.
Does ordering 6ES7193-7DB10-0AA0 automatically include both power supplies?No. Agree the terminal-module scope separately from the plugged power supplies and any other station components required for the redundant arrangement.
