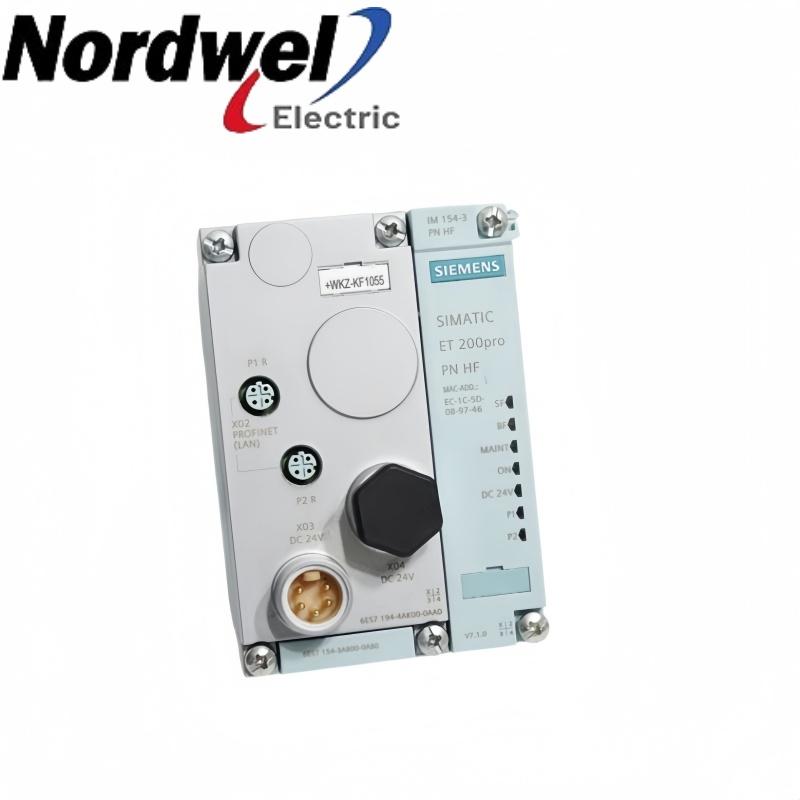

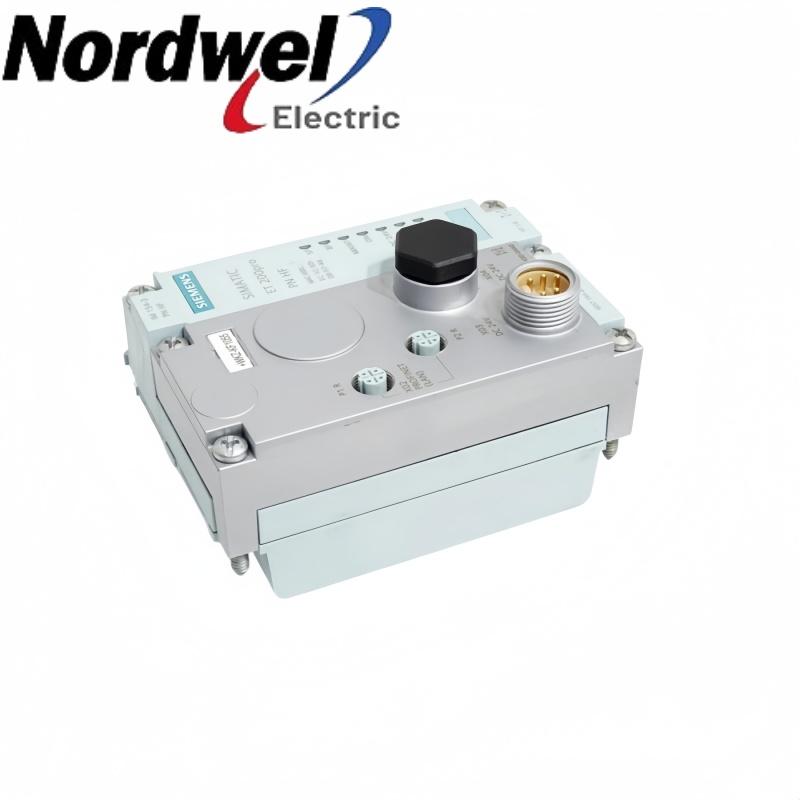

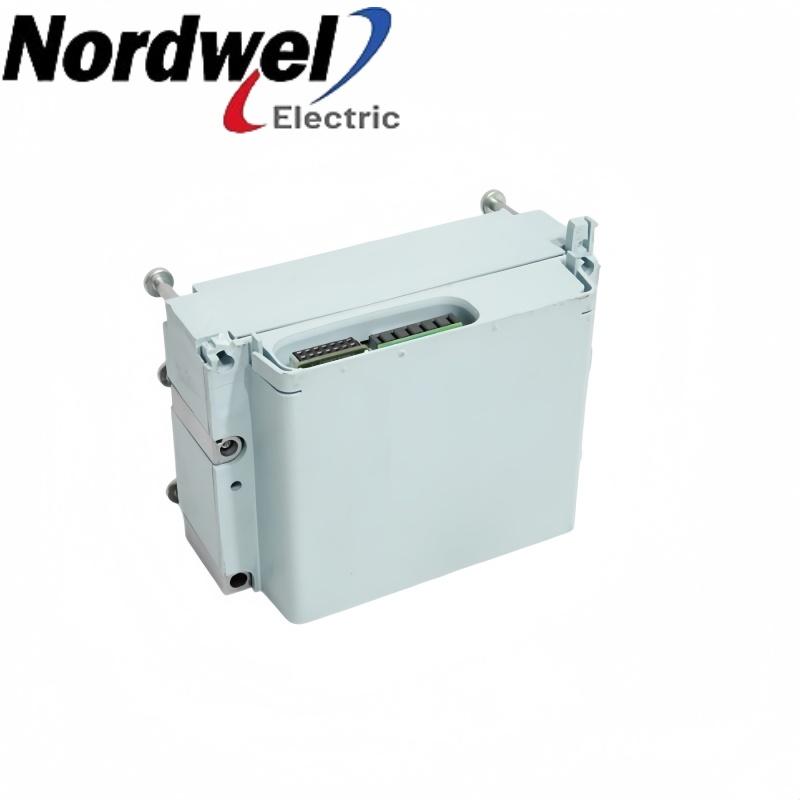

Siemens 6ES7194-4AK00-0AA0 CM IM PN M12 7/8-inch S connection module product photographs

Siemens 6ES7194-4AK00-0AA0 CM IM PN M12 7/8-inch S connection module

EMAIL SALES

Siemens ET 200pro

6ES7194-4AK00-0AA0 — CM IM PN M12 7/8-inch S connection module

6ES7194-4AK00-0AA0 is a Siemens CM IM PN M12 7/8-inch S connection module for ET 200pro installations. It connects PROFINET and 24 V power to the matched interface module.

SiemensET 200proPROFINET connection

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7194-4AK00-0AA0 product profile

Product familyET 200pro

Exact model6ES7194-4AK00-0AA0

Primary roleInterface-module field connection

Network connectors2 × M12

Power connectors2 × 7/8"

Assembly scopeSeparate connection and interface modules

Brand:
SIEMENS
Item NO.:
6ES7194-4AK00-0AA0
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

6ES7194-4AK00-0AA0 configuration inquiry

Get a precise quote for 6ES7194-4AK00-0AA0

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7194-4AK00-0AA0 functions and installation

6ES7194-4AK00-0AA0 belongs in the connection architecture of the matched ET 200pro installation. Connects PROFINET and 24 V power to the matched interface module. Keep the terminal hardware, fitted electronics and field-circuit responsibilities distinct when planning a replacement.

Operating purposeConnects PROFINET and 24 V power to the matched interface module.

Mating arrangementMatch the PROFINET interface and its prescribed S connection-module arrangement.

Field-circuit planningRecord the M12 network-cable positions and the 7/8-inch supply connections.

Return to serviceRestore the accepted wiring and prove the network path and station power before release.

Installation and selection boundaries

Use the two M12 network connections according to the installed cabling plan.
Retain the two 7/8-inch connections and the approved 24 V supply circuit.
Identify the interface module and mating cables separately from this connection module.

Official product data

6ES7194-4AK00-0AA0 key specifications

Connection-module type	CM IM PN M12, 7/8" S
Application	Matched PROFINET interface module
Network connection	2 × M12
Power connection	2 × 7/8"
Supply circuit	24 V
Supplied relationship	Connection module ordered separately from the interface module

Siemens ET 200pro system documentation. PDF 1225 / 目录10/371.

Pre-order check 01

Installation environment

Prepare 6ES7194-4AK00-0AA0 with the equipment safely isolated and its existing connection record available.

Isolate the affected supply and make the station safe before separating the assembly.
Record the M12 network-cable positions and the 7/8-inch supply connections.
Check the connector keys, seal condition and secure fit to the matched interface module.
Restore the accepted wiring and prove the network path and station power before release.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Interface selection: Match the PROFINET interface and its prescribed S connection-module arrangement.
Network hardware: Use the two M12 network connections according to the installed cabling plan.
Power hardware: Retain the two 7/8-inch connections and the approved 24 V supply circuit.
Active functions: Do not attribute processor, memory or switch specifications to the separate connection module.
Quotation scope: Identify the interface module and mating cables separately from this connection module.

Approve the mating arrangement and field-circuit checks before returning the installation to service.
