6ES7194-4DC00-0AA0 — CM IO twelve-M12 fail-safe connection module

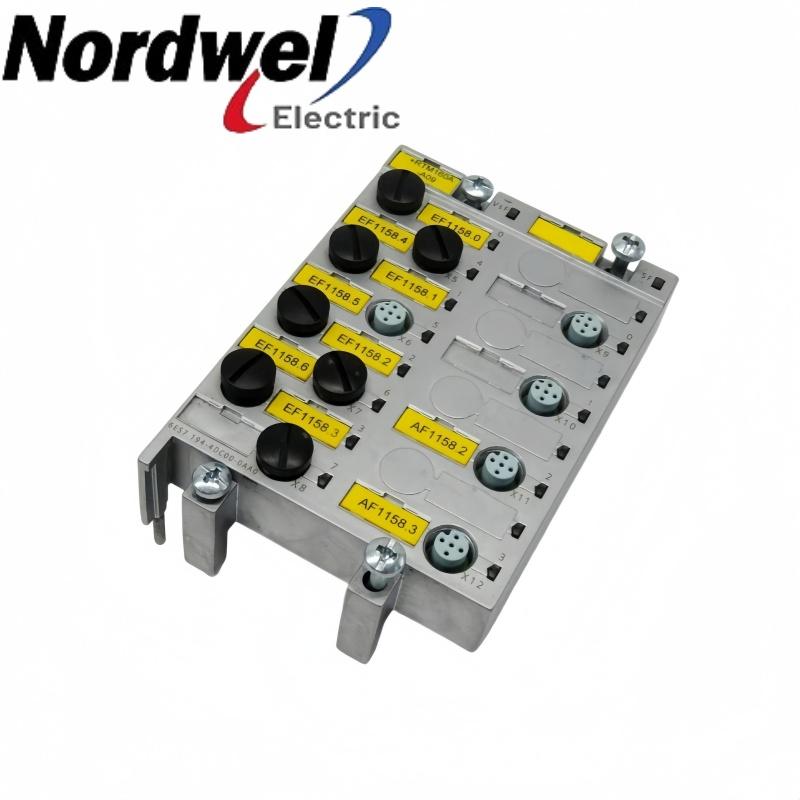

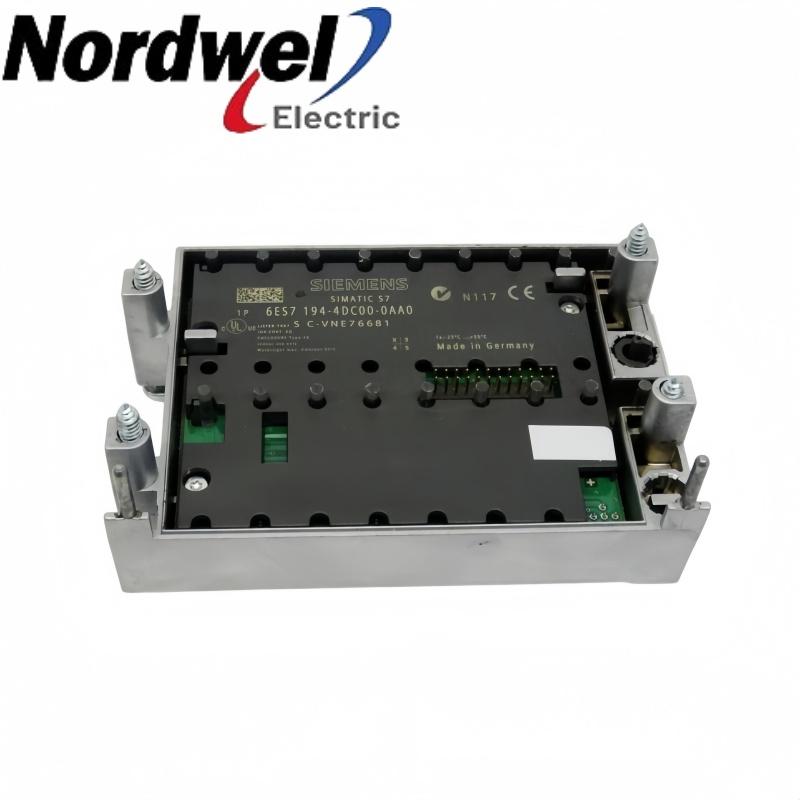

6ES7194-4DC00-0AA0 is a Siemens CM IO twelve-M12 fail-safe connection module for ET 200pro installations. It provides the connection arrangement for matched fail-safe input/output electronics.

SiemensET 200pro12-M12 safety connection

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7194-4DC00-0AA0 product profile

Product familyET 200pro

Exact model6ES7194-4DC00-0AA0

Primary roleFail-safe I/O field connection

Socket arrangement12 × M12

Dimensions W × H × D90 × 130 × 39 mm

Circuit allocationDefined by matched electronics

Brand:
SIEMENS
Item NO.:
6ES7194-4DC00-0AA0
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

6ES7194-4DC00-0AA0 configuration inquiry

Get a precise quote for 6ES7194-4DC00-0AA0

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7194-4DC00-0AA0 functions and installation

6ES7194-4DC00-0AA0 belongs in the connection architecture of the matched ET 200pro installation. Provides the connection arrangement for matched fail-safe input/output electronics. Keep the terminal hardware, fitted electronics and field-circuit responsibilities distinct when planning a replacement.

Operating purposeProvides the connection arrangement for matched fail-safe input/output electronics.

Mating arrangementMatch the fail-safe input/output electronics assigned to this connection arrangement.

Field-circuit planningRecord all twelve socket positions and the approved sensor/actuator circuit map.

Return to serviceComplete controlled safety-circuit acceptance before returning the process to service.

Installation and selection boundaries

Preserve the twelve-position field-cable assignment.
Retain the approved complete safety application and its commissioning requirements.
Do not describe a separate connection module as a complete supplied safety system.

Official product data

6ES7194-4DC00-0AA0 key specifications

Designation	CM IO 12 × M12
External sockets	12 M12 circular sockets
Associated application	Matched fail-safe digital input/output electronics
Width	90 mm
Height	130 mm
Depth	39 mm
Terminal allocation	Depends on the electronic module used

Siemens ET 200pro system documentation. PDF 53–54.

Pre-order check 01

Installation environment

Prepare 6ES7194-4DC00-0AA0 with the equipment safely isolated and its existing connection record available.

Make the affected safety function and process equipment safe before disconnecting field wiring.
Record all twelve socket positions and the approved sensor/actuator circuit map.
Inspect contact condition, module seating and screw retention to the matched electronics.
Complete controlled safety-circuit acceptance before returning the process to service.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Electronic partner: Match the fail-safe input/output electronics assigned to this connection arrangement.
Socket mapping: Preserve the twelve-position field-cable assignment.
Safety configuration: Retain the approved complete safety application and its commissioning requirements.
Electrical boundaries: Keep the electronic-module output limits with the corresponding channels and configuration.
Order contents: Do not describe a separate connection module as a complete supplied safety system.

Approve the mating arrangement and field-circuit checks before returning the installation to service.
