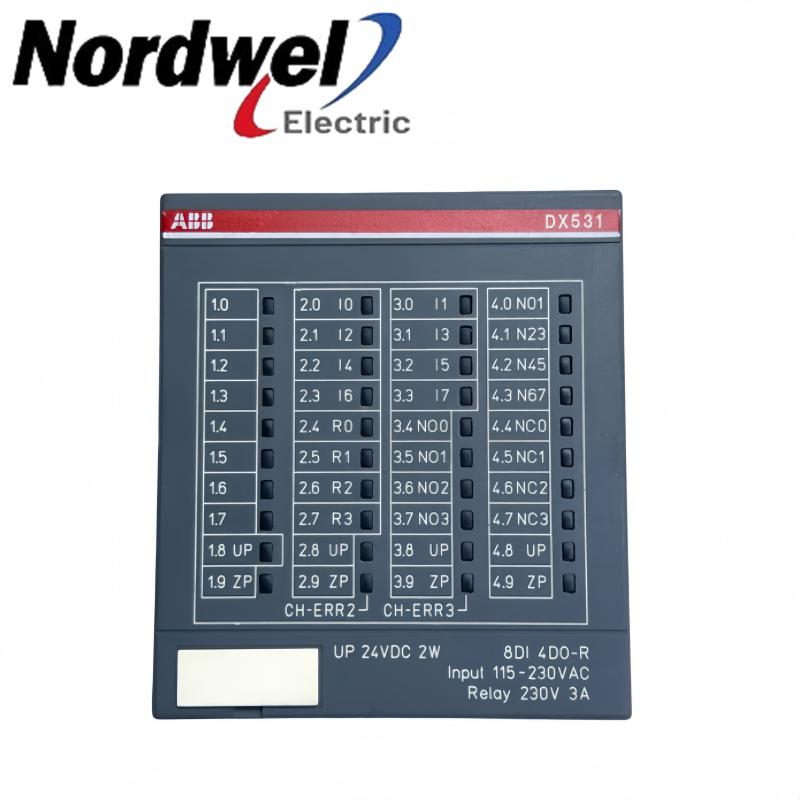

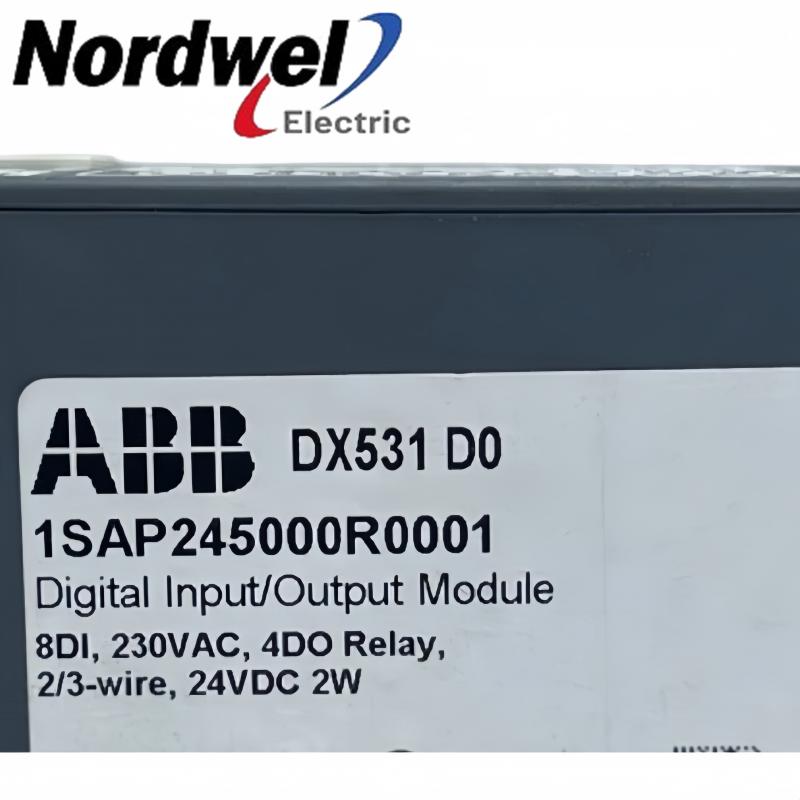

DX531 — S500 AC Input and Relay Output Module

ABB lists DX531 in the S500 mixed digital I/O portfolio. The reviewed record combines its exact identity with published electrical, channel, connection and installation data.

S500 mixed digital I/OAC status acquisition with change-over relay controlExact-order review

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

Officially reviewed product profile

Exact modelDX531

Digital inputs8 × 120/230 V AC

Relay outputs4 change-over contacts

Relay marking230 V AC, 3 A

Input groups4 groups of 2

Input standardEN 61131-2 Type 2

Typical input delay20 ms

IsolationModule-wise galvanic isolation

Brand:
ABB
Item NO.:
DX531
Goods Stock:
1
Part Number:
DX531
Description:
DX531 is an ABB s500 ac input and relay output module documented for ac status acquisition with change-over relay control. This page retains the complete order identity and manufacturer-published selection data.

Inquiry now

DX531 configuration inquiry

Get a precise quote for DX531

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

DX531 official identification

Selection review for DX531 starts with the manufacturer record, then checks the installed interface and application duty as separate approval points.

Operating scopeAC status acquisition with change-over relay control

Mating arrangementI/O bus through TU531 or TU532 terminal unit

Host platformS500 mixed digital I/O

Verification sourceABB AC500 V3 Hardware Manual

Engineering and installation checks

ABB identifies DX531 as s500 ac input and relay output module.
Digital inputs: 8 × 120/230 V AC.
Input groups: 4 groups of 2.
Manufacturer verification basis: ABB AC500 V3 Hardware Manual.

Official product data

DX531 key specifications

Digital inputs	8 × 120/230 V AC
Relay outputs	4 change-over contacts
Relay marking	230 V AC, 3 A
Input groups	4 groups of 2
Input standard	EN 61131-2 Type 2
Typical input delay	20 ms
Isolation	Module-wise galvanic isolation

Source: ABB AC500 V3 Hardware Manual.

Pre-order check 01

Installation environment

Verify the installed mounting, connection and environmental conditions before this exact configuration is removed or energized.

Seat DX531 on the documented i/o bus through tu531 or tu532 terminal unit arrangement and inspect every mating contact before power is applied.
Record the installed relay outputs as 4 change-over contacts and preserve the existing terminal or network labels.
Check enclosure protection, horizontal or vertical mounting, airflow, temperature and conductor strain against the ABB installation instructions.
After energization, verify status indicators, diagnostics and the controlled ac status acquisition with change-over relay control test before returning the loop or network to service.

Record the as-found installation and final controlled checks in the commissioning file.

Pre-order check 02

Compatibility confirmation

Match the complete designation to the installed mechanical arrangement, connection and measurement chain.

Exact hardware identity: DX531
Digital inputs: 8 × 120/230 V AC
Relay marking: 230 V AC, 3 A
Installed interface: I/O bus through TU531 or TU532 terminal unit
Engineering boundary: Match ABB configuration and device revision for ac status acquisition with change-over relay control

Final selection: Select DX531 only after the complete article identity, relay outputs, relay marking, host hardware and installed wiring have been matched to the approved project record.
