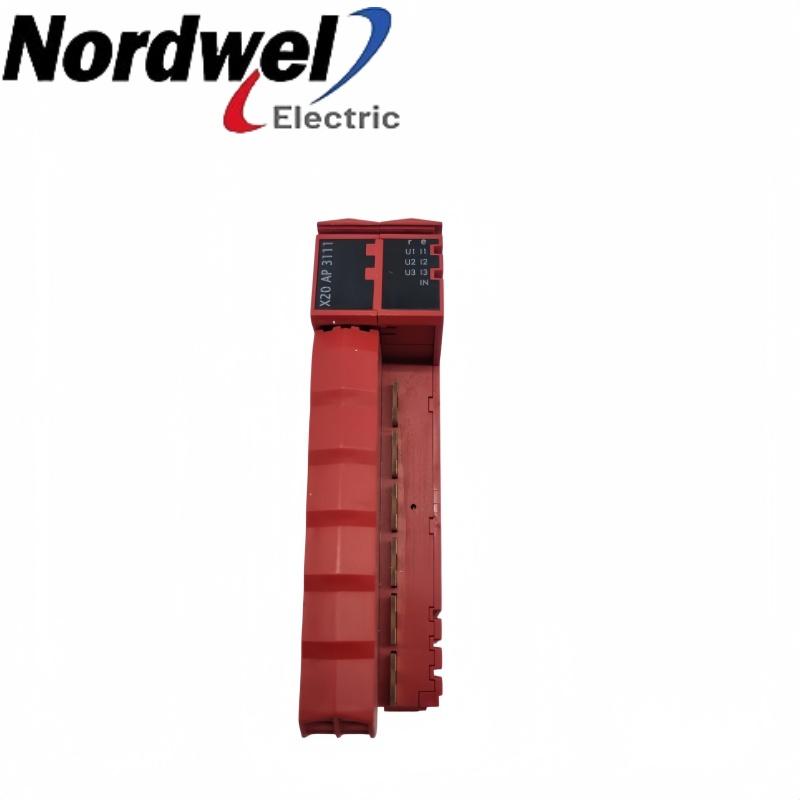

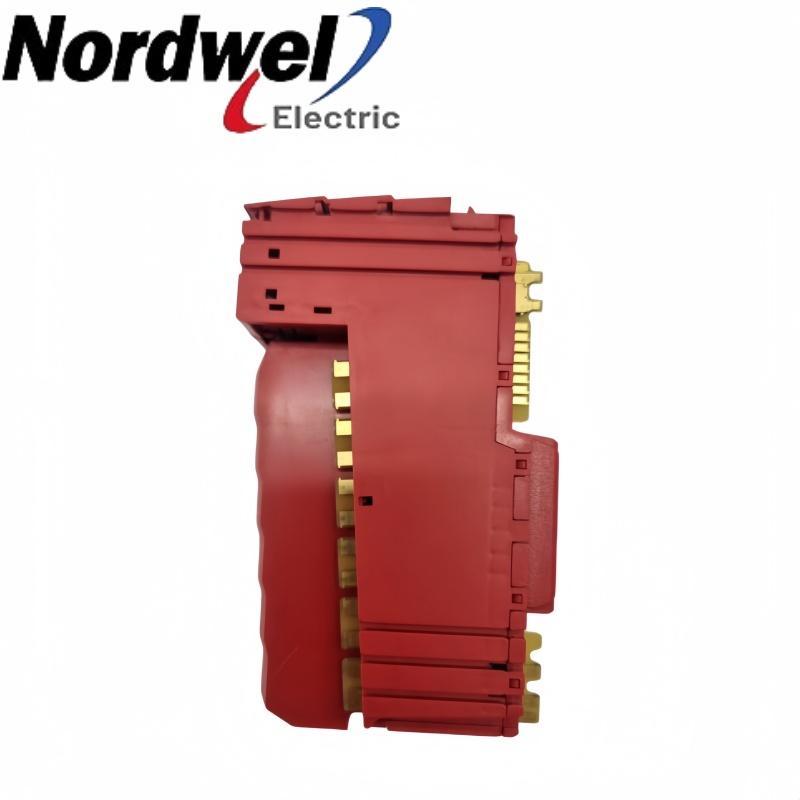

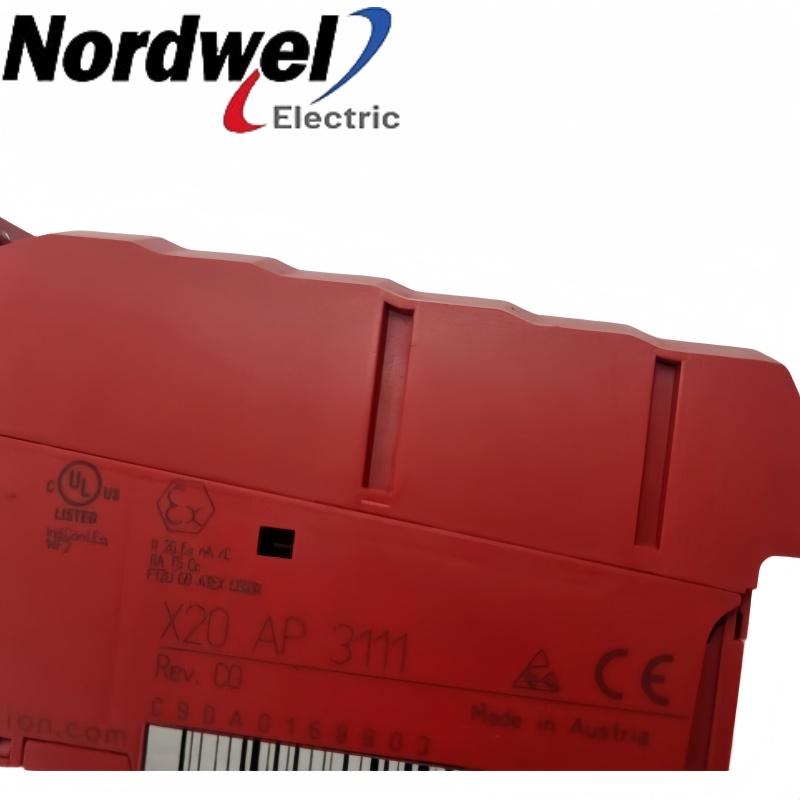

X20AP3111 Three-Phase Power and Energy Metering Module

B&R X20AP3111 Three-Phase Power and Energy Metering Module

EMAIL SALES

B&R official data reviewed

X20AP3111 — Three-Phase Power and Energy Metering Module

An X20 module for three-phase power and energy measurement using direct voltage channels and current-transformer inputs over 45–65 Hz networks.

X20 power measurement modulesThree-phase voltage, current and energy acquisitionExact-order review

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

Officially reviewed product profile

Product familyX20 power measurement modules

Exact modelX20AP3111

Verified functionThree-phase voltage, current and energy acquisition

Interface boundaryThree voltage inputs plus four 20 mA AC current-transformer inputs

Phase-to-neutral maximum277 VAC

Selection basisConfirm the 480 V phase-to-phase ceiling, transformer secondary current and measured network frequency.

Brand:
Others
Item NO.:
X20AP3111
Goods Stock:
1
Part Number:
X20AP3111
Description:
An X20 module for three-phase power and energy measurement using direct voltage channels and current-transformer inputs over 45–65 Hz networks.

Inquiry now

X20AP3111 configuration inquiry

Get a precise quote for X20AP3111

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

X20AP3111 official identification

An X20 module for three-phase power and energy measurement using direct voltage channels and current-transformer inputs over 45–65 Hz networks.

System roleThree-phase voltage, current and energy acquisition

Connection boundaryThree voltage inputs plus four 20 mA AC current-transformer inputs

Selection focusConfirm the 480 V phase-to-phase ceiling, transformer secondary current and measured network frequency.

Release evidenceModule code, transformer ratio schedule, voltage check and signed power-measurement comparison

Engineering and installation checks

undefined
Use correctly rated current transformers and document every ratio before wiring.
Manufacturer verification basis: B&R X20AP3111 official product record.

Official product data

X20AP3111 key specifications

Measurement duty	Three-phase power and energy
Voltage inputs	3
Current inputs	4
Phase-to-phase maximum	480 VAC
Phase-to-neutral maximum	277 VAC
Current input level	20 mA AC
Measured frequency	45–65 Hz
Rated frequency	50 / 60 Hz
Voltage-input impedance	1.68 MΩ
B&R ID	0xC9DA
Bus power after revision D0	0.45 W
Protection class	IP20 system module

Source: B&R X20AP3111 official product record.

Pre-order check 01

Installation environment

Review the physical, electrical and environmental conditions that control installation of X20AP3111.

Use correctly rated current transformers and document every ratio before wiring.
Keep phase sequence and neutral references consistent with the approved metering diagram.
De-energize and verify the 480 V class measurement circuit before module work.
Compare displayed values against a calibrated reference before accepting energy totals.

Record the as-found condition and the final module code, transformer ratio schedule, voltage check and signed power-measurement comparison

Pre-order check 02

Compatibility confirmation

Close each documented selection boundary for X20AP3111 before purchase approval.

Network form: Three-phase AC system
Voltage envelope: Not above 480 VAC phase to phase or 277 VAC phase to neutral
Transformer signal: 20 mA AC secondary input
Frequency window: 45–65 Hz
Host system: Compatible X20 station

Final selection: Use only the values published for X20AP3111 in B&R X20AP3111 official product record; site suitability remains an engineering decision.
