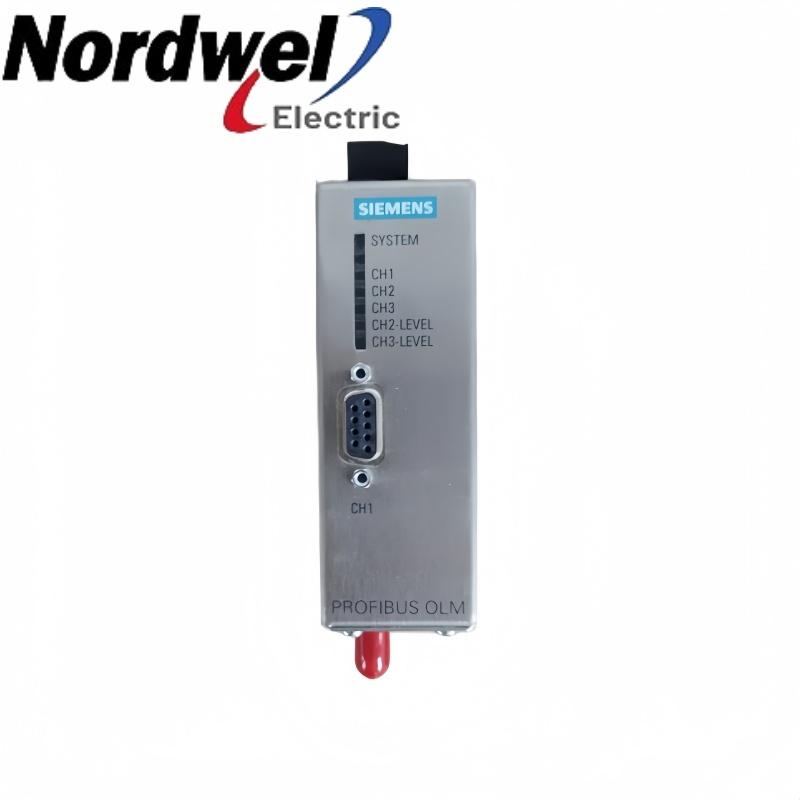

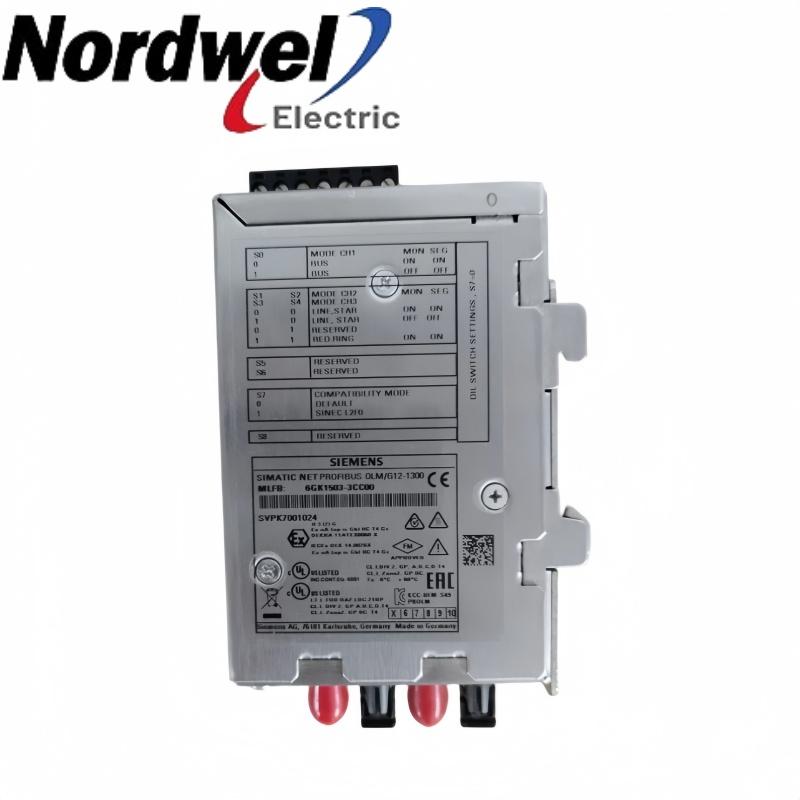

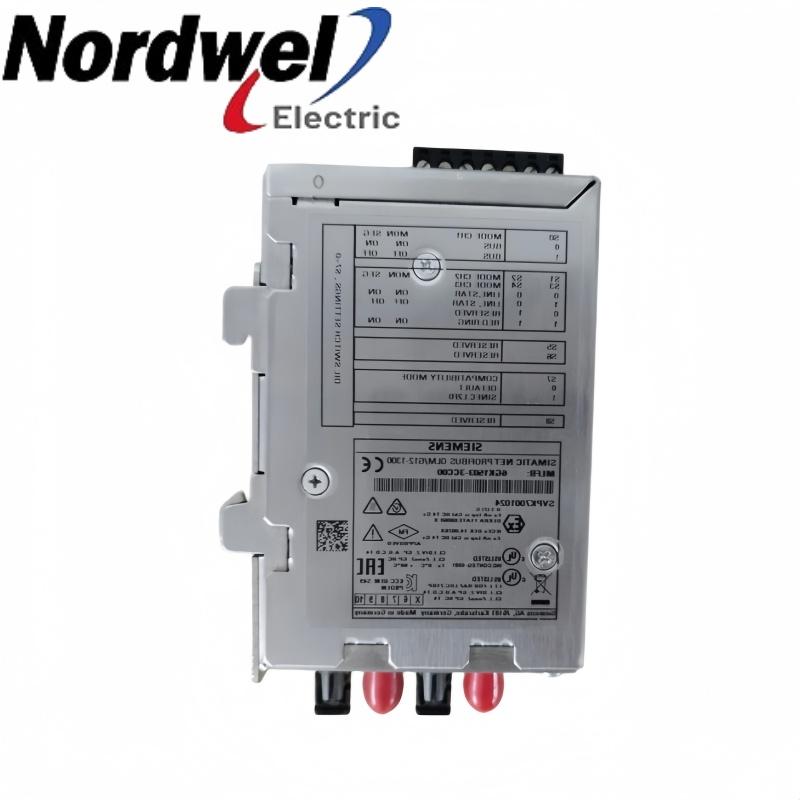

6GK1503-3CC00 PROFIBUS OLM/G12-1300 V4.0 Optical Link Module
6GK1503-3CC00 PROFIBUS OLM/G12-1300 V4.0 Optical Link Module
6GK1503-3CC00 PROFIBUS OLM/G12-1300 V4.0 Optical Link Module

Siemens 6GK1503-3CC00 PROFIBUS OLM/G12-1300 V4.0 Optical Link Module

EMAIL SALES
Siemens official data reviewed
6GK1503-3CC00 — PROFIBUS OLM/G12-1300 V4.0 Optical Link Module

An optical link module that joins one electrical RS485 segment to two 1300 nm glass-fiber channels for long-distance field communication.

PROFIBUS optical link modulesLong-distance optical conversion and repeating for field communicationExact-order review
Sales managerTiffany Guan
Mobile / WhatsApp+86 18030235313
Officially reviewed product profile
Product familyPROFIBUS optical link modules
Exact model6GK1503-3CC00
Verified functionLong-distance optical conversion and repeating for field communication
Interface boundaryOne RS485 channel plus two 1300 nm glass-fiber interfaces using four BFOC sockets
Optical connectors4 × BFOC
Selection basisConfirm 1300 nm optics, four BFOC connections, V4.0 device identity, signal contact and test-point requirements.
  • Brand:

    SIEMENS
  • Item NO.:

    6GK1503-3CC00
  • Goods Stock:

    1
  • Part Number:

    6GK1503-3CC00
  • Weight:

    Siemens
  • Dimensions:

    PROFIBUS OLM/G12-1300 V4.0 Optical Link Module
  • Manufacture Year:

    PROFIBUS optical link modules
  • Place of Origin:

    One RS485 channel plus two 1300 nm glass-fiber interfaces using four BFOC sockets
  • Certification:

    Confirm 1300 nm optics, four BFOC connections, V4.0 device identity, signal contact and test-point requirements.
  • Description:

    An optical link module that joins one electrical RS485 segment to two 1300 nm glass-fiber channels for long-distance field communication.
6GK1503-3CC00 configuration inquiry

Get a precise quote for 6GK1503-3CC00

Email Sales
Sales managerTiffany Guan
WhatsApp+86 18030235313

6GK1503-3CC00 official identification

An optical link module that joins one electrical RS485 segment to two 1300 nm glass-fiber channels for long-distance field communication.

System responsibilityLong-distance optical conversion and repeating for field communication
Connection envelopeOne RS485 channel plus two 1300 nm glass-fiber interfaces using four BFOC sockets
Procurement decisionConfirm 1300 nm optics, four BFOC connections, V4.0 device identity, signal contact and test-point requirements.
Acceptance recordExact article label, fiber-route record, optical-level check and RS485 communication test

Engineering and installation checks

  • The controlling identity is 6GK1503-3CC00; shortened family references are not used for release.
  • Document optical transmit and receive fibers at both channels before disconnection.
  • Technical claims are limited to Siemens Industry Mall exact record for 6GK1503-3CC00.
Official product data

6GK1503-3CC00 key specifications

Module designation OLM/G12-1300 V4.0
Electrical interface 1 × RS485
Optical interfaces 2 glass-fiber channels
Optical connectors 4 × BFOC
Optical wavelength 1300 nm
Application Long-distance optical links
Signalling Fault contact
Diagnostics Test port
Lifecycle Active product
Dimensions 39.5 × 74.5 × 112 mm
Net weight 0.427 kg
Country of origin Germany

Source: Siemens Industry Mall exact record for 6GK1503-3CC00.
