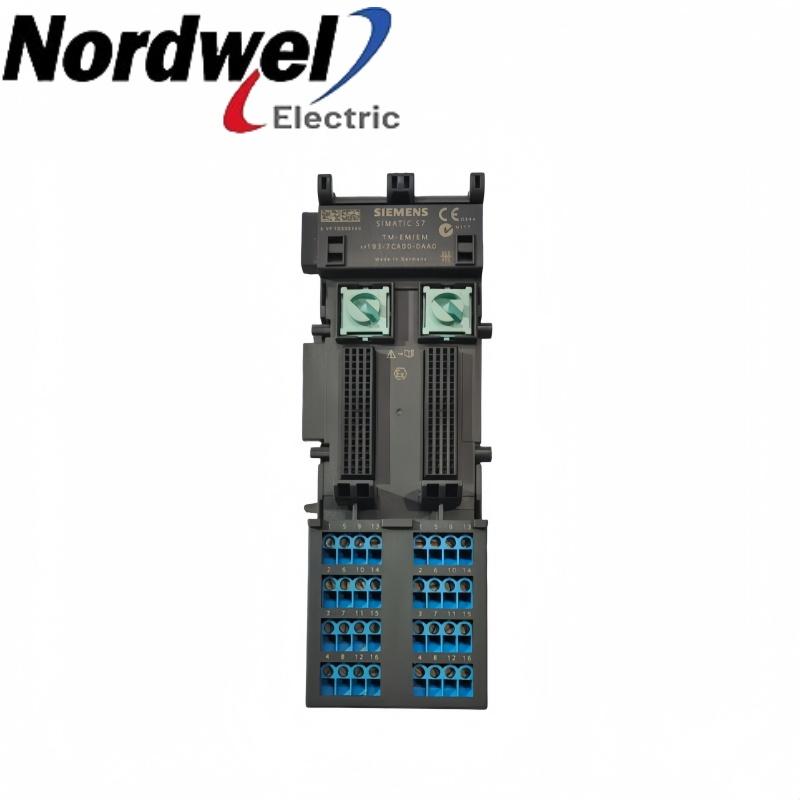

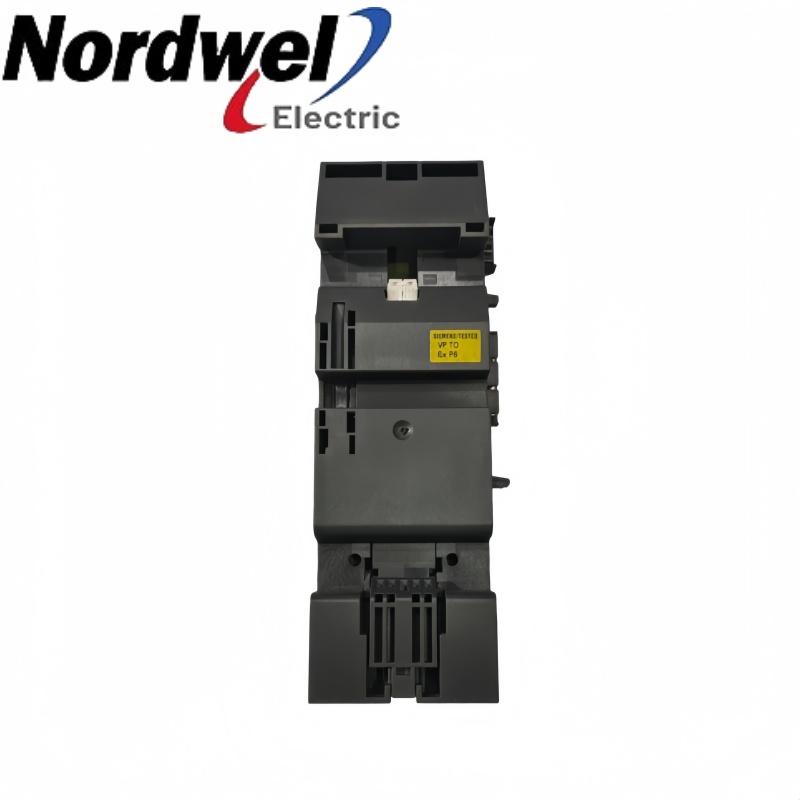

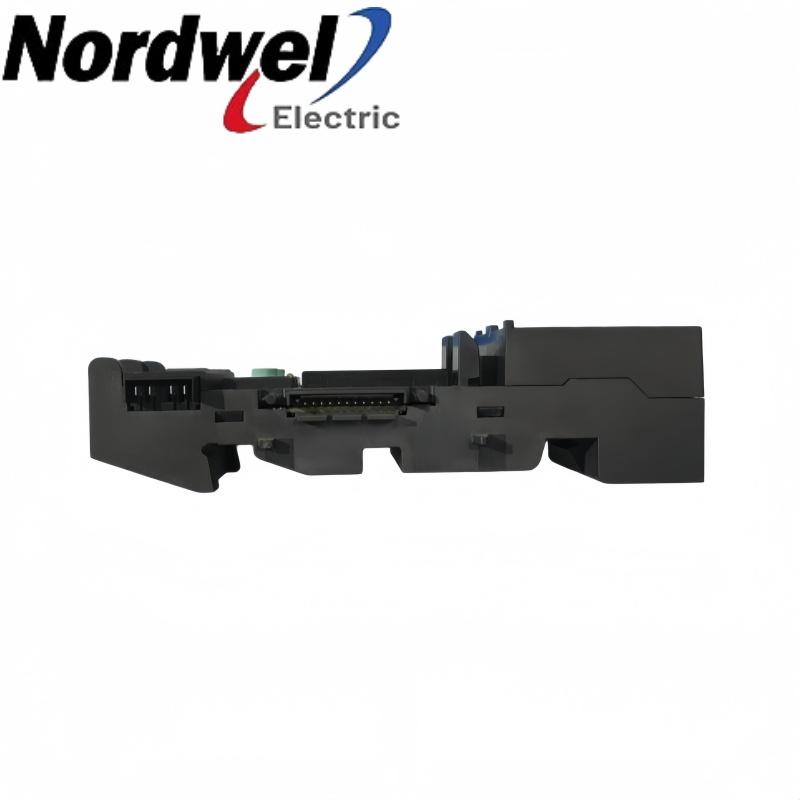

Siemens 6ES7193-7CA00-0AA0 TM-EM/EM 60S screw-terminal module product photographs

Siemens 6ES7193-7CA00-0AA0 TM-EM/EM 60S screw-terminal module

EMAIL SALES

Siemens ET 200iSP

6ES7193-7CA00-0AA0 — TM-EM/EM 60S screw-terminal module

6ES7193-7CA00-0AA0 is a Siemens TM-EM/EM 60S screw-terminal module for ET 200iSP installations. It provides field termination for two electronic modules.

SiemensET 200iSPScrew-terminal base

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7193-7CA00-0AA0 product profile

Product familyET 200iSP

Exact model6ES7193-7CA00-0AA0

Primary roleBase for two electronic modules

Field connectionScrew terminals

Dimensions W × H × D60 × 190 × 52 mm

Installation featurePrewire before fitting electronics

Brand:
SIEMENS
Item NO.:
6ES7193-7CA00-0AA0

Inquiry now

6ES7193-7CA00-0AA0 configuration inquiry

Get a precise quote for 6ES7193-7CA00-0AA0

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7193-7CA00-0AA0 functions and installation

6ES7193-7CA00-0AA0 belongs in the connection architecture of the matched ET 200iSP installation. Provides field termination for two electronic modules. Keep the terminal hardware, fitted electronics and field-circuit responsibilities distinct when planning a replacement.

Operating purposeProvides field termination for two electronic modules.

Mating arrangementFit only the electronics approved for this two-position terminal arrangement.

Field-circuit planningRecord both electronic-module positions and every conductor label before removal.

Return to serviceProve the restored field assignment and signal operation before releasing process interlocks.

Installation and selection boundaries

Use the screw-terminal wiring arrangement, not an assumed spring-terminal variant.
Preserve the permitted blue/black terminal separation in the station.
Agree whether electronics and marking accessories are supplied separately from the terminal module.

Official product data

6ES7193-7CA00-0AA0 key specifications

Module designation	TM-EM/EM 60S
Electronic-module positions	2
Terminal technology	Screw terminals
Width	60 mm
Height	190 mm
Depth	52 mm
Prewiring	Permitted before the electronics are fitted

Siemens ET 200iSP operating instructions. PDF 261–263.

Pre-order check 01

Installation environment

Prepare 6ES7193-7CA00-0AA0 with the equipment safely isolated and its existing connection record available.

Isolate the affected station and make connected process equipment safe before changing wiring.
Record both electronic-module positions and every conductor label before removal.
Inspect the screw-terminal hardware, mating contacts and mounting-rail spring contact.
Prove the restored field assignment and signal operation before releasing process interlocks.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Electronic positions: Fit only the electronics approved for this two-position terminal arrangement.
Terminal system: Use the screw-terminal wiring arrangement, not an assumed spring-terminal variant.
Station arrangement: Preserve the permitted blue/black terminal separation in the station.
Mechanical envelope: Check the 60 × 190 × 52 mm terminal body against the available mounting and wiring space.
Supplied scope: Agree whether electronics and marking accessories are supplied separately from the terminal module.

Approve the mating arrangement and field-circuit checks before returning the installation to service.
