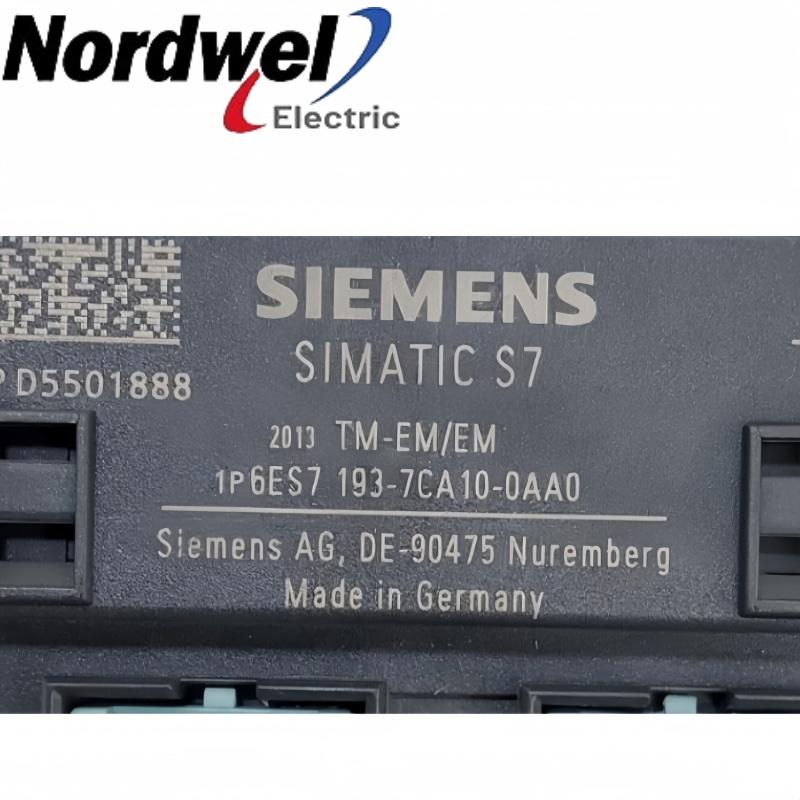

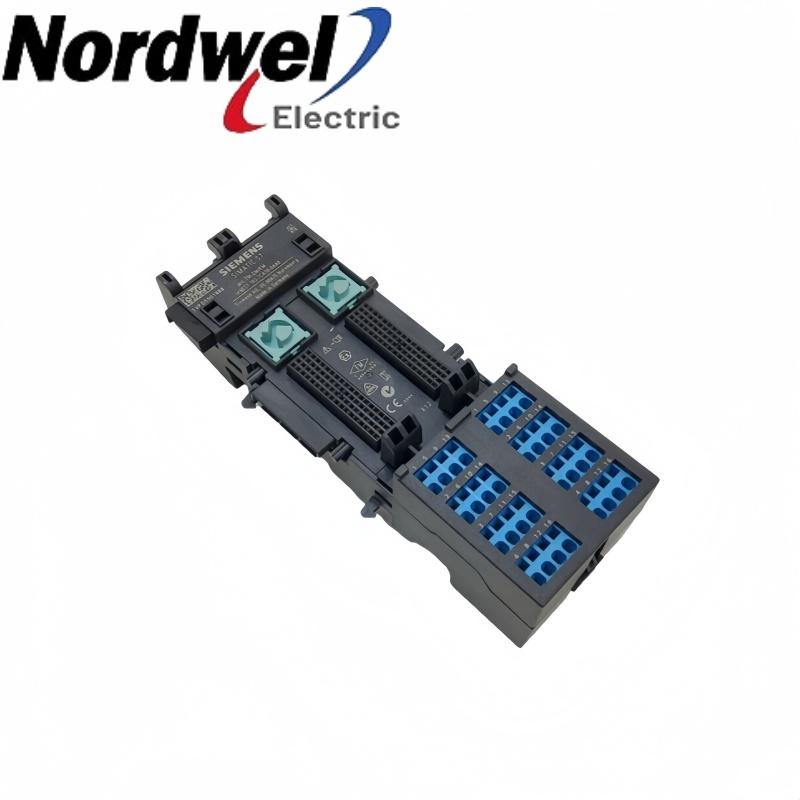

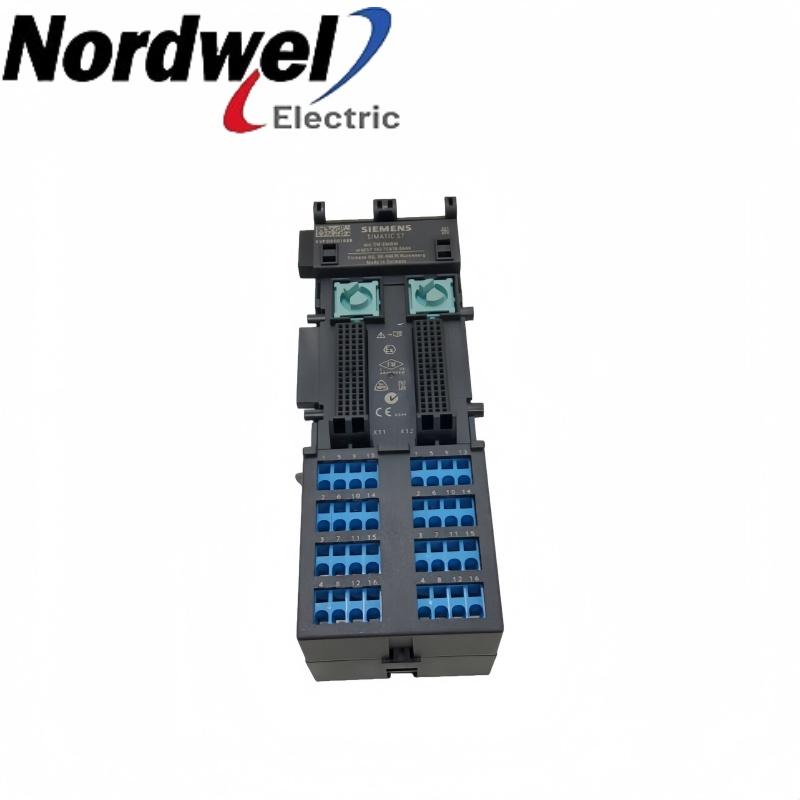

Siemens 6ES7193-7CA10-0AA0 TM-EM/EM 60C spring-terminal module product photographs

Siemens 6ES7193-7CA10-0AA0 TM-EM/EM 60C spring-terminal module

EMAIL SALES

Siemens ET 200iSP

6ES7193-7CA10-0AA0 — TM-EM/EM 60C spring-terminal module

6ES7193-7CA10-0AA0 is a Siemens TM-EM/EM 60C spring-terminal module for ET 200iSP installations. It connects field wiring through a two-position spring-terminal base.

SiemensET 200iSPSpring-terminal base

Sales managerTiffany Guan

Mobile / WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7193-7CA10-0AA0 product profile

Product familyET 200iSP

Exact model6ES7193-7CA10-0AA0

Primary roleField wiring for two electronic modules

Connection methodSpring terminals

Body W × H × D60 × 190 × 52 mm

Rail interfaceSpring contact to mounting rail

Brand:
SIEMENS
Item NO.:
6ES7193-7CA10-0AA0
Part Number:
Weight:
Dimensions:
Manufacture Year:
Place of Origin:
Certification:
Description:

Inquiry now

6ES7193-7CA10-0AA0 configuration inquiry

Get a precise quote for 6ES7193-7CA10-0AA0

Email Sales

Sales managerTiffany Guan

WhatsApp+86 18030235313

Emailsales2@mooreplc.com

6ES7193-7CA10-0AA0 functions and installation

6ES7193-7CA10-0AA0 belongs in the connection architecture of the matched ET 200iSP installation. Connects field wiring through a two-position spring-terminal base. Keep the terminal hardware, fitted electronics and field-circuit responsibilities distinct when planning a replacement.

Operating purposeConnects field wiring through a two-position spring-terminal base.

Mating arrangementUse the electronic modules assigned to this two-position station terminal arrangement.

Field-circuit planningLabel the spring-terminal conductors and identify the two fitted electronic modules.

Return to serviceVerify the restored signals against the accepted channel assignment before handover.

Installation and selection boundaries

Retain the spring-terminal connection method and field-circuit map.
Do not mix the blue terminal arrangement with black terminal modules in the station.
Specify terminal hardware and any fitted electronics or labels as separate supplied items.

Official product data

6ES7193-7CA10-0AA0 key specifications

Module designation	TM-EM/EM 60C
Module accommodation	2 electronic modules
Connection method	Spring terminals
Body width	60 mm
Body height	190 mm
Body depth	52 mm
Assembly preparation	Prewiring supported

Siemens ET 200iSP operating instructions. PDF 261–263.

Pre-order check 01

Installation environment

Prepare 6ES7193-7CA10-0AA0 with the equipment safely isolated and its existing connection record available.

Make the connected equipment safe and isolate the affected field circuits.
Label the spring-terminal conductors and identify the two fitted electronic modules.
Check terminal retention, rail contact and complete seating without forcing the mating interface.
Verify the restored signals against the accepted channel assignment before handover.

Retain the approved installation drawing and record the controlled acceptance checks.

Pre-order check 02

Compatibility confirmation

Match the complete item, actual connections and required installed function.

Matched electronics: Use the electronic modules assigned to this two-position station terminal arrangement.
Conductor termination: Retain the spring-terminal connection method and field-circuit map.
Protection arrangement: Do not mix the blue terminal arrangement with black terminal modules in the station.
Space allocation: Reserve the 60 × 190 × 52 mm body envelope plus the required access for wiring.
Accessory scope: Specify terminal hardware and any fitted electronics or labels as separate supplied items.

Approve the mating arrangement and field-circuit checks before returning the installation to service.
