The highest onboard-I/O compact serial CPU in this CRs group, delivering 36 digital inputs and 24 relay outputs without add-on I/O.
Brand:
SIEMENSItem NO.:
6ES7288-1CR60-0AA1Part Number:
6ES7288-1CR60-0AA1Weight:
620 gDimensions:
175 × 100 × 81 mmCertification:
CEDescription:

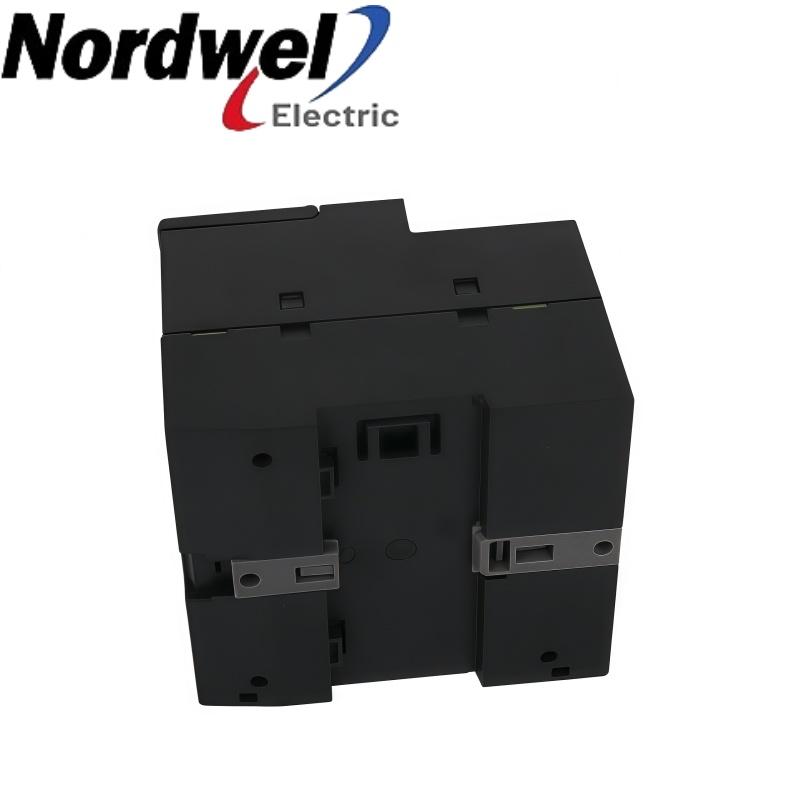

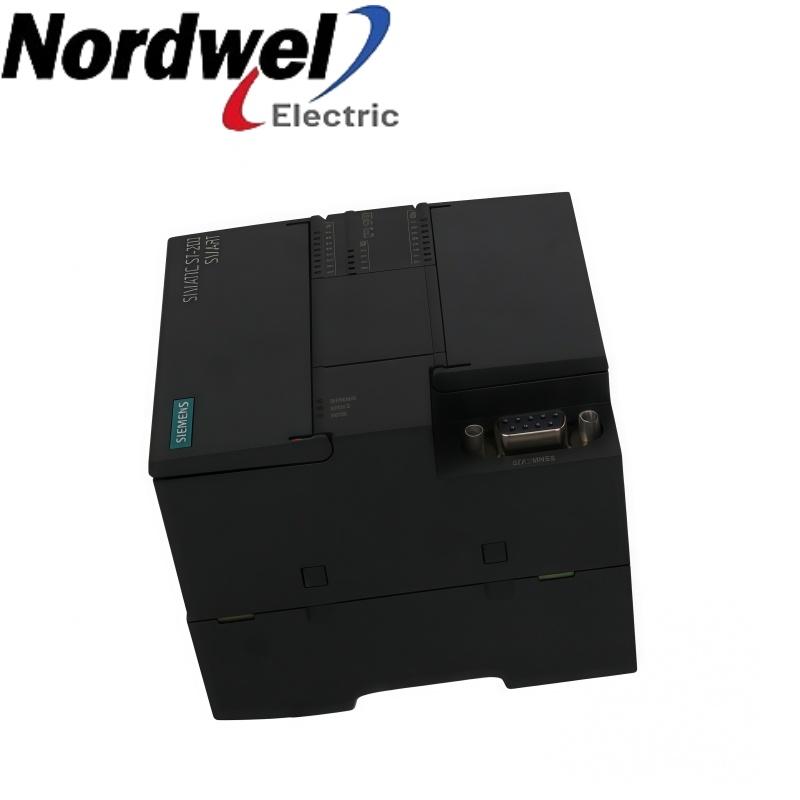

The highest onboard-I/O compact serial CPU in this CRs group, delivering 36 digital inputs and 24 relay outputs without add-on I/O.Siemens identifies 6ES7288-1CR60-0AA1 as the SIMATIC S7-200 SMART CPU CR60s (AC/DC/Relay). The highest onboard-I/O compact serial CPU in this CRs group, delivering 36 digital inputs and 24 relay outputs without add-on I/O.
SR CPUs combine AC supply, 24 V DC inputs and relay outputs across several onboard I/O sizes.
ST CPUs provide DC/DC/DC architecture for high-speed transistor-output applications.
Compact CR and CRs controllers cover fixed-I/O relay projects in multiple point counts.
Published S7-200 SMART digital and analog expansion options for compatible expandable CPUs.
Selected ABB control, I/O and measurement products already published on Nordwel.
Selected Honeywell controller, IOTA and Safety Manager products published on Nordwel.
Selected GE turbine-control, communication and I/O products published on Nordwel.
Square D belongs to Schneider Electric; these linked Schneider products are already published on Nordwel.
Selected Bently Nevada 330904 NSv proximity probes with verified Nordwel contact details.
Selected Vibro-Meter proximity and vibration sensor products published on Nordwel.
Selected Bently Nevada 330904 and 330905 NSv proximity probes with verified Nordwel contact details.
Selected Bently Nevada 330905, 330910 and 3500 system products with verified Nordwel contact details.
Use the exact Siemens order number and verify the system constraints before procurement.
Reserve capacity inside the fixed 36 DI / 24 DQ onboard allocation.
Review common-terminal current, inductive suppression and contact-life requirements for every group.
Ensure RS485—not PROFINET—is the intended machine communication path.
Allow for the documented 175 × 100 × 81 mm CPU body and Siemens mounting clearances.
Selected specialist-brand products requested for regional projects and available on Nordwel.
Auxiliary relay option for protection and control applications.
Recent Middle East inquirySIMATIC S7-200 SMART RS485 communication board.
Recent Middle East inquiryRemote I/O gateway for demanding process-system environments.
Specialist brandReplacement inverter driver board for installed industrial systems.
Specialist brandAmplifier transducer for load-cell signal conditioning.
Specialist brandIndustrial power-supply model for legacy equipment support.
Specialist brandAnswers below use Siemens official product documentation for this exact order number.
It identifies the Siemens SIMATIC S7-200 SMART CPU CR60s with AC supply, 36 digital inputs and 24 relay outputs.
Yes. Its onboard total is 60 digital points: 36 DI plus 24 DQ.
No. The CR60s fixed compact architecture does not support S7-200 SMART expansion modules or a signal board.
Siemens specifies 85–264 V AC at 47–63 Hz.
The official catalogue lists 12 KB program memory, 8 KB data memory and 2 KB retentive memory.
No onboard Ethernet interface is specified; communication is through the integrated RS485 serial port.
The listed dimensions are 175 × 100 × 81 mm and the weight is 620 g.
They are dry-contact relay outputs rated 2 A per point, not high-speed transistor pulse outputs.
