Siemens 6ES7288-1ST60-0AA1 SIMATIC S7-200 SMART CPU ST60 DC/DC/DC

Products

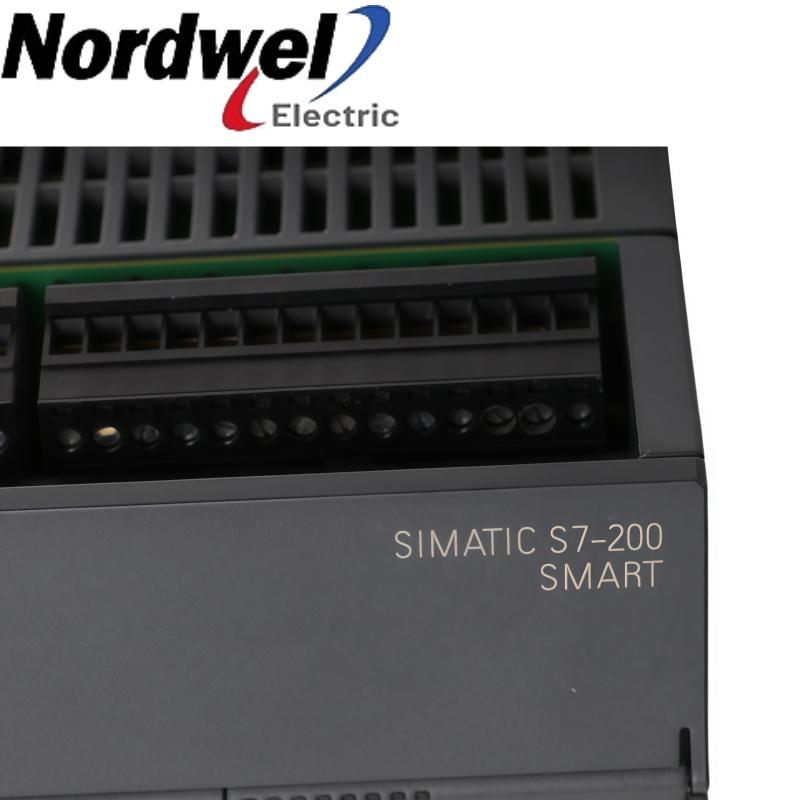

Siemens S7-200 SMART CPU ST60 60 I/O

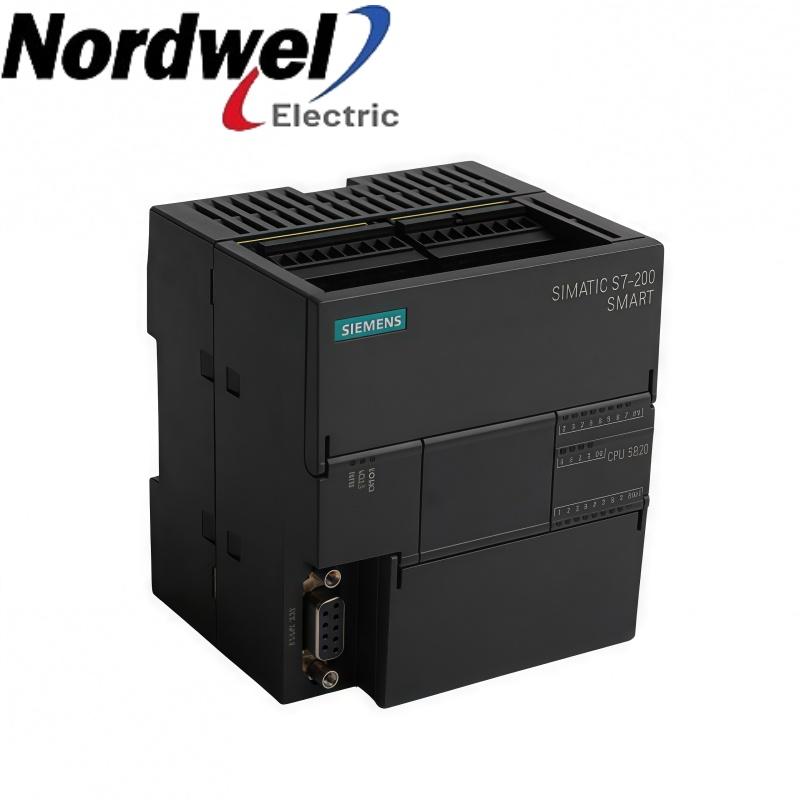

Siemens S7-200 SMART CPU ST60 60 I/O

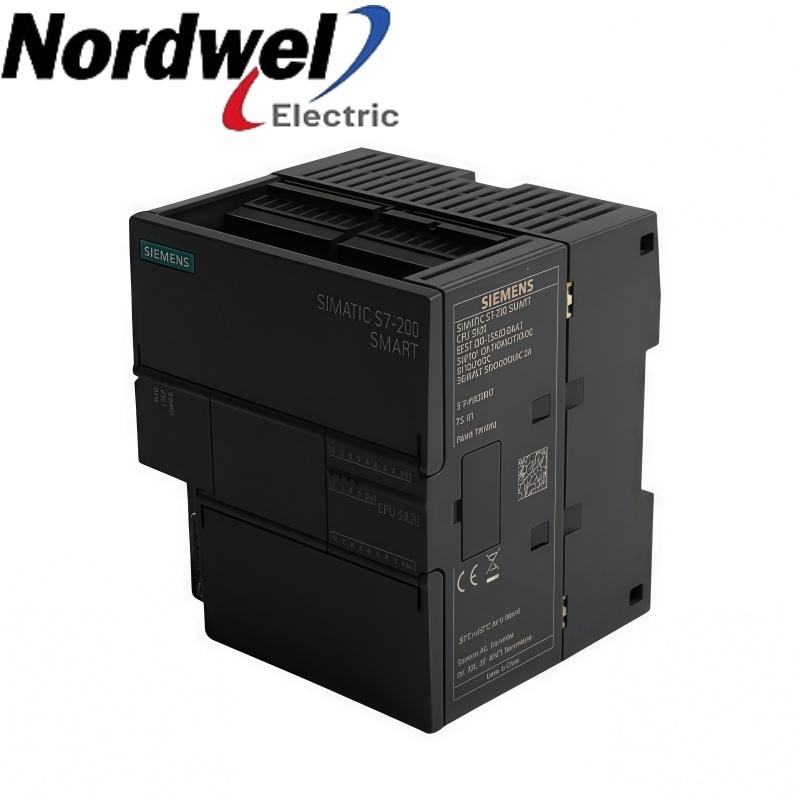

Siemens S7-200 SMART CPU ST60 60 I/O

Siemens 6ES7288-1ST60-0AA1 SIMATIC S7-200 SMART CPU ST60 DC/DC/DC

EMAIL SALES
Siemens official data verified
6ES7288-1ST60-0AA1 — CPU ST60

The largest transistor-output CPU in this set, providing 60 onboard digital points, three fast pulse outputs and 50 KB total work memory.

Standard expandable60 onboard I/O100 kHz pulse outputsEthernet + RS485
Sales managerTiffany Guan
Mobile / WhatsApp+86 18030235313
Officially verified CPU profile
Product familySIMATIC S7-200 SMART
CPU designationCPU ST60 / DC/DC/DC
Onboard digital I/O36 DI / 24 DQ
CPU memory30 KB program / 20 KB data
Expansion profileUp to 6 expansion modules plus 1 signal board
Dimensions175 × 100 × 81 mm

  • Brand:

    SIEMENS

  • Item NO.:

    6ES7288-1ST60-0AA1

  • Part Number:

    6ES7288-1ST60-0AA1

  • Dimensions:

    175 × 100 × 81 mm

  • Certification:

    Siemens EU/UK Declaration of Conformity

  • Description:

    SIMATIC S7-200 SMART CPU ST60 DC/DC/DC, 36 DI / 24 DQ
Inquiry now
6ES7288-1ST60-0AA1 configuration inquiry

Get a precise quote for Siemens CPU ST60

Email Sales
Sales managerTiffany Guan
WhatsApp+86 18030235313
Emailsales2@mooreplc.com

6ES7288-1ST60-0AA1 official identification

Siemens identifies 6ES7288-1ST60-0AA1 as the SIMATIC S7-200 SMART CPU ST60 (DC/DC/DC). The largest transistor-output CPU in this set, providing 60 onboard digital points, three fast pulse outputs and 50 KB total work memory.

Onboard I/O architecture36 digital inputs and 24 transistor digital outputs provide 60 onboard points.
Power and output design24 V DC (20.4–28.8 V DC); 24 V DC transistor, 0.5 A per output.
Memory allocation30 KB program memory plus 20 KB user data, 50 KB combined.
System architectureUp to 6 expansion modules plus 1 signal board. Integrated Ethernet and RS485; web server supported.

Verified technical facts

  • High-speed counters: 4 counters at 200 kHz plus 2 at 30 kHz in single-phase mode.
  • Pulse-output profile: 3 high-speed pulse outputs at up to 100 kHz.
  • Real-time clock with 7-day backup.
  • Mechanical dimensions: 175 × 100 × 81 mm (W × H × D).
  • Engineering environment: STEP 7 Micro/WIN SMART.
Recommended model families

More Siemens S7-200 SMART models

Standard relay CPUs6ES7288-1SR20-0AA16ES7288-1SR30-0AA16ES7288-1SR40-0AA1

SR CPUs combine AC supply, 24 V DC inputs and relay outputs across several onboard I/O sizes.

Standard transistor CPUs6ES7288-1ST20-0AA16ES7288-1ST30-0AA16ES7288-1ST40-0AA1

ST CPUs provide DC/DC/DC architecture for high-speed transistor-output applications.

Compact relay CPUs6ES7288-1CR20-0AA16ES7288-1CR30-0AA16ES7288-1CR40-0AA1

Compact CR and CRs controllers cover fixed-I/O relay projects in multiple point counts.

Expansion I/O modules6ES7288-2DE08-0AA06ES7288-2DE16-0AA06ES7288-2DR16-0AA0

Published S7-200 SMART digital and analog expansion options for compatible expandable CPUs.

Additional published brands

Additional Advantage Models

ABBABB DSTA002B / 3BSE018317R1ABB RAI02JABB 3BHE037864R0104 / UFC911 B104

Selected ABB control, I/O and measurement products already published on Nordwel.

HONEYWELLHoneywell FC-IOTA-NR24 / 51306507-175Honeywell FC-SCNTO2Honeywell FC-TSDO-04UNI

Selected Honeywell controller, IOTA and Safety Manager products published on Nordwel.

GEGE IS215VPROH2BCGE IS200VCMIH2CAA / IS215VCMIH2CAGE DS200TCQAG1BFD

Selected GE turbine-control, communication and I/O products published on Nordwel.

SQUARE D / SCHNEIDERSchneider PN072132P902 / 3D658187G901Schneider RM1-XA315Schneider XS4P18AB120

Square D belongs to Schneider Electric; these linked Schneider products are already published on Nordwel.

BENTLY NEVADA 330904Bently Nevada 330904-00-24-10-01-CNBently Nevada 330904-00-23-10-01-00Bently Nevada 330904-00-23-10-01-CN

Selected Bently Nevada 330904 NSv proximity probes with verified Nordwel contact details.

VIBRO-METERVibro-Meter AF70982 / 111-412-000-012Vibro-Meter TQ402 / 111-402-000-012Vibro-Meter S3960 AC46286 / 144-201-000-222

Selected Vibro-Meter proximity and vibration sensor products published on Nordwel.

BENTLY NEVADA 330905Bently Nevada 330904-00-22-10-01-00Bently Nevada 330905-00-03-10-01-CNBently Nevada 330905-00-04-10-01-CN

Selected Bently Nevada 330904 and 330905 NSv proximity probes with verified Nordwel contact details.

BENTLY NEVADA SYSTEMSBently Nevada 330905-00-04-10-01-00Bently Nevada 330910-00-24-10-01-CNBently Nevada 3500/22M / 288055-01

Selected Bently Nevada 330905, 330910 and 3500 system products with verified Nordwel contact details.

Every model above links to an existing Nordwel product page. Send the full part number for configuration and availability confirmation. CHECK WITH SALES

6ES7288-1ST60-0AA1 Order Guide

A specification-first checklist for the Siemens SIMATIC S7-200 SMART CPU ST60.
1Confirm the CPU familyConfirm the SIMATIC S7-200 SMART standard CPU platform.
2Verify the electrical codeVerify the DC/DC/DC electrical design and field-voltage plan.
3Count the onboard I/OCount 36 DI and 24 DQ before adding expansion I/O.
4Review expansion needsConfirm whether up to six modules and one signal board cover the design.
5Check interfaces and spaceCheck Ethernet, RS485 and 3 high-speed pulse outputs at up to 100 khz.
6Validate the article numberMatch the quotation to the complete article number 6ES7288-1ST60-0AA1.

Middle East Demand & Specialist Models

Selected specialist-brand products requested for regional projects and available on Nordwel.

Recent demand based on Nordwel inquiry records.
Confirm the exact part number before ordering.
AREVA / Protection RelayMVAJ101RA0802A

Auxiliary relay option for protection and control applications.

Recent Middle East inquiry
Hirschmann / Fiber Optic6ES7288-5CM01-0AA0

SIMATIC S7-200 SMART RS485 communication board.

Recent Middle East inquiry
Pepperl+Fuchs / Remote I/ORSD-GW3-Ex2.DPE

Remote I/O gateway for demanding process-system environments.

Specialist brand
Schneider Electric / Drive BoardPN072132P902 / 3D658187G901

Replacement inverter driver board for installed industrial systems.

Specialist brand
Load Cell Central / Signal ConditioningOM-19-2

Amplifier transducer for load-cell signal conditioning.

Specialist brand
XP Power / Power SupplyF7A4K6G2 / A1A0100275

Industrial power-supply model for legacy equipment support.

Specialist brand
Nordwel customer support

6ES7288-1ST60-0AA1 Services & FAQ

Model-specific support grounded in the Siemens identification and technical data for CPU ST60.

Company services

Exact article-number checkConfirm 6ES7288-1ST60-0AA1 rather than relying on a shortened CPU name.
Electrical configuration reviewReview supply, input and transistor output requirements before quotation.
Availability coordinationConfirm current stock, lead time, condition and warranty against current business records.
Worldwide shipping supportCoordinate destination, packing, freight option and shipment tracking.

6ES7288-1ST60-0AA1 FAQ

What exactly is Siemens 6ES7288-1ST60-0AA1?6ES7288-1ST60-0AA1 is the SIMATIC S7-200 SMART CPU ST60, identified by Siemens as DC/DC/DC with 36 onboard digital inputs and 24 onboard digital outputs.
How many onboard I/O points does 6ES7288-1ST60-0AA1 provide?6ES7288-1ST60-0AA1 provides 60 onboard digital points: 36 inputs and 24 outputs.
Which supply voltage is specified for 6ES7288-1ST60-0AA1?The Siemens specification lists 24 V DC (20.4–28.8 V DC) for 6ES7288-1ST60-0AA1.
What output technology does 6ES7288-1ST60-0AA1 use?6ES7288-1ST60-0AA1 uses 24 V DC transistor, 0.5 A per output. The connected load and protective circuit must follow the Siemens wiring requirements.
How much CPU memory is available in 6ES7288-1ST60-0AA1?It provides 30 KB of program memory and 20 KB of user data, for 50 KB combined.
Can 6ES7288-1ST60-0AA1 accept expansion modules?Up to 6 expansion modules plus 1 signal board. This is a defining selection difference for the CPU ST60.
What high-speed counting capability is documented for 6ES7288-1ST60-0AA1?Siemens documents 4 counters at 200 kHz plus 2 at 30 kHz in single-phase mode for 6ES7288-1ST60-0AA1.
Does 6ES7288-1ST60-0AA1 support high-speed pulse outputs?3 high-speed pulse outputs at up to 100 kHz.
What are the enclosure dimensions of 6ES7288-1ST60-0AA1?The CPU measures 175 × 100 × 81 mm (W × H × D).
Which communication interfaces are integrated in 6ES7288-1ST60-0AA1?The standard CPU ST60 integrates Ethernet and RS485 communication and supports the CPU web server.
Which engineering software is used with 6ES7288-1ST60-0AA1?Siemens specifies STEP 7 Micro/WIN SMART for programming and commissioning S7-200 SMART CPUs.
