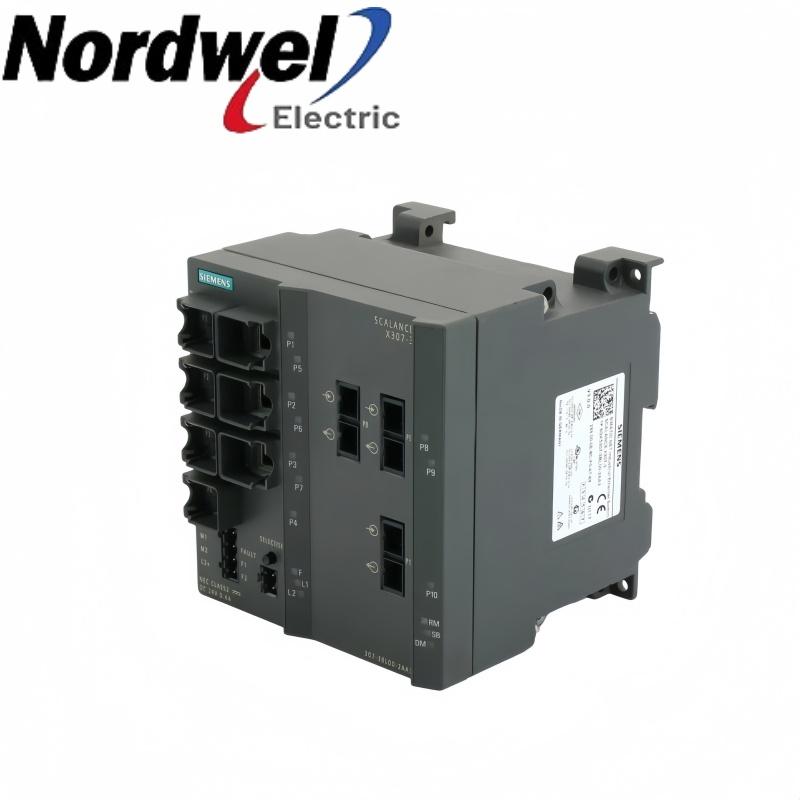

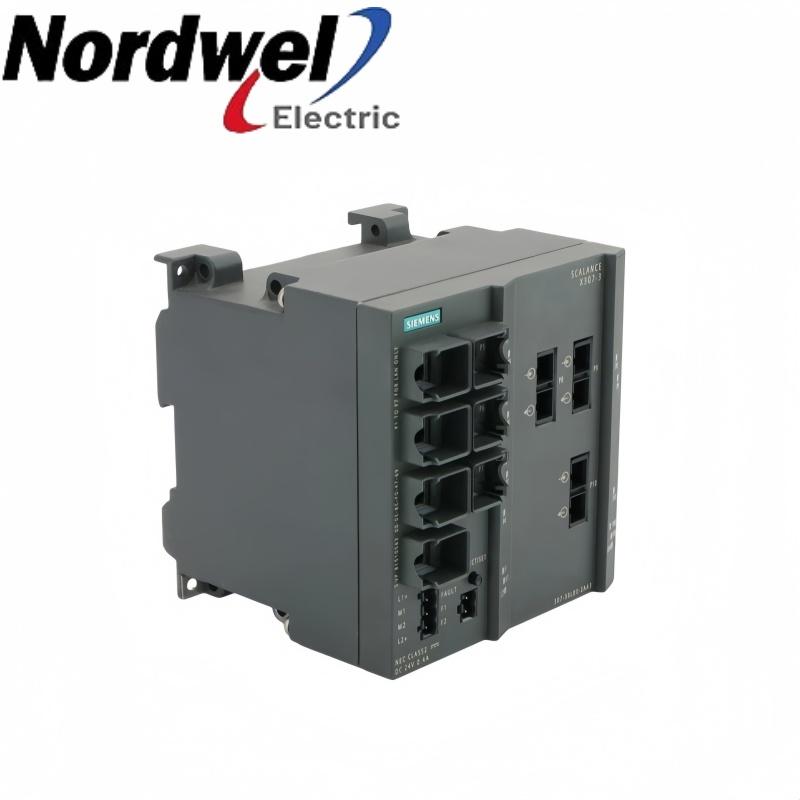

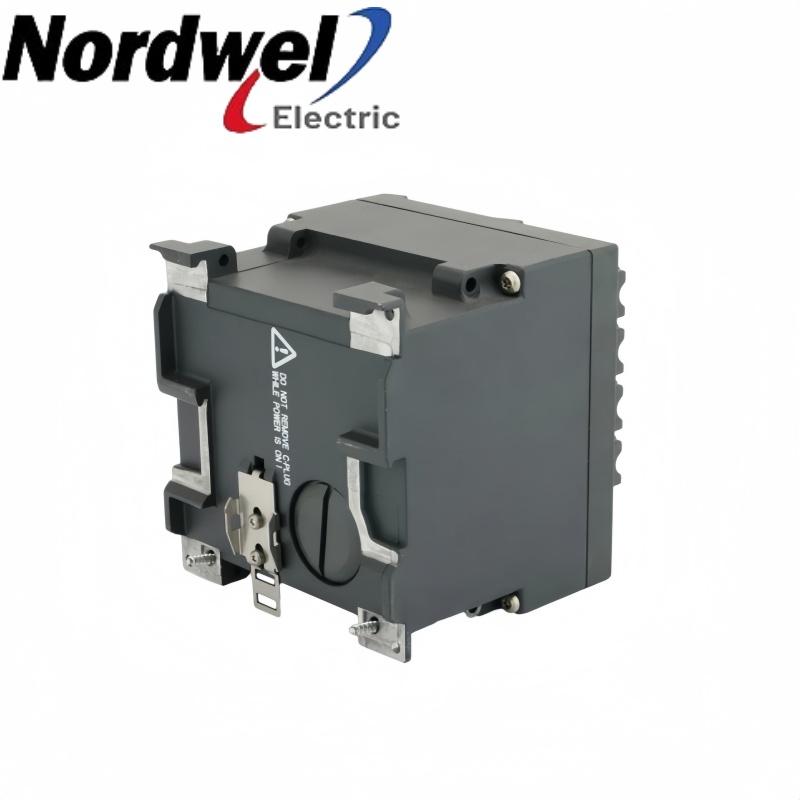

6GK5307-3BL00-2AA3 — SCALANCE X307-3 Managed Gigabit Ethernet Switch

A managed X-300 switch with three Gigabit multimode optical ports and seven Fast Ethernet copper ports for resilient industrial backbone connections.

SCALANCE X-300 managed switchesManaged multimode optical backbone and copper edge switchingExact-order review
Sales managerTiffany Guan
Mobile / WhatsApp+86 18030235313
Officially reviewed product profile
Product familySCALANCE X-300 managed switches
Exact model6GK5307-3BL00-2AA3
Verified functionManaged multimode optical backbone and copper edge switching
Interface boundaryThree 1000 Mbit/s multimode SC optical ports plus seven 10/100 Mbit/s RJ45 ports
Maximum optical reach750 m
Selection basisConfirm 750 m multimode reach, SC connector plan, copper edge count, firmware and saved management configuration.
  • Brand:

    SIEMENS
  • Item NO.:

    6GK5307-3BL00-2AA3
  • Goods Stock:

    1
  • Part Number:

    6GK5307-3BL00-2AA3
  • Weight:

    Siemens
  • Dimensions:

    SCALANCE X307-3 Managed Gigabit Ethernet Switch
  • Manufacture Year:

    SCALANCE X-300 managed switches
  • Place of Origin:

    Three 1000 Mbit/s multimode SC optical ports plus seven 10/100 Mbit/s RJ45 ports
  • Certification:

    Confirm 750 m multimode reach, SC connector plan, copper edge count, firmware and saved management configuration.
  • Description:

    A managed X-300 switch with three Gigabit multimode optical ports and seven Fast Ethernet copper ports for resilient industrial backbone connections.
6GK5307-3BL00-2AA3 configuration inquiry

Get a precise quote for 6GK5307-3BL00-2AA3

Email Sales
Sales managerTiffany Guan
WhatsApp+86 18030235313

6GK5307-3BL00-2AA3 official identification

A managed X-300 switch with three Gigabit multimode optical ports and seven Fast Ethernet copper ports for resilient industrial backbone connections.

System responsibilityManaged multimode optical backbone and copper edge switching
Connection envelopeThree 1000 Mbit/s multimode SC optical ports plus seven 10/100 Mbit/s RJ45 ports
Procurement decisionConfirm 750 m multimode reach, SC connector plan, copper edge count, firmware and saved management configuration.
Acceptance recordExact article identity, fiber-loss record, port assignment and management-access test

Engineering and installation checks

  • The controlling identity is 6GK5307-3BL00-2AA3; shortened family references are not used for release.
  • Measure and record optical attenuation on all three multimode paths before exchange.
  • Technical claims are limited to Siemens official Industrial Ethernet system manual for 6GK5307-3BL00-2AA3.
Official product data

6GK5307-3BL00-2AA3 key specifications

Switch designation SCALANCE X307-3
Optical ports 3 × 1000 Mbit/s SC
Optical medium Multimode glass fiber
Maximum optical reach 750 m
Copper ports 7 × 10/100 Mbit/s RJ45
Redundancy function Integrated manager
Management SNMP and web server
Network functions RSTP and VLAN
Configuration memory C-PLUG included
Firmware maintenance Manufacturer-supported update path
Network role Managed backbone switch

Source: Siemens official Industrial Ethernet system manual for 6GK5307-3BL00-2AA3.

Pre-order check 01

Installation environment

Prepare the scalance x307-3 managed gigabit ethernet switch by documenting optical interface, fiber distance and the actual cabinet arrangement.

  • Measure and record optical attenuation on all three multimode paths before exchange.
  • Protect cleaned SC connectors from contamination during the cabinet work.
  • Export the active management configuration and identify the installed firmware baseline.
  • Verify redundancy recovery, management login and every copper link after startup.
Close the work with exact article identity, fiber-loss record, port assignment and management-access test.
Pre-order check 02

Compatibility confirmation

Approve 6GK5307-3BL00-2AA3 only after its three 1000 mbit/s multimode sc optical ports plus seven 10/100 mbit/s rj45 ports and every listed limit match the installed design.

Optical interface
Three Gigabit multimode SC connections
Fiber distance
Up to 750 m per documented segment
Copper interface
Seven 10/100 Mbit/s RJ45 ports
Configuration transfer
C-PLUG and saved configuration handled together
Firmware control
Approved manufacturer release retained
Final selection: Use only the values published for 6GK5307-3BL00-2AA3 in Siemens official Industrial Ethernet system manual for 6GK5307-3BL00-2AA3; site suitability remains an engineering decision.
