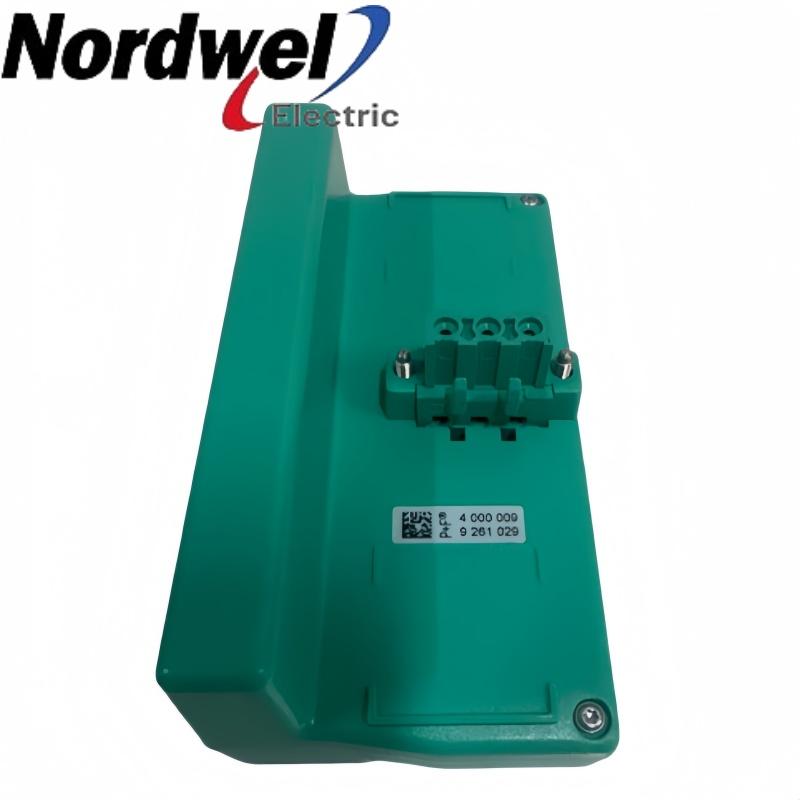

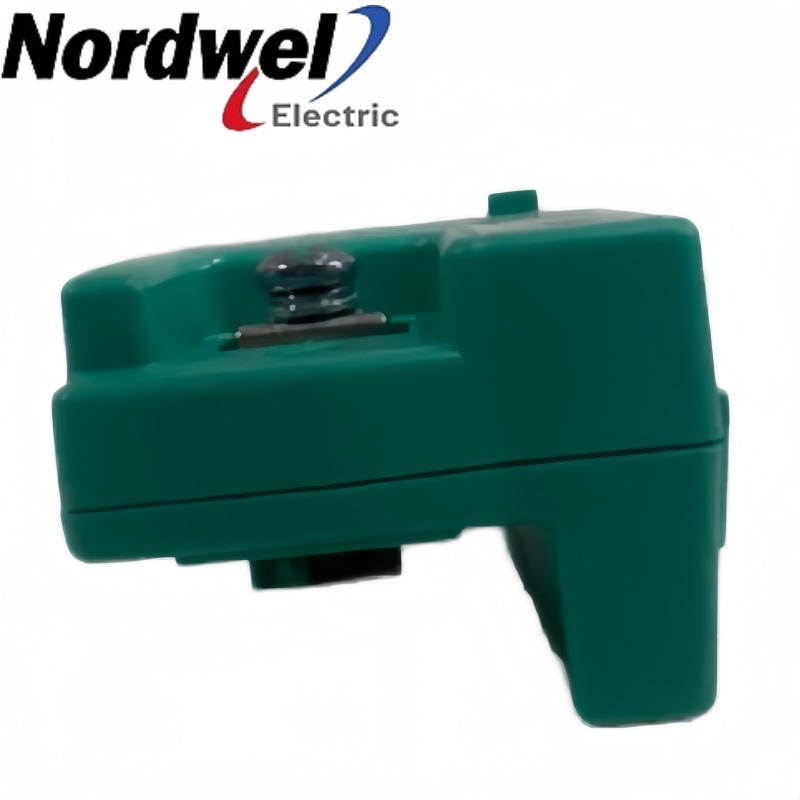

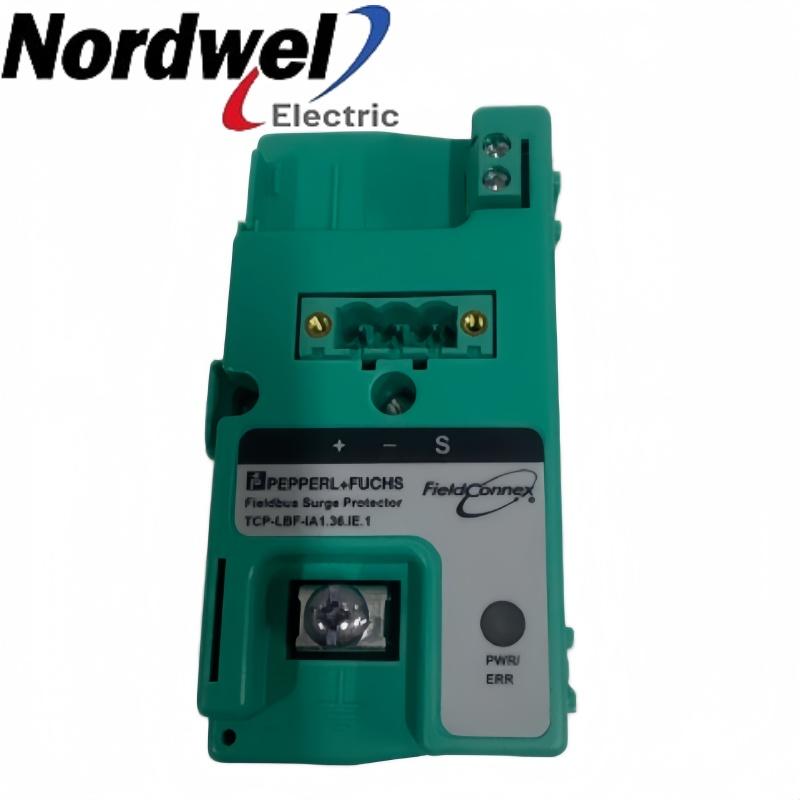

A pluggable FieldConnex surge protector for installation between a fieldbus Power Hub and trunk cable, with intrinsic-safety compatibility and LED wear diagnostics.
Brand:
OthersItem NO.:
TPH-LBF-IA1.36.DE.1Part Number:
TPH-LBF-IA1.36.DE.1Weight:
45 gDimensions:
25 × 74.8 × 51.8 mmCertification:
Official manufacturer documentation verifiedDescription:
A pluggable FieldConnex surge protector for installation between a fieldbus Power Hub and trunk cable, with intrinsic-safety compatibility and LED wear diagnostics.Pepperl+Fuchs identifies TPH-LBF-IA1.36.DE.1 as diagnostic trunk-mounted fieldbus surge protector. A pluggable FieldConnex surge protector for installation between a fieldbus Power Hub and trunk cable, with intrinsic-safety compatibility and LED wear diagnostics.
Published controller products with verified Tiffany Guan contact details.
Published Siemens field-I/O products with verified sales contacts.
Published monitoring products with verified Tiffany Guan contact details.
Additional published automation products with verified sales contacts.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
Use the exact manufacturer order number and verify the system constraints before procurement.
Specify the complete .DE.1 suffix; .DE.0 does not provide the same diagnostic function.
Verify the Power Hub, trunk and intrinsic-safety method are compatible.
Keep the segment within the 36 V, 600 mA rating and all hazardous-area entity parameters.
Follow the direct shield-grounding and M4/external rail instructions.
Include the protector self-consumption of up to 6 mA in the segment calculation.
Apply the relevant ATEX, IECEx or local approval control documentation for the installed zone.
Selected specialist-brand products requested for regional projects and available on Nordwel.
Auxiliary relay option for protection and control applications.
Recent Middle East inquirySIMATIC S7-200 SMART RS485 communication board.
Recent Middle East inquiryRemote I/O gateway for demanding process-system environments.
Specialist brandReplacement inverter driver board for installed industrial systems.
Specialist brandAmplifier transducer for load-cell signal conditioning.
Specialist brandIndustrial power-supply model for legacy equipment support.
Specialist brandAnswers below use Pepperl+Fuchs official product documentation for this exact order number.
It includes diagnostics for wear; the .DE.0 version is the non-diagnostic variant.
Between a compatible FieldConnex Power Hub and the fieldbus trunk cable.
FOUNDATION Fieldbus H1 and PROFIBUS PA.
36 V and 600 mA.
Pepperl+Fuchs specifies no more than 6 mA for the DE.1 version.
Green flashing means status OK; red flashing means maintenance is required.
Yes, subject to the applicable Ex certificate, entity/FISCO/DART design and installation rules.
25 × 74.8 × 51.8 mm and 45 g.
Software, licensing, controller, interface, shield and power-supply references.
Internal cable references for 40-channel input and output connections to field termination assemblies.
I/O Companion Slot to FTA · 2.5 m
I/O Companion Slot to FTA · 4.5 m
I/O Companion Slot to FTA · 6.5 m
I/O Companion Slot to FTA · 8.5 m
I/O Companion Slot to FTA · 10.5 m
I/O Companion Slot to FTA · 12.5 m
I/O Companion Slot to FTA · 4.5 m
I/O Companion Slot to FTA · 6.5 m
I/O Companion Slot to FTA · 8.5 m
Use the verified electrical, lifecycle and system limits—not generic family assumptions—to decide suitability.
