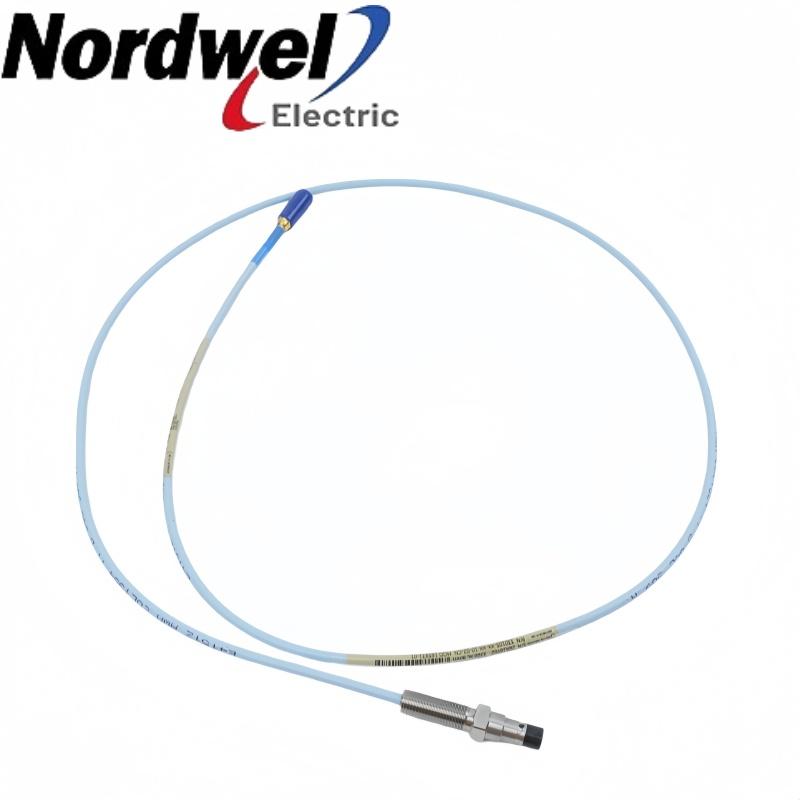

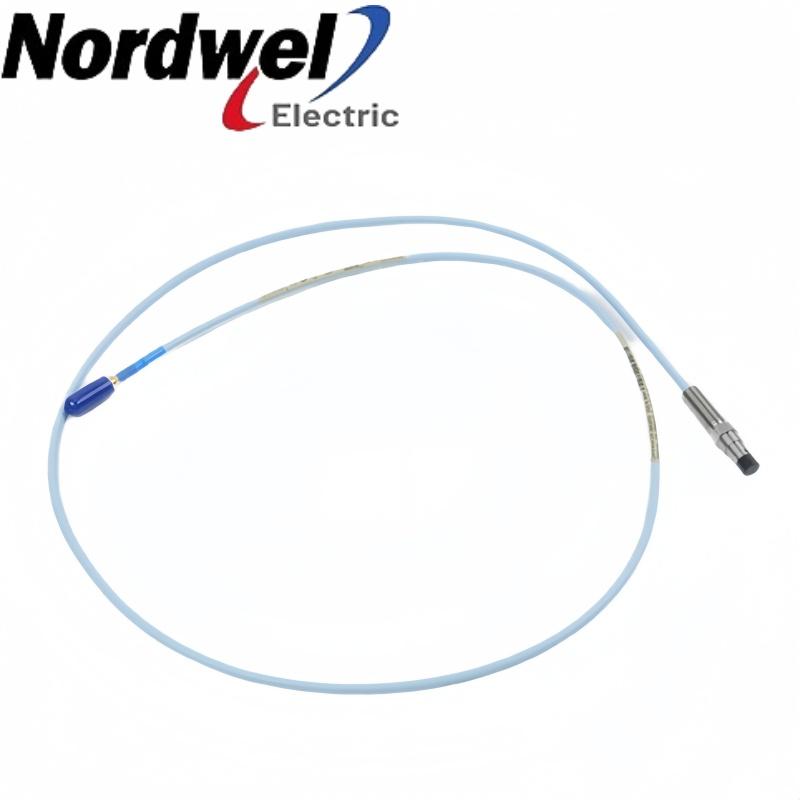

A 330171 1/4-28 UNF probe without armor whose custom case-length segments are controlled by MOD 142824-100; the standard suffix still identifies a 1.0 m lead, option 02 connector and 05 — multiple approvals.
Brand:
Bently NevadaItem NO.:
330171-XX-XX-10-02-0Goods Stock:
1Part Number:
330171-XX-XX-10-02-05 MOD:142824-100Weight:
See exact manufacturer shipment dataDimensions:
Custom MOD-controlled case; 1.0 m leadCertification:
05 — multiple approvalsDescription:
A 330171 1/4-28 UNF probe without armor whose custom case-length segments are controlled by MOD 142824-100; the standard suffix still identifies a 1.0 m lead, option 02 connector and 05 — multiple approvals.Bently Nevada identifies 330171-XX-XX-10-02-05 MOD:142824-100 as 3300 5 mm modified proximity probe. A 330171 1/4-28 UNF probe without armor whose custom case-length segments are controlled by MOD 142824-100; the standard suffix still identifies a 1.0 m lead, option 02 connector and 05 — multiple approvals.
Published controller products with verified Tiffany Guan contact details.
Published Siemens field-I/O products with verified sales contacts.
Published monitoring products with verified Tiffany Guan contact details.
Additional published automation products with verified sales contacts.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
Use the exact manufacturer order number and verify the system constraints before procurement.
Quote 330171-XX-XX-10-02-05 MOD:142824-100 exactly, including leading zeros, country suffixes and any MOD reference.
Confirm whether the order is for a probe, cable, sensor, transmitter, housing, accessory or control module.
Check thread, connector, mounting, cable length, power and field wiring against the installed drawings.
Do not mix unmatched transducer-system lengths, families, calibrations or host platforms.
Confirm the destination hazardous-area and country approval requirement from the current manufacturer record.
Provide a clear nameplate photograph and the equipment drawing with the commercial inquiry.
Selected specialist-brand products requested for regional projects and available on Nordwel.
Auxiliary relay option for protection and control applications.
Recent Middle East inquirySIMATIC S7-200 SMART RS485 communication board.
Recent Middle East inquiryRemote I/O gateway for demanding process-system environments.
Specialist brandReplacement inverter driver board for installed industrial systems.
Specialist brandAmplifier transducer for load-cell signal conditioning.
Specialist brandIndustrial power-supply model for legacy equipment support.
Specialist brandAnswers below use Bently Nevada official product documentation for this exact order number.
It identifies a 330171 5 mm probe with MOD-controlled case lengths, a 1.0 m lead, option 02 ClickLoc cable and multiple approvals.
No dimension is decoded from XX. MOD 142824-100 and the nameplate must control the custom mechanical definition.
No. The official 330171 base number is the 1/4-28 UNF version without armor.
A miniature coaxial ClickLoc connector with standard cable and no connector protector.
The complete system is documented with a 2 mm linear range and a nominal 7.87 V/mm scale factor.
Baker Hughes lists 1.27 mm for the standard matched 5 mm system.
No. The probe and extension cable lengths must add to the configured Proximitor system length.
Baker Hughes data sheet 172036 defines the family and ordering code; the approval guide confirms country-specific suffix availability.
Software, licensing, controller, interface, shield and power-supply references.
Internal cable references for 40-channel input and output connections to field termination assemblies.
I/O Companion Slot to FTA · 2.5 m
I/O Companion Slot to FTA · 4.5 m
I/O Companion Slot to FTA · 6.5 m
I/O Companion Slot to FTA · 8.5 m
I/O Companion Slot to FTA · 10.5 m
I/O Companion Slot to FTA · 12.5 m
I/O Companion Slot to FTA · 4.5 m
I/O Companion Slot to FTA · 6.5 m
I/O Companion Slot to FTA · 8.5 m
Use the verified electrical, lifecycle and system limits—not generic family assumptions—to decide suitability.
Selected legacy and specialist models for motion, sensing, pneumatic and control-system applications.
