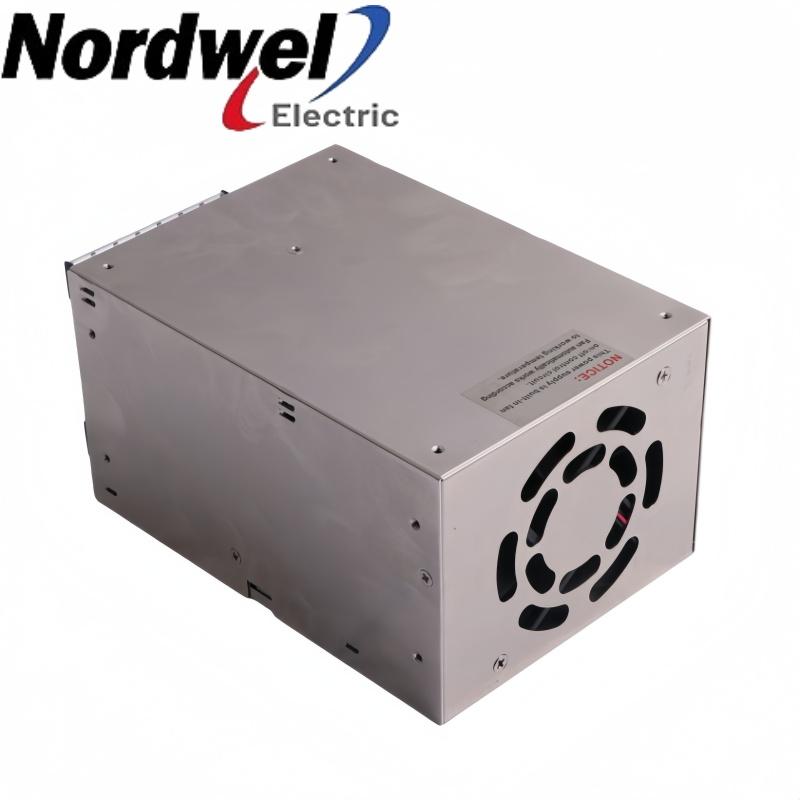

A 240 W enclosed AC/DC supply with active PFC, a 24 V nominal output, 10 A rated current and a 20–28 V adjustment range. The documented input range is 88–264 V AC or 124–370 V DC, with 87% efficiency.
Brand:
OthersItem NO.:
SP-240-24Part Number:
SP-240-24Weight:
0.8 kgDimensions:
190 × 93 × 50 mmCertification:
Official manufacturer documentation verifiedDescription:
A 240 W enclosed AC/DC supply with active PFC, a 24 V nominal output, 10 A rated current and a 20–28 V adjustment range.MEAN WELL identifies SP-240-24 as 240 W 24 V DC single-output switching power supply. A 240 W enclosed AC/DC supply with active PFC, a 24 V nominal output, 10 A rated current and a 20–28 V adjustment range.
Published controller products with verified Tiffany Guan contact details.
Published Siemens field-I/O products with verified sales contacts.
Published monitoring products with verified Tiffany Guan contact details.
Additional published automation products with verified sales contacts.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
All linked pages list Tiffany Guan, sales2@mooreplc.com and +86 18030235313.
Use the exact manufacturer order number and verify the system constraints before procurement.
Specify SP-240-24 for the 24 V, 10 A version.
Keep continuous demand, inrush and ambient derating within the official output curve.
Verify AC frequency and voltage or the permitted DC input range.
Measure and adjust the output within 20–28 V before connecting sensitive loads.
Follow the official free-air convection and temperature-derating requirements.
Size branch protection, wiring and grounding to the installation standard and supply data.
Selected specialist-brand products requested for regional projects and available on Nordwel.
Auxiliary relay option for protection and control applications.
Recent Middle East inquirySIMATIC S7-200 SMART RS485 communication board.
Recent Middle East inquiryRemote I/O gateway for demanding process-system environments.
Specialist brandReplacement inverter driver board for installed industrial systems.
Specialist brandAmplifier transducer for load-cell signal conditioning.
Specialist brandIndustrial power-supply model for legacy equipment support.
Specialist brandAnswers below use MEAN WELL official product documentation for this exact order number.
24 V DC at 10 A, for 240 W.
Yes. MEAN WELL specifies a 20–28 V adjustment range.
88–264 V AC at 47–63 Hz or 124–370 V DC.
The official specification lists 87% for the 24 V model.
Yes. It uses active power-factor correction.
At 105–135% rated output power it enters hiccup mode and recovers automatically after the fault is removed.
190 × 93 × 50 mm.
Yes. The specification describes temperature-controlled fan operation.
